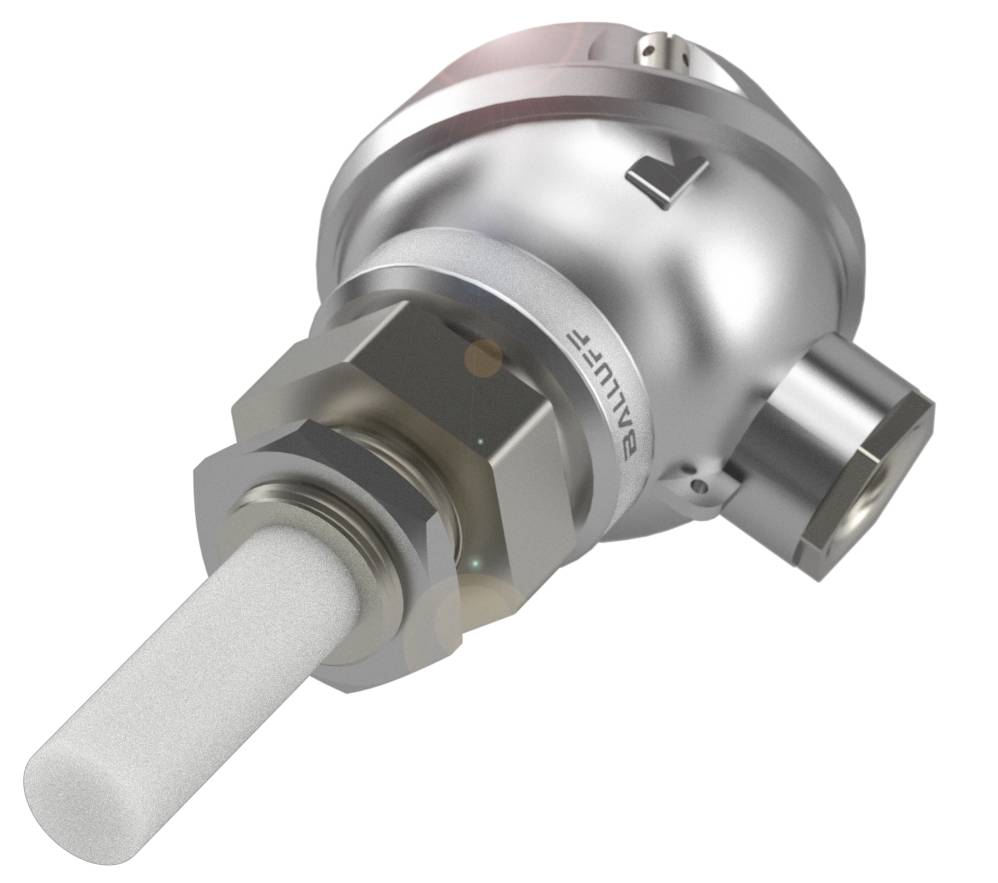

BALLUFF Capacitive sensor Capacitive BCS006H BCS006H non-shielded PNP (Ø x H) 18 mm x 48.50 mm
EAN:
Part number:
Item no:
Product type
Capacitive sensor
Max. operating voltage
35.0 V
Contact type
1 maker
Outputs
PNP
Model
Capacitive
Datasheet (PDF)
Highlights & Details
Balluff BCS006H For recording the contents of electrically conductive media (Smart level technology)
- Connection: Clamp connection
- Dimensions 54.8 x 48.5 x 106 mm
- Fitting: Non-shielded
- S01 series
- M18x1 thread (A)
Technical specifications
- Main features:Dimension 54.8 x 48.5 x 106 mm
- Active surface, material: PTFE
- Connection: Clamp connection
- S01 series
- Operating voltage Ub 10...35 VDC
- Compressive strength max. 10 bar
- Fitting: Non-shielded
- Housing material: Stainless steel (1.4305), connection thread
- M18x1 thread (A)
- Switching output: PNP NO
- Switching frequency 5 Hz
- Protection class IP67
- Sensitivity: Media-dependent adjustment
- Ambient temperature -30...125 °C
- Additional features:
- Scope of delivery: Nut|screwdriver|quick start guide
- Dimensions 54.8 x 48.5 x 106 mm
- Operating voltage display: No.
- Function display: Yes
- Rated operating voltage Ue DC 24 V
- Rated operating current Ie 100 mA
- Rated insulation voltage UI 75 V DC
- Standby delay TV max.: 300 ms
- Operating voltage Ub 10...35 VDC
- Usage category: DC-13
- Load capacity max. at Ue 10 µF
- Residual current l max. 200 µA
- Residual ripple max. (% of Ue): 10%
- Switching frequency 5 Hz
- Static voltage drop: 2.7 V
- Short-circuit protection: Yes
- Reverse polarity protection: Yes
- Exchange possibility protected: Yes
- MTTF (40 °C) 873 a
- Active surface, material: PTFE
- Tightening torque 1.5 Nm
- Fitting: Non-shielded
- Switching output: PNP NO
- Housing material: Stainless steel (1.4305),|Connection thread
- Protection class IP67, active surface: IP68 10 bar
- Ambient temperature -30...125 °C
- Pollution level: 2
- S01 series
- Idle current IO max. at Ue 15 mA
- Sensitivity: Media-dependent adjustment
- Cover material: Aluminium, die-cast
- Compressive strength max. 10 bar
- Thread (A) Interface: M18x1
- Product type
Capacitive sensor
- Type
BCS006H
- Min. operating voltage
10.0 V
- Max. operating voltage
35.0 V
- Operating voltage
10.0 - 35.0 V
- Contact type
1 maker
- Outputs
PNP
- Enclosure material
Stainless steel
- Model
Capacitive
- Material properties
rust-proof
- Installation type
non-shielded
- Connector
Clip
- Min. temperature
-30 °C
- Max. temperature
125 °C
IP67
- Length
106.00 mm
- Width
54.80 mm
- Height
48.50 mm
- (Ø)
18 mm
- Dim
(Ø x H) 18 mm x 48.50 mm
- Content
1 pc(s)
- Nominal voltage
35.0 V
- Operating voltage
24 V DC
- Switching frequency
5 Hz
- Operating current
100 mA
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3417425 BALLUFF Capacitive sensor Capacitive BCS006H BCS006H non-shielded PNP (Ø x H) 18 mm x 48.50 mm
User & Safety Instructions
User & Safety Instructions 3417425 BALLUFF Capacitive sensor Capacitive BCS006H BCS006H non-shielded PNP (Ø x H) 18 mm x 48.50 mm
Description
We carry capacitive sensors especially for high technical requirements as well as high temperatures and pressures. As capacitive adhesive sensors, they adapt particularly easily and flexibly to the surface to be attached. Its stainless steel and Teflon housing makes it Ideal for use in difficult environments. They have a wide operating voltage and are available in particularly small designs. Dimension=54.8 x 48.5 x 106 mm, series=S01, thread (A)=M18x1, installation=not flush, connection=clamp connection, Switch output = PNP NO (NO), switching frequency = 5 Hz, sensitivity = adjustable according to media, housing material = stainless steel (1.4305), active surface, Material=PTFE, ambient temperature=-30...125 °C, compressive strength max.=10 bar, operating voltage Ub=10...35 VDC, approval/conformity=CEWEEE, Protection class=IP67
