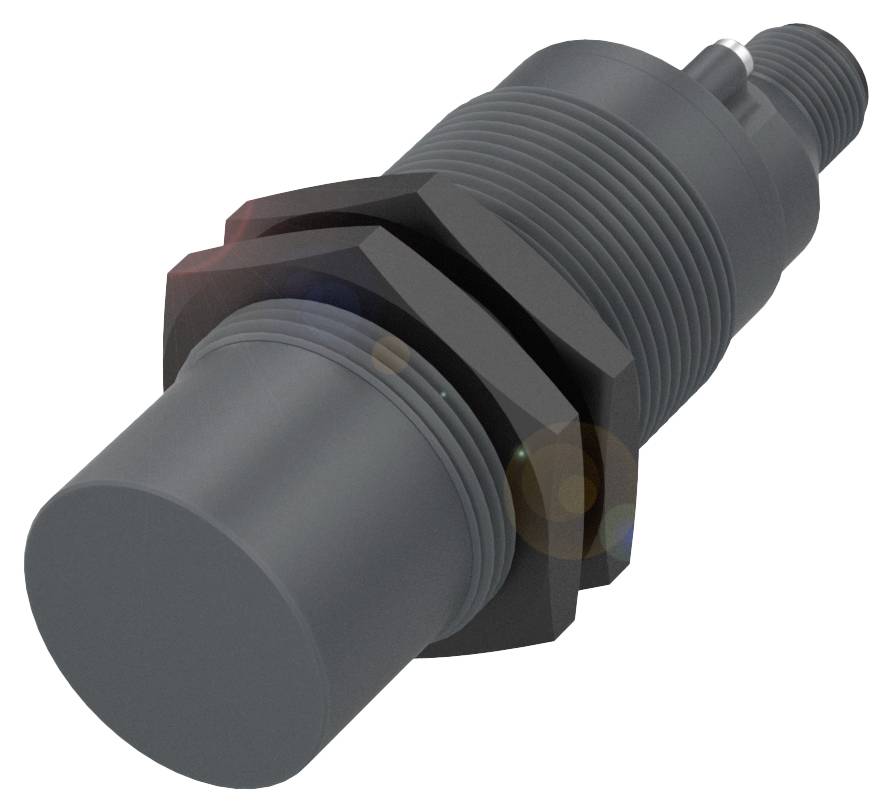

BALLUFF Capacitive sensor Capacitive BCS007F BCS007F M30 non-shielded PNP (Ø x H) 30 mm x 87 m
EAN:
Part number:
Item no:
Product type
Capacitive sensor
Max. operating voltage
35.0 V
Outputs
PNP
Model
Capacitive
Connector
Plug
Datasheet (PDF)
Highlights & Details
Balluff BCS007F Cylindrical design with M30 thread
- Connection: Connector, M12x1 connector, 4-pin
- Dimensions: Ø 30 x 87 mm
- Fitting: Non-shielded
- Switching output: PNP NO/NC (NO/NC) can be programmed
- Series M30
Technical specifications
- Main features:Dimensions: Ø 30 x 87 mm
- Active surface, material: PBT
- Connection: Connector, M12x1 connector, 4-pin
- Series M30
- Operating voltage Ub 10...35 VDC
- Fitting: Non-shielded
- PBT casing material
- Switching output: PNP NO/NC (NO/NC) can be programmed
- Switching frequency 100 Hz
- IP66 protection rating
- Sensitivity: Adjustable switching distance
- Ambient temperature -30...70 °C
- Additional features:
- Supplied with nut (2x)
- Dimensions: Ø 30 x 87 mm
- Operating voltage display: Yes
- Function display: Yes
- Rated operating current Ie 300 mA
- Rated insulation voltage UI 75 V DC
- Operating voltage Ub 10...35 VDC
- Usage category: DC-13
- Residual ripple max. (% of Ue): 10%
- Switching frequency 100 Hz
- Static voltage drop: 1.8 V
- Connection: M12x1 4-pin connector, A-coded
- Short-circuit protection: Yes
- Reverse polarity protection: Yes
- Exchange possibility protected: Yes
- Hysteresis H max. (% of Sr): 15.0%
- Rated switching distance Sn: 30 mm
- Temperature drift max. (% of Sr): 15%
- Repeatability max. (% of Sr): 5.0%
- MTTF (40 °C) 455 a
- Active surface, material: PBT
- Tightening torque 4 Nm
- Size M30x1.5
- Fitting: Non-shielded
- Switching output PNP NO/NC
- PBT casing material
- IP66, IP64 at the plug output
- Ambient temperature -30...70 °C
- Number of pins: 4
- Series M30
- Idle current IO max. at Ue 18 mA
- Sensitivity: Adjustable switching distance
- Measurement range 1...30 mm
- Cover material PBT|PE
- Thread (A) M30x1.5
- Product type
Capacitive sensor
- Type
BCS007F
- Min. operating voltage
10.0 V
- Max. operating voltage
35.0 V
- Operating voltage
10.0 - 35.0 V
- Outputs
PNP
- Switching frequency
100 Hz
- Model
Capacitive
- Connector
Plug
- Installation type
non-shielded
- Size
M30
- Enclosure material
PBT
IP66
- Min. temperature
-30 °C
- Max. temperature
70 °C
- Length
87.00 mm
- Width
87 mm
- Height
87 m
- (Ø)
30 mm
- Dim
(Ø x H) 30 mm x 87 m
- Nominal voltage
35.0 V
- Operating current
300 mA
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3417470 BALLUFF Capacitive sensor Capacitive BCS007F BCS007F M30 non-shielded PNP (Ø x H) 30 mm x 87 m
User & Safety Instructions
User & Safety Instructions 3417470 BALLUFF Capacitive sensor Capacitive BCS007F BCS007F M30 non-shielded PNP (Ø x H) 30 mm x 87 m
Description
These capacitive sensors for level detection detect with their active surface the product, bulk material or liquids to be scanned in contact with the medium. Its spherical electrical field effectively compensates for adhesion to the active surface of the sensor. Dimension=Ø 30 x 87 mm, series=M30, thread (A)=M30x1.5, install=not flush, connection=plug connector, M12x1 plug, 4-pin, switching output=PNP NO/NC programmable, switching frequency=100 Hz, range=1...30 mm, sensitivity=switching distance adjustable, housing material=PBT, Active surface, material=PBT, ambient temperature=-30...70 °C, operating voltage Ub=10...35 VDC, approval/conformity=CecULusWEEE, Protection class=IP66
