BALLUFF Capacitive sensor Capacitive BCS0086 BCS0086 M30 non-shielded PNP (Ø x H) 30 mm x 72 m
EAN:
Part number:
Item no:
Product type
Capacitive sensor
Max. operating voltage
35.0 V
Outputs
PNP
Model
Capacitive
Connector
Cable
Datasheet (PDF)
Highlights & Details

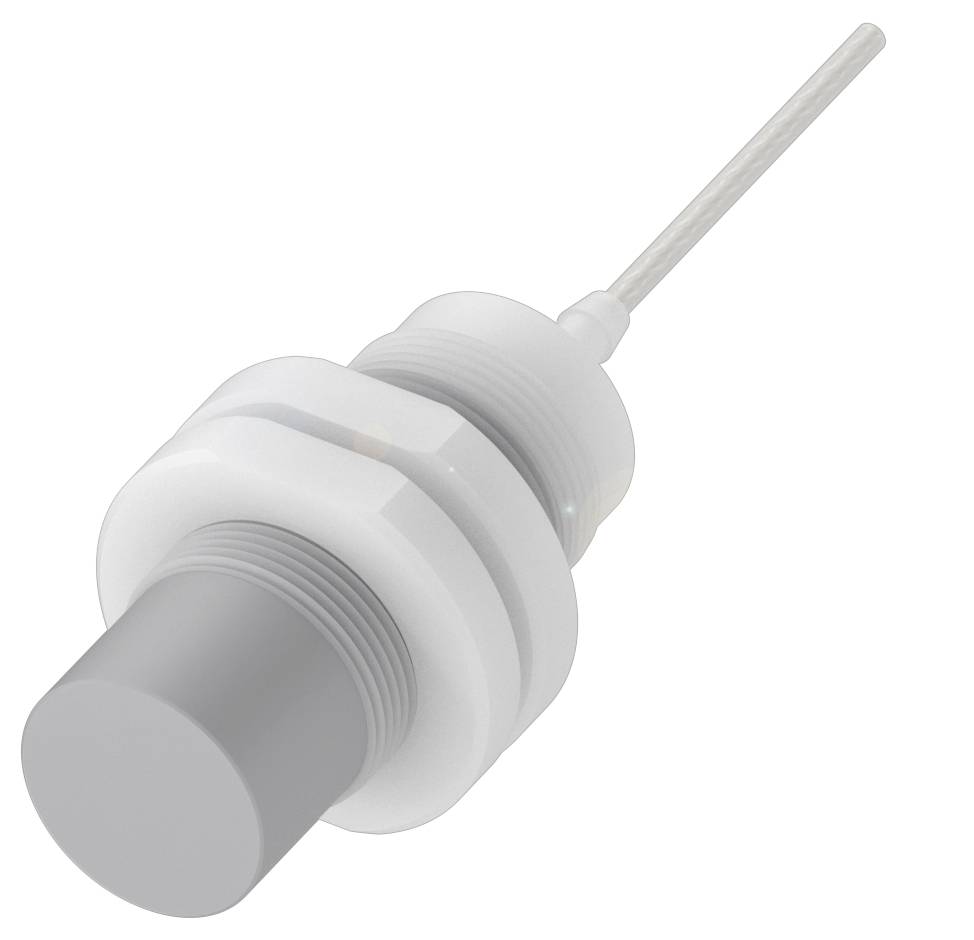

Balluff BCS0086 Cylindrical version with M30 thread
- Connection: Cable, 2.00 m, PTFE
- Dimensions: Ø 30 x 72 mm
- Fitting: Non-shielded
- Switching output: PNP NO
- Series M30
Technical specifications
- Main features:Dimensions: Ø 30 x 72 mm
- Active surface, material: PTFE
- Connection: Cable, 2.00 m, PTFE
- Series M30
- Operating voltage Ub 10...35 VDC
- Fitting: Non-shielded
- Smart level 15 function
- Case material PTFE
- Switching output: PNP NO
- Switching frequency 2 Hz
- Protection class IP67
- Sensitivity: Media-dependent adjustment
- Ambient temperature -10...60 °C
- Additional properties: Electrically conductive media
- Foam- and adhesion compensation
- Additional features:
- Supplied with nut (2x)
- Dimensions: Ø 30 x 72 mm
- Rated operating current Ie 300 mA
- Rated insulation voltage UI 75 V DC
- Operating voltage Ub 10...35 VDC
- Usage category: DC-13
- Residual ripple max. (% of Ue): 10%
- Switching frequency 2 Hz
- Static voltage drop: 1.8 V
- Short-circuit protection: Yes
- Reverse polarity protection: Yes
- Exchange possibility protected: Yes
- MTTF (40 °C) 221 a
- Active surface, material: PTFE
- Tightening torque 2 Nm
- Size M30x1.5
- Fitting: Non-shielded
- Switching output: PNP NO
- Cable length 2 m
- Case material PTFE
- Sheath material:PTFE
- Protection class IP67
- Ambient temperature -10...60 °C
- Number of conductors: 3
- Conductor cross-section: 0.20 mm²
- Series M30
- Additional properties: Electrically conductive media|Foam and|adhesion compensation
- Sensitivity: Media-dependent adjustment
- Cover material PTFE
- Thread (A) M30x1.5
- Product type
Capacitive sensor
- Type
BCS0086
- Min. operating voltage
10.0 V
- Max. operating voltage
35.0 V
- Operating voltage
10.0 - 35.0 V
- Outputs
PNP
- Cable length
2.00 m
- Switching frequency
2 Hz
- Model
Capacitive
- Connector
Cable
- Installation type
non-shielded
- Size
M30
- Enclosure material
PTFE
- Contact type
1 maker
IP67
- Min. temperature
-10 °C
- Max. temperature
60 °C
- Length
72.00 mm
- Width
72 mm
- Height
72 m
- (Ø)
30 mm
- Dim
(Ø x H) 30 mm x 72 m
- Jacket material
PTFE
- Nominal voltage
35.0 V
- Operating current
300 mA
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3417350 BALLUFF Capacitive sensor Capacitive BCS0086 BCS0086 M30 non-shielded PNP (Ø x H) 30 mm x 72 m
User & Safety Instructions
User & Safety Instructions 3417350 BALLUFF Capacitive sensor Capacitive BCS0086 BCS0086 M30 non-shielded PNP (Ø x H) 30 mm x 72 m
Description
These capacitive sensors for level detection detect with their active surface the product, bulk material or liquids to be scanned in contact with the medium. Its spherical electrical field effectively compensates for adhesion to the active surface of the sensor. Dimension=Ø 30 x 72 mm, series=M30, thread (A)=M30x1.5, install=not flush, connection=cable, 2.00 m, PTFE, switching output=PNP NO (NO), switching frequency=2 Hz, sensitivity=media-dependent adjustable, Function=Smart level 15, Additional properties=electrically conductive media foam and adhesion compensation, housing material=PTFE, active surface, material=PTFE, ambient temperature=-10...60 °C, Operating voltage Ub=10...35 VDC, approval/conformity=CecULusWEEE, protection class=IP67
