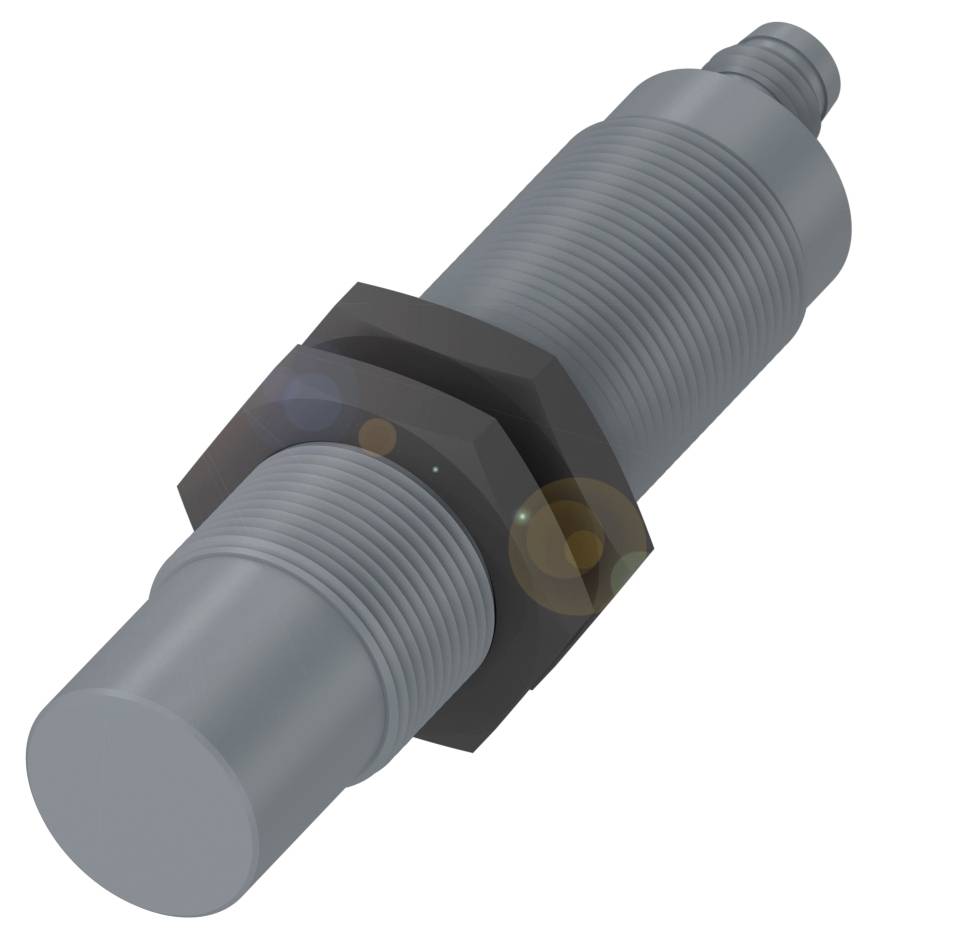

BALLUFF Capacitive sensor Capacitive BCS008U BCS008U M18 non-shielded PNP (Ø x L) 18 mm x 70.00 mm
EAN:
Part number:
Item no:
Product type
Capacitive sensor
Max. operating voltage
35.0 V
Outputs
PNP
Model
Capacitive
Connector
M18
Datasheet (PDF)
Highlights & Details
Balluff BCS008U Cylindrical version with M18 thread
- Connection: Plug connector, M8x1 plug, 3-pin
- Dimensions: Ø 18 x 70 mm
- Fitting: Non-shielded
- Switching output: PNP NC
- M18 series
Technical specifications
- Main features:Dimensions: Ø 18 x 70 mm
- Active surface, material: PVC
- Connection: Plug connector, M8x1 plug, 3-pin
- M18 series
- Operating voltage Ub 10...35 VDC
- Fitting: Non-shielded
- Smart level 15 function
- Housing material: PVC
- Switching output: PNP NC
- Switching frequency 2 Hz
- IP66 protection rating
- Sensitivity: Media-dependent adjustment
- Ambient temperature -10...60 °C
- Additional properties: Electrically conductive media
- Foam- and adhesion compensation
- Additional features:
- Supplied with nut (2x)
- Dimensions: Ø 18 x 70 mm
- Rated operating current Ie 300 mA
- Rated insulation voltage UI 75 V DC
- Standby delay TV max.: 300 ms
- Operating voltage Ub 10...35 VDC
- Usage category: DC-13
- Residual ripple max. (% of Ue): 10%
- Switching frequency 2 Hz
- Static voltage drop: 1.8 V
- M8x1 connection, 3-pin
- Short-circuit protection: Yes
- Reverse polarity protection: Yes
- Exchange possibility protected: Yes
- MTTF (40 °C) 239 a
- Active surface, material: PVC
- Housing material Mechanical characteristics: PVC
- Tightening torque 1 Nm
- Size M18x1
- Fitting: Non-shielded
- Switching output: PNP NC
- IP66, IP64 at the plug output
- Ambient temperature -10...60 °C
- Number of pins: 3
- M18 series
- Additional properties: Electrically conductive media|Foam and|adhesion compensation
- Sensitivity: Media-dependent adjustment
- Cover material PVC
- M18x1 thread (A)
- Product type
Capacitive sensor
- Type
BCS008U
- Min. operating voltage
10.0 V
- Max. operating voltage
35.0 V
- Operating voltage
10.0 - 35.0 V
- Outputs
PNP
- Switching frequency
2 Hz
- Model
Capacitive
- Connector
M18
- Installation type
non-shielded
- Size
M18
- Enclosure material
PVC
- Contact type
1 breaker
IP66
- Min. temperature
-10 °C
- Max. temperature
60 °C
- Length
70.00 mm
- Width
70 mm
- (Ø)
18 mm
- Dim
(Ø x L) 18 mm x 70.00 mm
- Nominal voltage
35.0 V
- Operating current
300 mA
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3417408 BALLUFF Capacitive sensor Capacitive BCS008U BCS008U M18 non-shielded PNP (Ø x L) 18 mm x 70.00 mm
User & Safety Instructions
User & Safety Instructions 3417408 BALLUFF Capacitive sensor Capacitive BCS008U BCS008U M18 non-shielded PNP (Ø x L) 18 mm x 70.00 mm
Description
These capacitive sensors for level detection detect with their active surface the product, bulk material or liquids to be scanned in contact with the medium. Its spherical electrical field effectively compensates for adhesion to the active surface of the sensor. Dimensions=Ø 18 x 70 mm, series=M18, thread (A)=M18x1, installed=not flush, connection=plug connector, M8x1 plug, 3-pin, switching output=PNP NC, switching frequency=2 Hz, sensitivity=media-dependent adjustable, Function = Smart level 15, additional properties = electrically conductive media foam and adhesion compensation, housing material = PVC, active surface, material = PVC, ambient temperature = 10...60 °C, Operating voltage Ub=10...35 VDC, approval/conformity=CecULusWEEE, protection class=IP66
