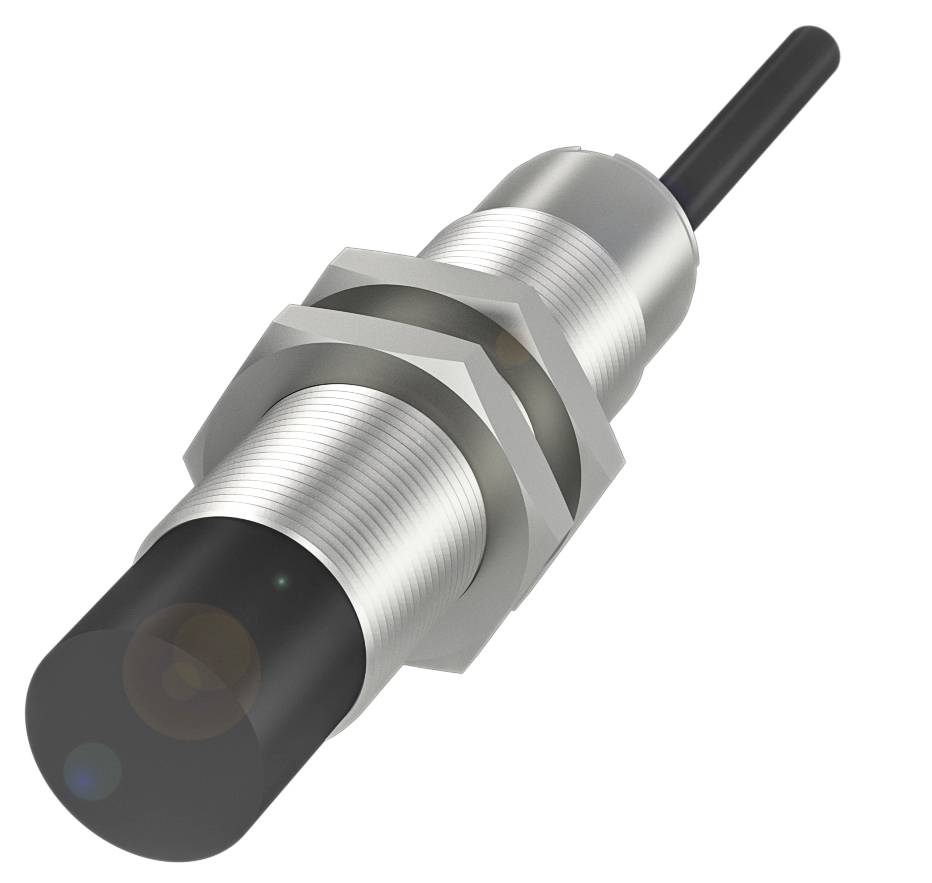

BALLUFF Capacitive sensor Capacitive BCS00MA BCS00MA M18 non-shielded NPN (Ø x H) 18 mm x 75.5 m
EAN:
Part number:
Item no:
Product type
Capacitive sensor
Max. operating voltage
30.0 V
Outputs
NPN
Model
Capacitive
Connector
M18
Datasheet (PDF)
Highlights & Details
Balluff BCS00MA Cylindrical version with M18 thread
- Connection: Cable, 2.00 m, PUR
- Dimensions: Ø 18 x 75.5 mm
- Fitting: Non-shielded
- Switching output: NPN no (NO)
- M18 series
Technical specifications
- Main features:Dimensions: Ø 18 x 75.5 mm
- Active surface, material: PBT
- Connection: Cable, 2.00 m, PUR
- M18 series
- Operating voltage Ub 10...30 VDC
- Fitting: Non-shielded
- Housing material: Stainless steel (1.4305)
- Switching output: NPN no (NO)
- Switching frequency 100 Hz
- Protection class IP67
- Sensitivity: Adjustable switching distance
- Ambient temperature: -25 to 85 °C
- Additional features:
- Supplied with nut (2x)
- Dimensions: Ø 18 x 75.5 mm
- Operating voltage display: Yes
- Function display: Yes
- Rated operating voltage Ue DC 24 V
- Rated operating current Ie 100 mA
- Rated insulation voltage UI 75 V DC
- Standby delay TV max.: 300 ms
- Operating voltage Ub 10...30 VDC
- Usage category: DC-13
- Residual ripple max. (% of Ue): 10%
- Switching frequency 100 Hz
- Static voltage drop: 1.5 V
- Short-circuit protection: Yes
- Reverse polarity protection: Yes
- Option to switch, protected: No.
- Hysteresis H max. (% of Sr): 15.0%
- Rated switching distance Sn: 15 mm
- Temperature drift max. (% of Sr): 20 % [-5…55 °C]
- Repeatability max. (% of Sr): 2.0%
- MTTF (40 °C) 226 a
- Active surface, material: PBT
- Tightening torque 60 Nm
- Size M18x1
- Fitting: Non-shielded
- Switching output: NPN no (NO)
- Cable diameter D 4.60 mm
- Cable length 2 m
- Housing material: Stainless steel (1.4305)
- Sheath material: PUR
- Protection class IP67
- Ambient temperature: -25 to 85 °C
- Number of conductors: 3
- Conductor cross-section: 0.34 mm²
- Brand: Global
- M18 series
- Idle current IO max. at Ue 20 mA
- Sensitivity: Adjustable switching distance
- Measurement range 2...15 mm
- Cover material PA
- M18x1 thread (A)
- Product type
Capacitive sensor
- Type
BCS00MA
- Min. operating voltage
10.0 V
- Max. operating voltage
30.0 V
- Operating voltage
10.0 - 30.0 V
- Outputs
NPN
- Cable length
2.00 m
- Switching frequency
100 Hz
- Model
Capacitive
- Connector
M18
- Installation type
non-shielded
- Size
M18
- Enclosure material
Stainless steel
- Contact type
1 maker
IP67
- Min. temperature
-25 °C
- Max. temperature
85 °C
- Length
75.50 mm
- Width
75.5 mm
- Height
75.5 m
- (Ø)
18 mm
- Dim
(Ø x H) 18 mm x 75.5 m
- Jacket material
PUR
- Nominal voltage
30.0 V
- Operating voltage
24 V DC
- Operating current
100 mA
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3417354 BALLUFF Capacitive sensor Capacitive BCS00MA BCS00MA M18 non-shielded NPN (Ø x H) 18 mm x 75.5 m
User & Safety Instructions
User & Safety Instructions 3417354 BALLUFF Capacitive sensor Capacitive BCS00MA BCS00MA M18 non-shielded NPN (Ø x H) 18 mm x 75.5 m
Description
These capacitive sensors for level detection detect with their active surface the product, bulk material or liquids to be scanned in contact with the medium. Its spherical electrical field effectively compensates for adhesion to the active surface of the sensor. Dimensions=Ø 18 x 75.5 mm, series=M18, thread (A)=M18x1, installation=not flush, connection=cable, 2.00 m, PUR, switching output=NPN NO contact (NO), switching frequency=100 Hz, range=2...15 mm, Sensitivity = adjustable switching distance, case material = stainless steel (1.4305), active surface, material = PBT, ambient temperature = 25...85 °C, Operating voltage Ub=10...30 VDC, approval/conformity=CecULusWEEE, protection class=IP67
