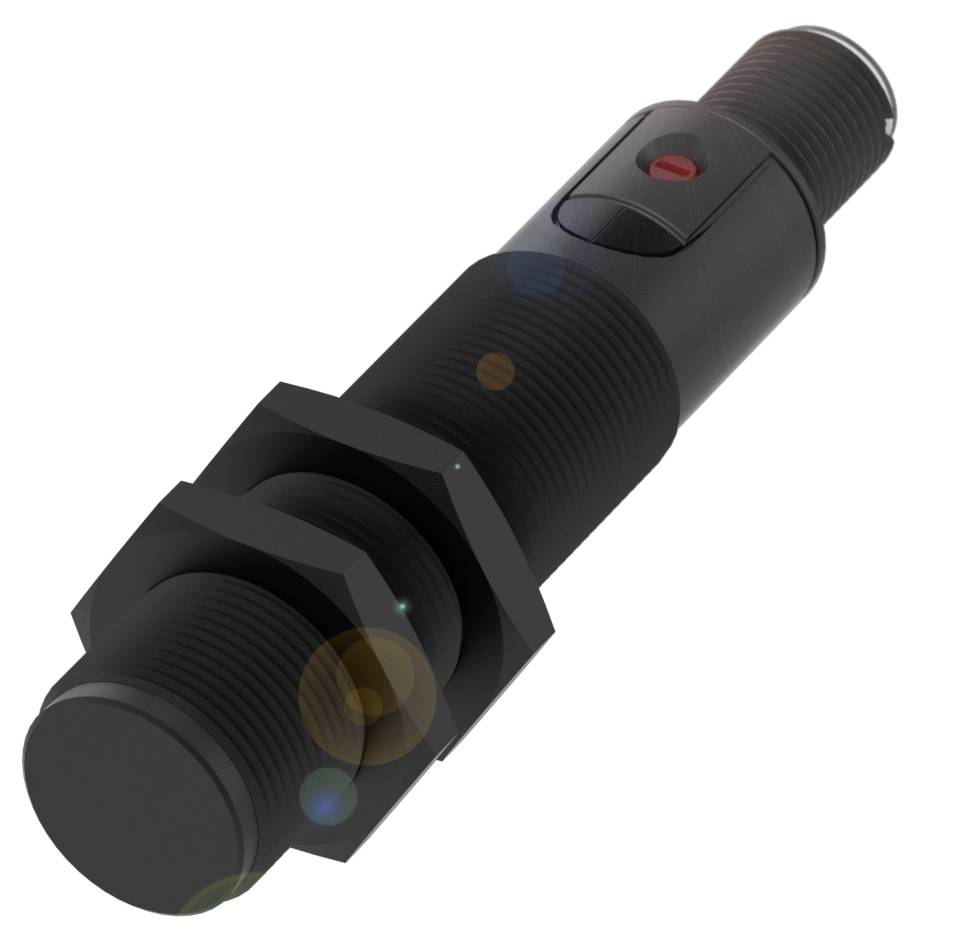

BALLUFF Capacitive sensor Capacitive BCS00MJ BCS00MJ M18 shielded NPN (Ø x L) 18 mm x 88.50 mm Single
EAN:
Part number:
Item no:
Packaging type
Single
Product type
Capacitive sensor
Max. operating voltage
30.0 V
Outputs
NPN
Model
Capacitive
Datasheet (PDF)
Highlights & Details
Balluff BCS00MJ Cylindrical design with M18 thread
- Connection: Connector, M12x1 connector, 3-pin
- Dimensions: Ø 18 x 88.5 mm
- Flush mounting: Flush mounting
- M18 series
- M18x1 thread (A)
Technical specifications
- Main features:Dimensions: Ø 18 x 88.5 mm
- Active surface, material: PBT
- Connection: Connector, M12x1 connector, 3-pin
- M18 series
- Operating voltage Ub 10...30 VDC
- Flush mounting: Flush mounting
- PBT casing material
- M18x1 thread (A)
- Range 1...8 mm
- Switching output: NPN no (NO)
- Switching frequency 100 Hz
- Protection class IP67
- Sensitivity: Adjustable switching distance
- Ambient temperature: -25 to 85 °C
- Additional features:
- Supplied with nut (2x)
- Dimensions: Ø 18 x 88.5 mm
- Operating voltage display: Yes
- Function display: Yes
- Rated operating voltage Ue DC 24 V
- Rated operating current Ie 100 mA
- Rated insulation voltage UI 75 V DC
- Standby delay TV max.: 300 ms
- Operating voltage Ub 10...30 VDC
- Usage category: DC-13
- Residual ripple max. (% of Ue): 10%
- Switching frequency 100 Hz
- Protection class: II
- Static voltage drop: 1.5 V
- Connection: M12x1 3-pin connector, A-coded
- Short-circuit protection: Yes
- Reverse polarity protection: Yes
- Option to switch, protected: No.
- Hysteresis H max. (% of Sr): 15.0%
- Rated switching distance Sn: 8 mm
- Temperature drift max. (% of Sr): 20 % [-5…55 °C]
- Repeatability max. (% of Sr): 2.0%
- MTTF (40 °C) 343 a
- Active surface, material: PBT
- Tightening torque 2 Nm
- Size M18x1
- Flush mounting: Flush mounting
- Switching output: NPN no (NO)
- PBT casing material
- Protection class IP67
- Ambient temperature: -25 to 85 °C
- Pollution level 1
- Number of pins: 3
- Brand: Global
- M18 series
- Idle current IO max. at Ue 20 mA
- Sensitivity: Adjustable switching distance
- Measurement range 1...8 mm
- Cover material PBT|PA
- M18x1 thread (A)
- Packaging type
Single
- Product type
Capacitive sensor
- Type
BCS00MJ
- Min. operating voltage
10.0 V
- Max. operating voltage
30.0 V
- Operating voltage
10.0 - 30.0 V
- Outputs
NPN
- Switching frequency
100 Hz
- Model
Capacitive
- Connector
M18
- Installation type
shielded
- Size
M18
- Enclosure material
PBT
IP67
- Min. temperature
-25 °C
- Max. temperature
85 °C
- Length
88.50 mm
- Width
88.5 mm
- (Ø)
18 mm
- Dim
(Ø x L) 18 mm x 88.50 mm
- Nominal voltage
30.0 V
- Operating voltage
24 V DC
- Operating current
100 mA
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3417166 BALLUFF Capacitive sensor Capacitive BCS00MJ BCS00MJ M18 shielded NPN (Ø x L) 18 mm x 88.50 mm Single
User & Safety Instructions
User & Safety Instructions 3417166 BALLUFF Capacitive sensor Capacitive BCS00MJ BCS00MJ M18 shielded NPN (Ø x L) 18 mm x 88.50 mm Single
Description
Capacitive sensors for object detection have a straight-line electrical field. You can detect solid bodies such as wafers, circuit boards, cardboard boxes, paper stacks, bottles, Plastic blocks and plates as well as liquids through container walls or pipes made of glass and plastic (thickness max. 4 mm). Dimension=Ø 18 x 88.5 mm, series=M18, thread (A)=M18x1, built-in=flush, connection=plug connector, M12x1 plug, 3-pin, switching output=NPN NO contact (NO), switching frequency=100 Hz, range=1...8 mm, Sensitivity = adjustable switching distance, housing material = PBT, active surface, material = PBT, ambient temperature = 25...85 °C, Operating voltage Ub=10...30 VDC, approval/conformity=CecULusWEEE, protection class=IP67
