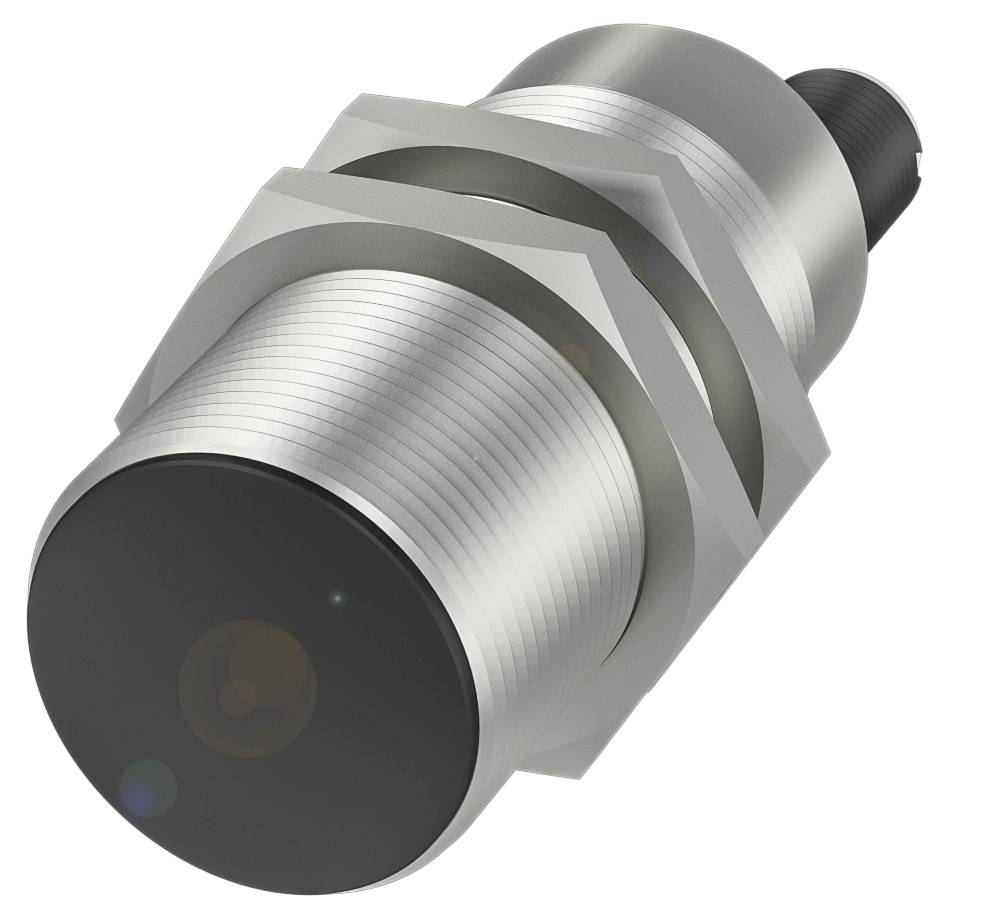

BALLUFF Capacitive sensor Capacitive BCS00MR BCS00MR M30 shielded PNP (Ø x H) 30 mm x 79 m
EAN:
Part number:
Item no:
Product type
Capacitive sensor
Max. operating voltage
30.0 V
Contact type
1 maker
Outputs
PNP
Model
Capacitive
Datasheet (PDF)
Highlights & Details
Balluff BCS00MR Cylindrical design with M30 thread
- Connection: Connector, M12x1 connector, 3-pin
- Dimensions: Ø 30 x 79 mm
- Flush mounting: Flush mounting
- Series M30
- Thread (A) M30x1.5
Technical specifications
- Main features:Dimensions: Ø 30 x 79 mm
- Active surface, material: PBT
- Connection: Connector, M12x1 connector, 3-pin
- Series M30
- Operating voltage Ub 10...30 VDC
- Flush mounting: Flush mounting
- Housing material: Stainless steel (1.4305)
- PBT
- Thread (A) M30x1.5
- Range 2...15 mm
- Switching output: PNP NO
- Switching frequency 100 Hz
- Protection class IP67
- Sensitivity: Adjustable switching distance
- Ambient temperature: -25 to 85 °C
- Additional features:
- Supplied with nut (2x)
- Dimensions: Ø 30 x 79 mm
- Operating voltage display: Yes
- Function display: Yes
- Rated operating voltage Ue DC 24 V
- Rated operating current Ie 100 mA
- Rated insulation voltage UI 75 V DC
- Standby delay TV max.: 300 ms
- Operating voltage Ub 10...30 VDC
- Usage category: DC-13
- Residual ripple max. (% of Ue): 10%
- Switching frequency 100 Hz
- Static voltage drop: 1.5 V
- Connection: M12x1 3-pin connector, A-coded
- Short-circuit protection: Yes
- Reverse polarity protection: Yes
- Option to switch, protected: No.
- Hysteresis H max. (% of Sr): 15.0%
- Rated switching distance Sn: 15 mm
- Temperature drift max. (% of Sr): 20 % [-5…55 °C]
- Repeatability max. (% of Sr): 2.0%
- MTTF (40 °C) 343 a
- Active surface, material: PBT
- Tightening torque 90 Nm
- Size M30x1.5
- Flush mounting: Flush mounting
- Switching output: PNP NO
- Housing material: Stainless steel (1.4305)|PBT
- Protection class IP67
- Ambient temperature: -25 to 85 °C
- Pollution level 1
- Number of pins: 3
- Brand: Global
- Series M30
- Idle current IO max. at Ue 20 mA
- Additional properties: Sweat-proof (magnetic field 100kA/
- Sensitivity: Adjustable switching distance
- Measurement range 2...15 mm
- Cover material PBT|PA
- Thread (A) M30x1.5
- Product type
Capacitive sensor
- Type
BCS00MR
- Min. operating voltage
10.0 V
- Max. operating voltage
30.0 V
- Operating voltage
10.0 - 30.0 V
- Contact type
1 maker
- Outputs
PNP
- Enclosure material
Stainless steel
- Model
Capacitive
- Material properties
rust-proof
- Installation type
shielded
- Size
M30
- Connector
Plug
- Min. temperature
-25 °C
- Max. temperature
85 °C
IP67
- Length
79.00 mm
- Width
79 mm
- Height
79 m
- (Ø)
30 mm
- Dim
(Ø x H) 30 mm x 79 m
- Content
1 pc(s)
- Nominal voltage
30.0 V
- Operating voltage
24 V DC
- Switching frequency
100 Hz
- Operating current
100 mA
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3417151 BALLUFF Capacitive sensor Capacitive BCS00MR BCS00MR M30 shielded PNP (Ø x H) 30 mm x 79 m
User & Safety Instructions
User & Safety Instructions 3417151 BALLUFF Capacitive sensor Capacitive BCS00MR BCS00MR M30 shielded PNP (Ø x H) 30 mm x 79 m
Description
Capacitive sensors for object detection have a straight-line electrical field. You can detect solid bodies such as wafers, circuit boards, cardboard boxes, paper stacks, bottles, Plastic blocks and plates as well as liquids through container walls or pipes made of glass and plastic (thickness max. 4 mm). Dimension=Ø 30 x 79 mm, series=M30, thread (A)=M30x1.5, build-in=flush, connection=plug connector, M12x1 plug, 3-pin, switching output = PNP NO (NO), switching frequency = 100 Hz, range = 2...15 mm, Sensitivity = adjustable switching distance, housing material = stainless steel (1.4305) PBT, active surface, material = PBT, ambient temperature = 25...85 °C, Operating voltage Ub=10...30 VDC, approval/conformity=CecULusWEEE, protection class=IP67
