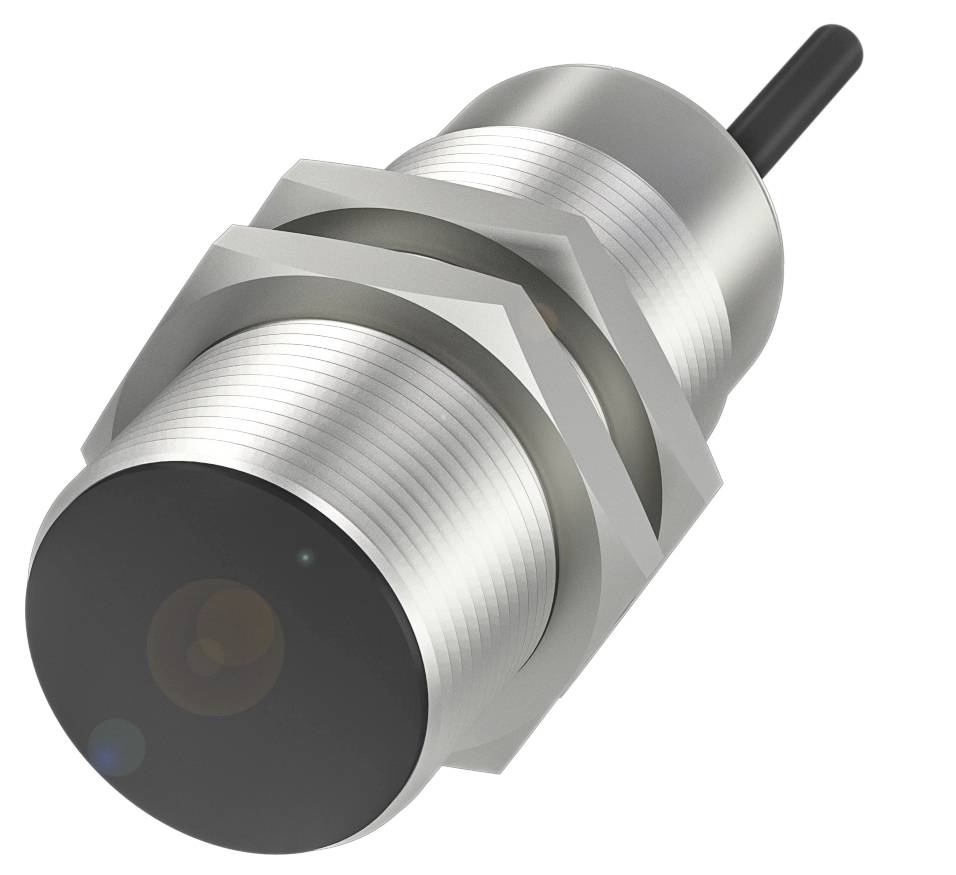

BALLUFF Capacitive sensor Capacitive BCS00N2 BCS00N2 M30 shielded PNP (Ø x H) 30 mm x 65.5 m
EAN:
Part number:
Item no:
Product type
Capacitive sensor
Max. operating voltage
30.0 V
Outputs
PNP
Model
Capacitive
Connector
Cable
Datasheet (PDF)
Highlights & Details
Balluff BCS00N2 Cylindrical version with M30 thread
- Connection: Cable, 2.00 m, PUR
- Dimensions: Ø 30 x 65.5 mm
- Flush mounting: Flush mounting
- Series M30
- Thread (A) M30x1.5
Technical specifications
- Main features:Dimensions: Ø 30 x 65.5 mm
- Active surface, material: PBT
- Connection: Cable, 2.00 m, PUR
- Series M30
- Operating voltage Ub 10...30 VDC
- Flush mounting: Flush mounting
- Housing material: Stainless steel (1.4305)
- Thread (A) M30x1.5
- Range 2...15 mm
- Switching output: PNP NO
- Switching frequency 100 Hz
- Protection class IP67
- Sensitivity: Adjustable switching distance
- Ambient temperature: -25 to 85 °C
- Additional features:
- Supplied with nut (2x)
- Dimensions: Ø 30 x 65.5 mm
- Operating voltage display: Yes
- Function display: Yes
- Rated operating voltage Ue DC 24 V
- Rated operating current Ie 100 mA
- Rated insulation voltage UI 75 V DC
- Standby delay TV max.: 300 ms
- Operating voltage Ub 10...30 VDC
- Usage category: DC-13
- Residual ripple max. (% of Ue): 10%
- Switching frequency 100 Hz
- Static voltage drop: 1.5 V
- Short-circuit protection: Yes
- Reverse polarity protection: Yes
- Option to switch, protected: No.
- Hysteresis H max. (% of Sr): 15.0%
- Rated switching distance Sn: 15 mm
- Temperature drift max. (% of Sr): 20 % [-5…55 °C]
- Repeatability max. (% of Sr): 2.0%
- MTTF (40 °C) 343 a
- Active surface, material: PBT
- Tightening torque 90 Nm
- Size M30x1.5
- Flush mounting: Flush mounting
- Switching output: PNP NO
- Cable diameter D 4.60 mm
- Cable length 2 m
- Housing material: Stainless steel (1.4305)
- Sheath material: PUR
- Protection class IP67
- Ambient temperature: -25 to 85 °C
- Pollution level 1
- Number of conductors: 3
- Conductor cross-section: 0.34 mm²
- Brand: Global
- Series M30
- Idle current IO max. at Ue 20 mA
- Sensitivity: Adjustable switching distance
- Measurement range 2...15 mm
- Cover material PBT|PA
- Thread (A) M30x1.5
- Product type
Capacitive sensor
- Type
BCS00N2
- Min. operating voltage
10.0 V
- Max. operating voltage
30.0 V
- Operating voltage
10.0 - 30.0 V
- Outputs
PNP
- Cable length
2.00 m
- Switching frequency
100 Hz
- Model
Capacitive
- Connector
Cable
- Installation type
shielded
- Size
M30
- Enclosure material
Stainless steel
- Contact type
1 maker
IP67
- Min. temperature
-25 °C
- Max. temperature
85 °C
- Length
65.50 mm
- Width
65.5 mm
- Height
65.5 m
- (Ø)
30 mm
- Dim
(Ø x H) 30 mm x 65.5 m
- Jacket material
PUR
- Nominal voltage
30.0 V
- Operating voltage
24 V DC
- Operating current
100 mA
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3417483 BALLUFF Capacitive sensor Capacitive BCS00N2 BCS00N2 M30 shielded PNP (Ø x H) 30 mm x 65.5 m
User & Safety Instructions
User & Safety Instructions 3417483 BALLUFF Capacitive sensor Capacitive BCS00N2 BCS00N2 M30 shielded PNP (Ø x H) 30 mm x 65.5 m
Description
Capacitive sensors for object detection have a straight-line electrical field. You can detect solid bodies such as wafers, circuit boards, cardboard boxes, paper stacks, bottles, Plastic blocks and plates as well as liquids through container walls or pipes made of glass and plastic (thickness max. 4 mm). Dimension=Ø 30 x 65.5 mm, series=M30, thread (A)=M30x1.5, install=flush, connection=cable, 2.00 m, PUR, switching output=PNP NO (NO), switching frequency=100 Hz, range=2...15 mm, Sensitivity = adjustable switching distance, case material = stainless steel (1.4305), active surface, material = PBT, ambient temperature = 25...85 °C, Operating voltage Ub=10...30 VDC, approval/conformity=CecULusWEEE, protection class=IP67
