BALLUFF Capacitive sensor Capacitive BCS00NH BCS00NH M30 non-shielded PNP (Ø x H) 30 mm x 78.5 m
EAN:
Part number:
Item no:
Product type
Capacitive sensor
Max. operating voltage
30.0 V
Contact type
1 maker
Outputs
PNP
Model
Capacitive
Datasheet (PDF)
Highlights & Details

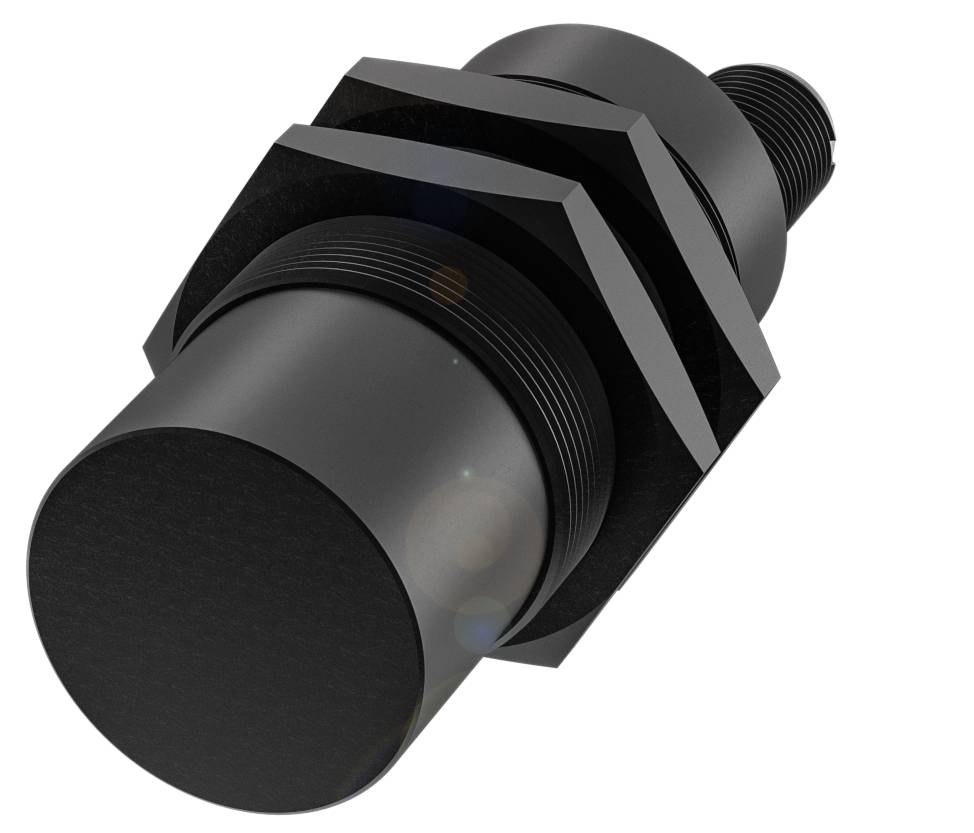

Balluff BCS00NH Cylindrical design with M30 thread
- Connection: Connector, M12x1 connector, 4-pin
- Dimensions: Ø 30 x 78.5 mm
- Fitting: Non-shielded
- Switching output: PNP NO
- Series M30
Technical specifications
- Main features:Dimensions: Ø 30 x 78.5 mm
- Active surface, material: PBT
- Connection: Connector, M12x1 connector, 4-pin
- Series M30
- Operating voltage Ub 10...30 VDC
- Fitting: Non-shielded
- PBT casing material
- Switching output: PNP NO
- Switching frequency 100 Hz
- Protection class IP67
- Sensitivity: Adjustable switching distance
- Ambient temperature: -25 to 85 °C
- Additional features:
- Supplied with nut (2x)
- Dimensions: Ø 30 x 78.5 mm
- Operating voltage display: Yes
- Function display: Yes
- Rated operating voltage Ue DC 24 V
- Rated operating current Ie 100 mA
- Rated insulation voltage UI 75 V DC
- Standby delay TV max.: 300 ms
- Operating voltage Ub 10...30 VDC
- Usage category: DC-13
- Residual ripple max. (% of Ue): 10%
- Switching frequency 100 Hz
- Protection class: II
- Static voltage drop: 1.5 V
- Connection: M12x1 4-pin connector, A-coded
- Short-circuit protection: Yes
- Reverse polarity protection: Yes
- Option to switch, protected: No.
- Hysteresis H max. (% of Sr): 15.0%
- Rated switching distance Sn: 25 mm
- Temperature drift max. (% of Sr): 20 % [-5…55 °C]
- Repeatability max. (% of Sr): 2.0%
- MTTF (40 °C) 226 a
- Active surface, material: PBT
- Tightening torque 6 Nm
- Size M30x1.5
- Fitting: Non-shielded
- Switching output: PNP NO
- PBT casing material
- Protection class IP67
- Ambient temperature: -25 to 85 °C
- Number of pins: 4
- Brand: Global
- Series M30
- Idle current IO max. at Ue 20 mA
- Sensitivity: Adjustable switching distance
- Measurement range 1...25 mm
- Cover material PBT|PA
- Thread (A) M30x1.5
- Product type
Capacitive sensor
- Type
BCS00NH
- Min. operating voltage
10.0 V
- Max. operating voltage
30.0 V
- Operating voltage
10.0 - 30.0 V
- Contact type
1 maker
- Outputs
PNP
- Enclosure material
PBT
- Model
Capacitive
- Installation type
non-shielded
- Size
M30
- Connector
Plug
- Min. temperature
-25 °C
- Max. temperature
85 °C
IP67
- Length
78.50 mm
- Width
78.5 mm
- Height
78.5 m
- (Ø)
30 mm
- Dim
(Ø x H) 30 mm x 78.5 m
- Content
1 pc(s)
- Nominal voltage
30.0 V
- Operating voltage
24 V DC
- Switching frequency
100 Hz
- Operating current
100 mA
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3417280 BALLUFF Capacitive sensor Capacitive BCS00NH BCS00NH M30 non-shielded PNP (Ø x H) 30 mm x 78.5 m
User & Safety Instructions
User & Safety Instructions 3417280 BALLUFF Capacitive sensor Capacitive BCS00NH BCS00NH M30 non-shielded PNP (Ø x H) 30 mm x 78.5 m
Description
These capacitive sensors for level detection detect with their active surface the product, bulk material or liquids to be scanned in contact with the medium. Its spherical electrical field effectively compensates for adhesion to the active surface of the sensor. Dimension=Ø 30 x 78.5 mm, series=M30, thread (A)=M30x1.5, install=not flush, connection=plug connector, M12x1 plug, 4-pin, switching output = PNP NO (NO), switching frequency = 100 Hz, range = 1...25 mm, Sensitivity = adjustable switching distance, housing material = PBT, active surface, material = PBT, ambient temperature = 25...85 °C, Operating voltage Ub=10...30 VDC, approval/conformity=CecULusWEEE, protection class=IP67
