BALLUFF Capacitive sensor Capacitive BCS00NP BCS00NP M30 shielded NPN (Ø x H) 30 mm x 66.5 m
EAN:
Part number:
Item no:
Product type
Capacitive sensor
Max. operating voltage
30.0 V
Outputs
NPN
Model
Capacitive
Connector
Cable
Datasheet (PDF)
Highlights & Details

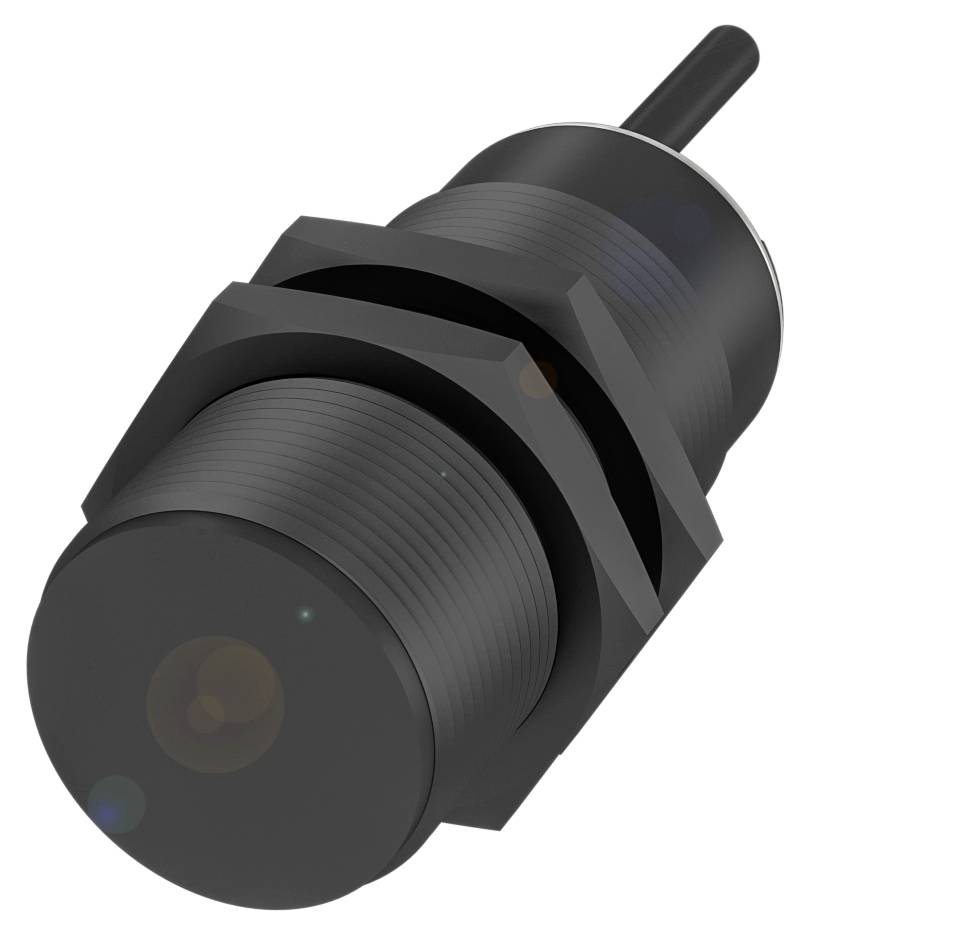

Balluff BCS00NP Cylindrical design with M30 thread
- Connection: Cable, 2.00 m, PUR
- Dimensions: Ø 30 x 66.5 mm
- Flush mounting: Flush mounting
- Series M30
- Thread (A) M30x1.5
Technical specifications
- Main features:Dimensions: Ø 30 x 66.5 mm
- Active surface, material: PBT
- Connection: Cable, 2.00 m, PUR
- Series M30
- Operating voltage Ub 10...30 VDC
- Flush mounting: Flush mounting
- PBT casing material
- Thread (A) M30x1.5
- Range 2...15 mm
- Switching output: NPN no (NO)
- Switching frequency 100 Hz
- Protection class IP67
- Sensitivity: Adjustable switching distance
- Ambient temperature: -25 to 85 °C
- Additional features:
- Supplied with nut (2x)
- Dimensions: Ø 30 x 66.5 mm
- Operating voltage display: Yes
- Function display: Yes
- Rated operating voltage Ue DC 24 V
- Rated operating current Ie 100 mA
- Rated insulation voltage UI 75 V DC
- Standby delay TV max.: 300 ms
- Operating voltage Ub 10...30 VDC
- Usage category: DC-13
- Residual ripple max. (% of Ue): 10%
- Switching frequency 100 Hz
- Protection class: II
- Static voltage drop: 1.5 V
- Short-circuit protection: Yes
- Reverse polarity protection: Yes
- Option to switch, protected: No.
- Hysteresis H max. (% of Sr): 15.0%
- Rated switching distance Sn: 15 mm
- Temperature drift max. (% of Sr): 20 % [-5…55 °C]
- Repeatability max. (% of Sr): 2.0%
- MTTF (40 °C) 343 a
- Active surface, material: PBT
- Tightening torque 6 Nm
- Size M30x1.5
- Flush mounting: Flush mounting
- Switching output: NPN no (NO)
- Cable diameter D 4.60 mm
- Cable length 2 m
- PBT casing material
- Sheath material: PUR
- Protection class IP67
- Ambient temperature: -25 to 85 °C
- Pollution level 1
- Number of conductors: 3
- Conductor cross-section: 0.34 mm²
- Brand: Global
- Series M30
- Idle current IO max. at Ue 20 mA
- Sensitivity: Adjustable switching distance
- Measurement range 2...15 mm
- Cover material PBT|PA
- Thread (A) M30x1.5
- Product type
Capacitive sensor
- Type
BCS00NP
- Min. operating voltage
10.0 V
- Max. operating voltage
30.0 V
- Operating voltage
10.0 - 30.0 V
- Outputs
NPN
- Cable length
2.00 m
- Switching frequency
100 Hz
- Model
Capacitive
- Connector
Cable
- Installation type
shielded
- Size
M30
- Enclosure material
PBT
- Contact type
1 maker
IP67
- Min. temperature
-25 °C
- Max. temperature
85 °C
- Length
66.50 mm
- Width
66.5 mm
- Height
66.5 m
- (Ø)
30 mm
- Dim
(Ø x H) 30 mm x 66.5 m
- Jacket material
PUR
- Nominal voltage
30.0 V
- Operating voltage
24 V DC
- Operating current
100 mA
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3417307 BALLUFF Capacitive sensor Capacitive BCS00NP BCS00NP M30 shielded NPN (Ø x H) 30 mm x 66.5 m
User & Safety Instructions
User & Safety Instructions 3417307 BALLUFF Capacitive sensor Capacitive BCS00NP BCS00NP M30 shielded NPN (Ø x H) 30 mm x 66.5 m
Description
Capacitive sensors for object detection have a straight-line electrical field. You can detect solid bodies such as wafers, circuit boards, cardboard boxes, paper stacks, bottles, Plastic blocks and plates as well as liquids through container walls or pipes made of glass and plastic (thickness max. 4 mm). Dimension=Ø 30 x 66.5 mm, series=M30, thread (A)=M30x1.5, install=flush, connection=cable, 2.00 m, PUR, switching output=NPN NO contact (NO), switching frequency=100 Hz, range=2...15 mm, Sensitivity = adjustable switching distance, housing material = PBT, active surface, material = PBT, ambient temperature = 25...85 °C, Operating voltage Ub=10...30 VDC, approval/conformity=CecULusWEEE, protection class=IP67
