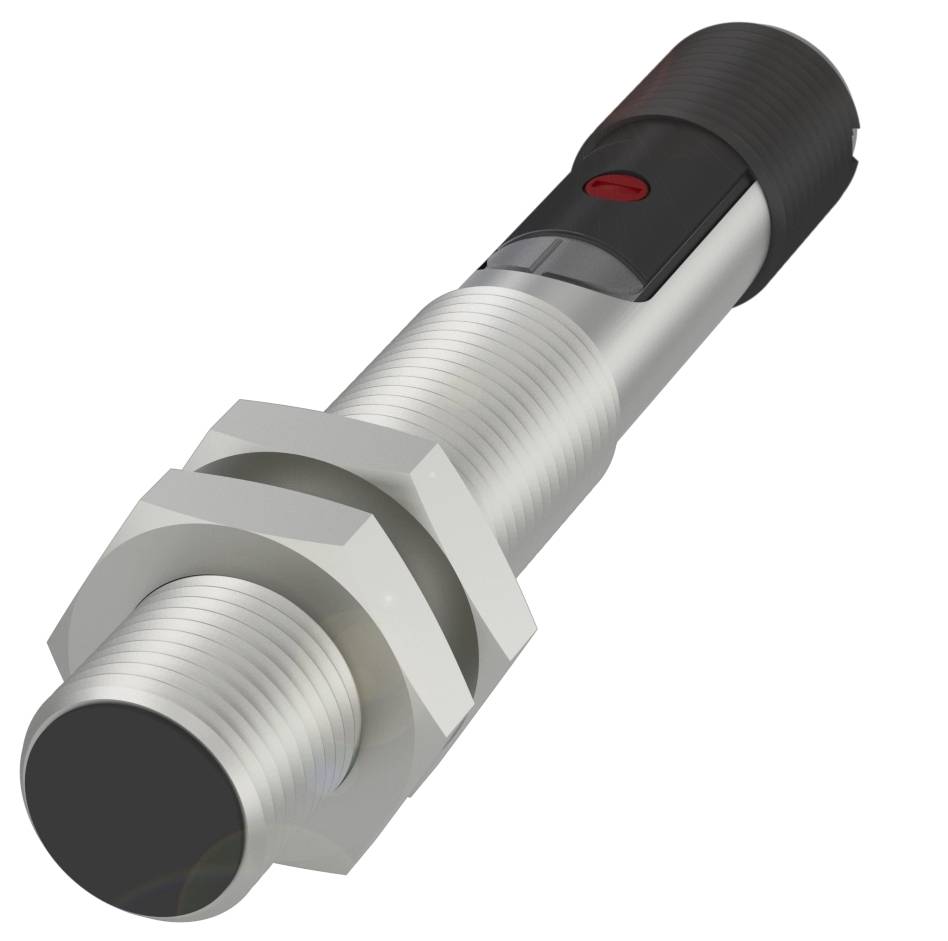

BALLUFF Capacitive sensor Capacitive BCS00P0 BCS00P0 M12 shielded PNP (Ø x L) 12 mm x 75.00 mm Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Capacitive sensor
Max. operating voltage
30.0 V
Contact type
1 PNP
Outputs
PNP
Datasheet (PDF)
Highlights & Details
Balluff BCS00P0 Cylindrical design with M12 thread
- Connection: Connector, M12x1 connector, 3-pin
- Dimensions: Ø 12 x 75 mm
- Flush mounting: Flush mounting
- M12 series
- Thread (A) M12x1
Technical specifications
- Main features:Dimensions: Ø 12 x 75 mm
- Active surface, material: PBT
- Connection: Connector, M12x1 connector, 3-pin
- M12 series
- Operating voltage Ub 10...30 VDC
- Flush mounting: Flush mounting
- Housing material: Stainless steel (1.4305)
- Thread (A) M12x1
- Range 1...4 mm
- Switching output: PNP NO
- Switching frequency 100 Hz
- Protection class IP67
- Sensitivity: Adjustable switching distance
- Ambient temperature: -25 to 85 °C
- Additional features:
- Supplied with nut (2x)
- Dimensions: Ø 12 x 75 mm
- Operating voltage display: Yes
- Function display: Yes
- Rated operating voltage Ue DC 24 V
- Rated operating current Ie 100 mA
- Rated insulation voltage UI 75 V DC
- Standby delay TV max.: 300 ms
- Operating voltage Ub 10...30 VDC
- Usage category: DC-13
- Residual ripple max. (% of Ue): 10%
- Switching frequency 100 Hz
- Static voltage drop: 1.5 V
- Connection: M12x1 3-pin connector, A-coded
- Short-circuit protection: Yes
- Reverse polarity protection: Yes
- Option to switch, protected: No.
- Hysteresis H max. (% of Sr): 15%
- Temperature drift max. (% of Sr): 20 % [-5…55 °C]
- Repeatability max. (% of Sr): 2%
- MTTF (40 °C) 343 a
- Active surface, material: PBT
- Housing material Mechanical characteristics: Stainless steel (1.4305)
- Tightening torque 8 Nm
- Size M12x1
- Flush mounting: Flush mounting
- Switching output: PNP NO
- Number of pins: 3
- Brand: Global
- M12 series
- Idle current IO max. at Ue 20 mA
- Additional properties: Sweat-proof (magnetic field 100kA/|m)
- Sensitivity: Adjustable switching distance
- Measurement range 1...4 mm
- Cover material PBT|PA
- Thread (A) M12x1
- Packaging type
Piece
- Product type
Capacitive sensor
- Type
BCS00P0
- Min. operating voltage
10.0 V
- Max. operating voltage
30.0 V
- Operating voltage
10.0 - 30.0 V
- Contact type
1 PNP
- Outputs
PNP
- Enclosure material
Stainless steel
- Model
Capacitive
- Material properties
rust-proof
- Installation type
shielded
- Size
M12
- Connector
M12
- Min. temperature
-25 °C
- Max. temperature
85 °C
IP67
- Length
75.00 mm
- Width
75 mm
- (Ø)
12 mm
- Dim
(Ø x L) 12 mm x 75.00 mm
- Content
1 pc(s)
- Nominal voltage
30.0 V
- Operating voltage
24 V DC
- Switching frequency
100 Hz
- Operating current
100 mA
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3417248 BALLUFF Capacitive sensor Capacitive BCS00P0 BCS00P0 M12 shielded PNP (Ø x L) 12 mm x 75.00 mm Piece
User & Safety Instructions
User & Safety Instructions 3417248 BALLUFF Capacitive sensor Capacitive BCS00P0 BCS00P0 M12 shielded PNP (Ø x L) 12 mm x 75.00 mm Piece
Description
Capacitive sensors for object detection have a straight-line electrical field. You can detect solid bodies such as wafers, circuit boards, cardboard boxes, paper stacks, bottles, Plastic blocks and plates as well as liquids through container walls or pipes made of glass and plastic (thickness max. 4 mm). Dimension=Ø 12 x 75 mm, series=M12, thread (A)=M12x1, installation=flush, connection=plug connector, M12x1 plug, 4-pin, switching output = PNP NO (NO), switching frequency = 100 Hz, range = 1...4 mm, Sensitivity = adjustable switching distance, case material = stainless steel (1.4305), active surface, material = PBT, ambient temperature = 25...85 °C, Operating voltage Ub=10...30 VDC, approval/conformity=CecULusWEEE, protection class=IP67
