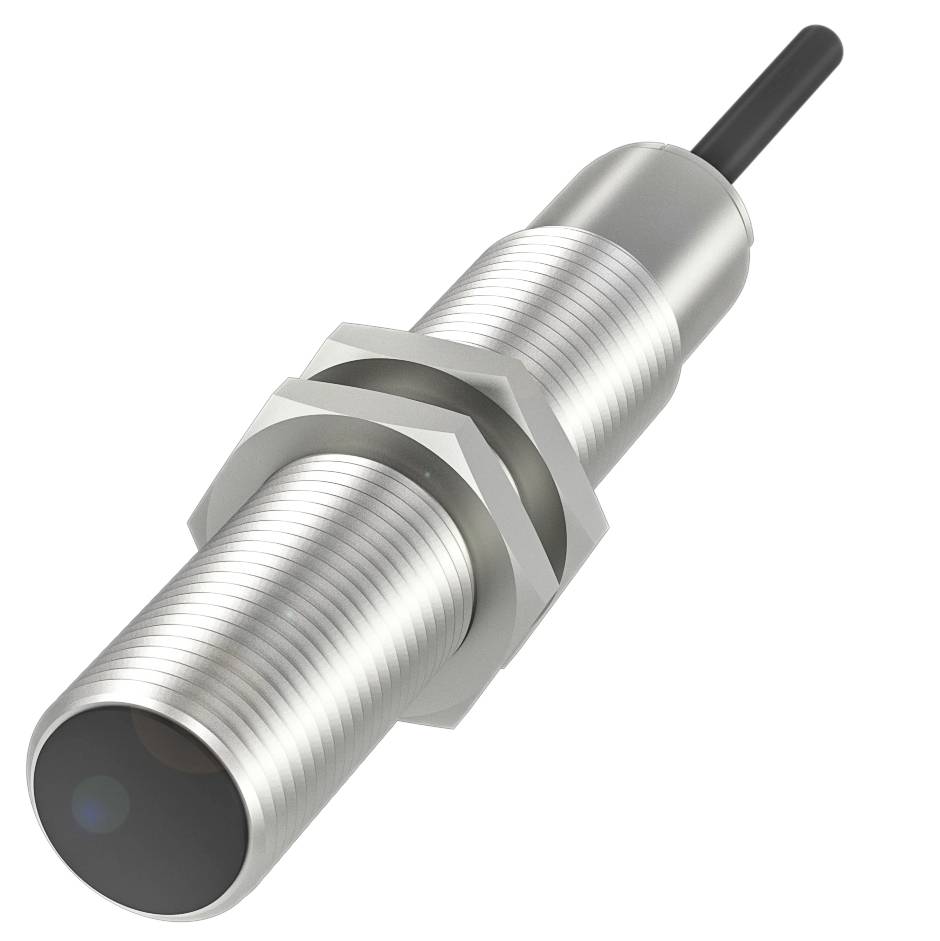

BALLUFF Capacitive sensor Capacitive BCS00R4 BCS00R4 M12 shielded PNP (Ø x H) 12 mm x 61 m
EAN:
Part number:
Item no:
Product type
Capacitive sensor
Max. operating voltage
30.0 V
Outputs
PNP
Model
Capacitive
Connector
M12
Datasheet (PDF)
Highlights & Details
Balluff BCS00R4 Cylindrical design with M12 thread
- Connection: Cable, 2.00 m, PUR
- Dimensions: Ø 12 x 61 mm
- Flush mounting: Flush mounting
- M12 series
- Thread (A) M12x1
Technical specifications
- Main features:Dimensions: Ø 12 x 61 mm
- Active surface, material: PBT
- Connection: Cable, 2.00 m, PUR
- M12 series
- Operating voltage Ub 10...30 VDC
- Flush mounting: Flush mounting
- Housing material: Stainless steel (1.4305)
- Thread (A) M12x1
- Range 1...4 mm
- Switching output: PNP NO
- Switching frequency 100 Hz
- Protection class IP67
- Sensitivity: Adjustable switching distance
- Ambient temperature: -25 to 85 °C
- Additional features:
- Supplied with nut (2x)
- Dimensions: Ø 12 x 61 mm
- Operating voltage display: Yes
- Function display: Yes
- Rated operating voltage Ue DC 24 V
- Rated operating current Ie 100 mA
- Rated insulation voltage UI 75 V DC
- Standby delay TV max.: 100 ms
- Operating voltage Ub 10...30 VDC
- Usage category: DC-13
- Residual current l max. 10 µA
- Residual ripple max. (% of Ue): 10%
- Switching frequency 100 Hz
- Static voltage drop: 1.5 V
- Short-circuit protection: Yes
- Reverse polarity protection: Yes
- Option to switch, protected: No.
- Hysteresis H max. (% of Sr): 15%
- Temperature drift max. (% of Sr): 20 % [-5…55 °C]
- Repeatability max. (% of Sr): 2%
- MTTF (40 °C) 343 a
- Active surface, material: PBT
- Tightening torque 8 Nm
- Size M12x1
- Flush mounting: Flush mounting
- Switching output: PNP NO
- Cable diameter D 3.50 mm
- Cable length 2 m
- Housing material: Stainless steel (1.4305)
- Sheath material: PUR
- Protection class IP67
- Ambient temperature: -25 to 85 °C
- Pollution level 1
- Number of conductors: 3
- Conductor cross-section: 0.14 mm²
- Brand: Global
- M12 series
- Idle current IO max. at Ue 20 mA
- Sensitivity: Adjustable switching distance
- Measurement range 1...4 mm
- Cover material PA
- Thread (A) M12x1
- Product type
Capacitive sensor
- Type
BCS00R4
- Min. operating voltage
10.0 V
- Max. operating voltage
30.0 V
- Operating voltage
10.0 - 30.0 V
- Outputs
PNP
- Cable length
2.00 m
- Switching frequency
100 Hz
- Model
Capacitive
- Connector
M12
- Installation type
shielded
- Size
M12
- Enclosure material
Stainless steel
IP67
- Min. temperature
-25 °C
- Max. temperature
85 °C
- Length
61.00 mm
- Width
61 mm
- Height
61 m
- (Ø)
12 mm
- Dim
(Ø x H) 12 mm x 61 m
- Jacket material
PUR
- Nominal voltage
30.0 V
- Operating voltage
24 V DC
- Operating current
100 mA
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3417326 BALLUFF Capacitive sensor Capacitive BCS00R4 BCS00R4 M12 shielded PNP (Ø x H) 12 mm x 61 m
User & Safety Instructions
User & Safety Instructions 3417326 BALLUFF Capacitive sensor Capacitive BCS00R4 BCS00R4 M12 shielded PNP (Ø x H) 12 mm x 61 m
Description
Capacitive sensors for object detection have a straight-line electrical field. You can detect solid bodies such as wafers, circuit boards, cardboard boxes, paper stacks, bottles, Plastic blocks and plates as well as liquids through container walls or pipes made of glass and plastic (thickness max. 4 mm). Dimensions=Ø 12 x 61 mm, series=M12, thread (A)=M12x1, installation=flush, connection=cable, 2.00 m, PUR, switching output=PNP NO (NO), switching frequency=100 Hz, range=1...4 mm, Sensitivity = adjustable switching distance, case material = stainless steel (1.4305), active surface, material = PBT, ambient temperature = 25...85 °C, Operating voltage Ub=10...30 VDC, approval/conformity=CecULusWEEE, protection class=IP67
