BALLUFF Capacitive sensor Capacitive BCS00TR BCS00TR shielded NPN, change-over, PNP, change-over (L x W x H) 10.00 x 40.
EAN:
Part number:
Item no:
Product type
Capacitive sensor
Max. operating voltage
30.0 V
Outputs
NPN, change-over, PNP, change-over
Model
Capacitive
Connector
Cable
Datasheet (PDF)
Highlights & Details

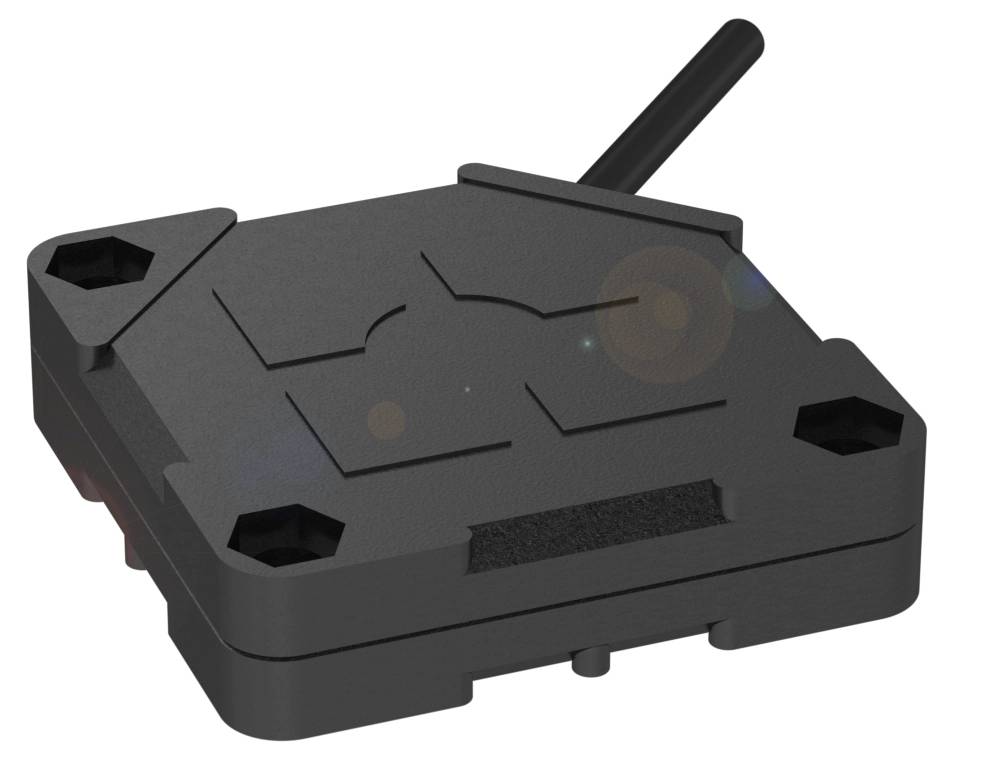

Balluff BCS00TR Square design made of plastic
- Connection: Cable, 2.00 m, PUR
- Dimensions 40 x 40 x 10 mm
- Flush mounting: Flush mounting
- Switching output PNP/NPN NO/NC programmable
- Q40 series
Technical specifications
- Main features:Dimension 40 x 40 x 10 mm
- Active surface, material: PBT
- Connection: Cable, 2.00 m, PUR
- Q40 series
- Operating voltage Ub 10...30 VDC
- Flush mounting: Flush mounting
- PBT casing material
- Range 1...20 mm
- Switching output PNP/NPN NO/NC programmable
- Switching frequency 100 Hz
- Protection class IP67
- Sensitivity: Adjustable switching distance
- Ambient temperature -5...85 °C
- Additional features:
- Dimensions 40 x 40 x 10 mm
- Operating voltage display: Yes
- Function display: Yes
- Rated operating voltage Ue DC 24 V
- Rated operating current Ie 100 mA
- Rated insulation voltage UI 75 V DC
- Standby delay TV max.: 25 ms
- Operating voltage Ub 10...30 VDC
- Usage category: DC-13
- Load capacity max. at Ue 10 µF
- Residual ripple max. (% of Ue): 10%
- Switching frequency 100 Hz
- Static voltage drop: 2.5 V
- Short-circuit protection: Yes
- Reverse polarity protection: Yes
- Exchange possibility protected: Yes
- Hysteresis H max. (% of Sr): 15.0%
- Rated switching distance Sn: 20 mm
- Temperature drift max. (% of Sr): 20 % [-5…55 °C]
- Repeatability max. (% of Sr): 5.0%
- MTTF (40 °C) 195 a
- Active surface, material: PBT
- Size: Square shape
- Flush mounting: Flush mounting
- Switching output: PNP/NPN NO/NC (NO/|NC) can be programmed
- Cable diameter D 3.00 mm
- Cable length 2 m
- PBT casing material
- Sheath material: PUR
- Protection class IP67
- Ambient temperature -5...85 °C
- Pollution level 1
- Number of conductors: 3
- Conductor cross-section: 0.14 mm²
- Brand: Global
- Q40 series
- Idle current IO max. at Ue 15 mA
- Sensitivity: Adjustable switching distance
- Measurement range 1...20 mm
- Cover material PBT
- Product type
Capacitive sensor
- Type
BCS00TR
- Min. operating voltage
10.0 V
- Max. operating voltage
30.0 V
- Operating voltage
10.0 - 30.0 V
- Outputs
NPN, change-over, PNP, change-over
- Enclosure material
PBT
- Model
Capacitive
- Installation type
shielded
- Connector
Cable
- Cable length
2.00 m
- Min. temperature
-5 °C
- Max. temperature
85 °C
IP67
- Length
10.00 mm
- Width
40.00 mm
- Height
40.00 mm
- Depth
10 m
- Dim
(L x W x H) 10.00 x 40.00 x 40.00 mm
- Content
1 pc(s)
- Nominal voltage
30.0 V
- Jacket material
PUR
- Operating voltage
24 V DC
- Switching frequency
100 Hz
- Operating current
100 mA
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3416708 BALLUFF Capacitive sensor Capacitive BCS00TR BCS00TR shielded NPN, change-over, PNP, change-over (L x W x H) 10.00 x 40.
User & Safety Instructions
User & Safety Instructions 3416708 BALLUFF Capacitive sensor Capacitive BCS00TR BCS00TR shielded NPN, change-over, PNP, change-over (L x W x H) 10.00 x 40.
Description
Capacitive sensors for object detection have a straight-line electrical field. You can detect solid bodies such as wafers, circuit boards, cardboard boxes, paper stacks, bottles, Plastic blocks and plates as well as liquids through container walls or pipes made of glass and plastic (thickness max. 4 mm). Dimensions = 40 x 40 x 10 mm, series = Q40, installation = flush, connection = cable, 2.00 m, PUR, switching output=PNP/NPN NO/NC contact (NO/NC) programmable, switching frequency=100 Hz, range=1...20 mm, sensitivity=switching distance adjustable, housing material=PBT, Active surface, material=PBT, ambient temperature=-5...85 °C, operating voltage Ub=10...30 VDC, approval/conformity=CecULusWEEE, Protection class=IP67
This text is machine translated.
