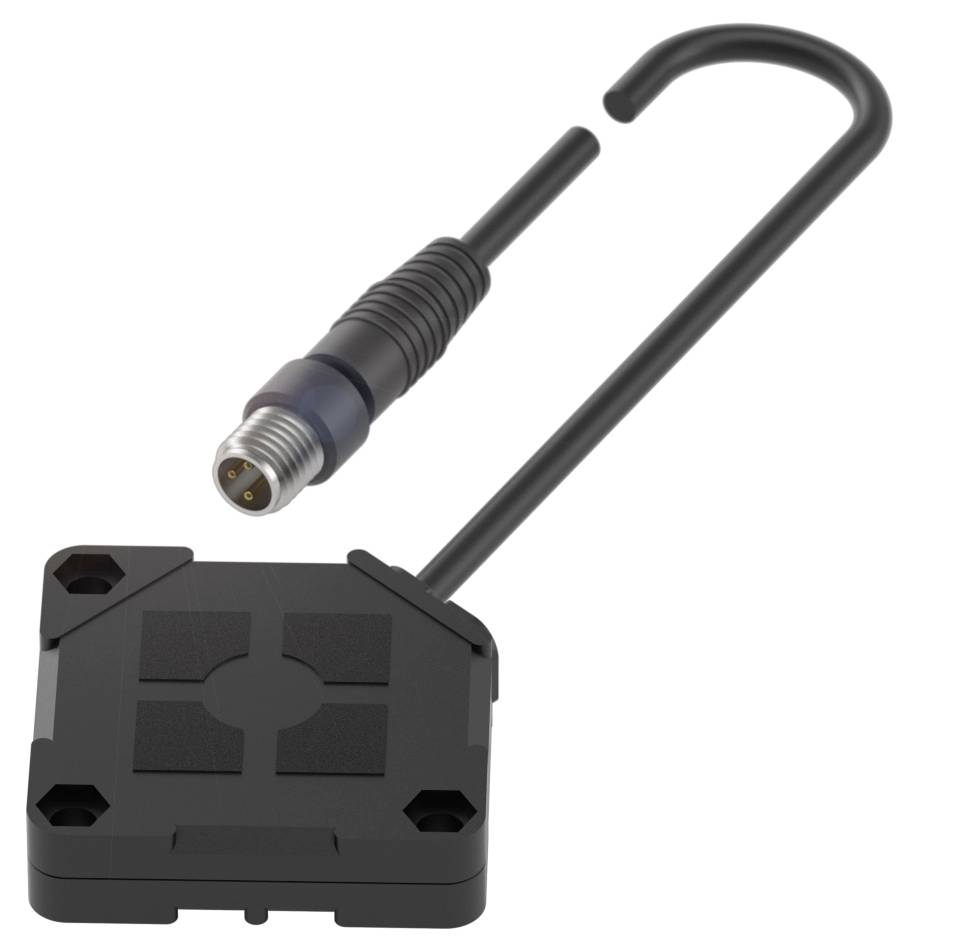

BALLUFF Capacitive sensor Capacitive BCS00U6 BCS00U6 shielded PNP (L x W x H) 10.00 x 40.00 x 40.00 mm Single
EAN:
Part number:
Item no:
Packaging type
Single
Product type
Capacitive sensor
Max. operating voltage
30.0 V
Contact type
1 PNP
Outputs
PNP
Datasheet (PDF)
Highlights & Details
Balluff BCS00U6 Square plastic design
- Connection: Cable with plug connector, M8x1 plug, 3-pin, 0.30 m, PUR
- Dimensions 40 x 40 x 10 mm
- Flush mounting: Flush mounting
- Switching output: PNP NO
- Q40 series
Technical specifications
- Main features:Dimension 40 x 40 x 10 mm
- Active surface, material: PBT
- Connection: Cable with plug connector, M8x1 plug, 3-pin, 0.30 m, PUR
- Q40 series
- Operating voltage Ub 10...30 VDC
- Flush mounting: Flush mounting
- PBT casing material
- Range 1...20 mm
- Switching output: PNP NO
- Switching frequency 100 Hz
- Protection class IP67
- Sensitivity: Adjustable switching distance
- Ambient temperature -5...85 °C
- Additional features:
- Dimensions 40 x 40 x 10 mm
- Operating voltage display: Yes
- Function display: Yes
- Rated operating voltage Ue DC 24 V
- Rated operating current Ie 100 mA
- Rated insulation voltage UI 75 V DC
- Standby delay TV max.: 25 ms
- Operating voltage Ub 10...30 VDC
- Usage category: DC-13
- Load capacity max. at Ue 10 µF
- Residual ripple max. (% of Ue): 10%
- Switching frequency 100 Hz
- Static voltage drop: 2.5 V
- M8x1 connection, 3-pin
- Short-circuit protection: Yes
- Reverse polarity protection: Yes
- Exchange possibility protected: Yes
- Hysteresis H max. (% of Sr): 15.0%
- Rated switching distance Sn: 20 mm
- Temperature drift max. (% of Sr): 20 % [-5…55 °C]
- Repeatability max. (% of Sr): 5.0%
- MTTF (40 °C) 195 a
- Active surface, material: PBT
- Size: Square shape
- Flush mounting: Flush mounting
- Switching output: PNP NO
- Cable diameter D 3.00 mm
- Cable length 0.3 m
- PBT casing material
- Sheath material: PUR
- Protection class IP67
- Ambient temperature -5...85 °C
- Pollution level 1
- Number of conductors: 3
- Conductor cross-section: 0.14 mm²
- Number of pins: 3
- Brand: Global
- Q40 series
- Idle current IO max. at Ue 15 mA
- Sensitivity: Adjustable switching distance
- Measurement range 1...20 mm
- Cover material PBT
- Packaging type
Single
- Product type
Capacitive sensor
- Type
BCS00U6
- Min. operating voltage
10.0 V
- Max. operating voltage
30.0 V
- Operating voltage
10.0 - 30.0 V
- Contact type
1 PNP
- Outputs
PNP
- Enclosure material
PBT
- Model
Capacitive
- Installation type
shielded
- Connector
Plug
- Cable length
0.30 m
- Min. temperature
-5 °C
- Max. temperature
85 °C
IP67
- Length
10.00 mm
- Width
40.00 mm
- Height
40.00 mm
- Dim
(L x W x H) 10.00 x 40.00 x 40.00 mm
- Content
1 pc(s)
- Nominal voltage
30.0 V
- Jacket material
PUR
- Operating voltage
24 V DC
- Switching frequency
100 Hz
- Operating current
100 mA
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3416779 BALLUFF Capacitive sensor Capacitive BCS00U6 BCS00U6 shielded PNP (L x W x H) 10.00 x 40.00 x 40.00 mm Single
User & Safety Instructions
User & Safety Instructions 3416779 BALLUFF Capacitive sensor Capacitive BCS00U6 BCS00U6 shielded PNP (L x W x H) 10.00 x 40.00 x 40.00 mm Single
Description
Capacitive sensors for object detection have a straight-line electrical field. You can detect solid bodies such as wafers, circuit boards, cardboard boxes, paper stacks, bottles, Plastic blocks and plates as well as liquids through container walls or pipes made of glass and plastic (thickness max. 4 mm). Dimensions=40 x 40 x 10 mm, series=Q40, built-in=flush, connection=cable with connector, M8x1 plug, 3-pole, 0.30 m, PUR, switching output = PNP NO, switching frequency = 100 Hz, Range=1...20 mm, sensitivity=switching distance adjustable, casing material=PBT, active surface, material=PBT, Ambient temperature=-5...85 °C, operating voltage Ub=10...30 VDC, approval/conformity=CecULusWEEE, protection class=IP67
