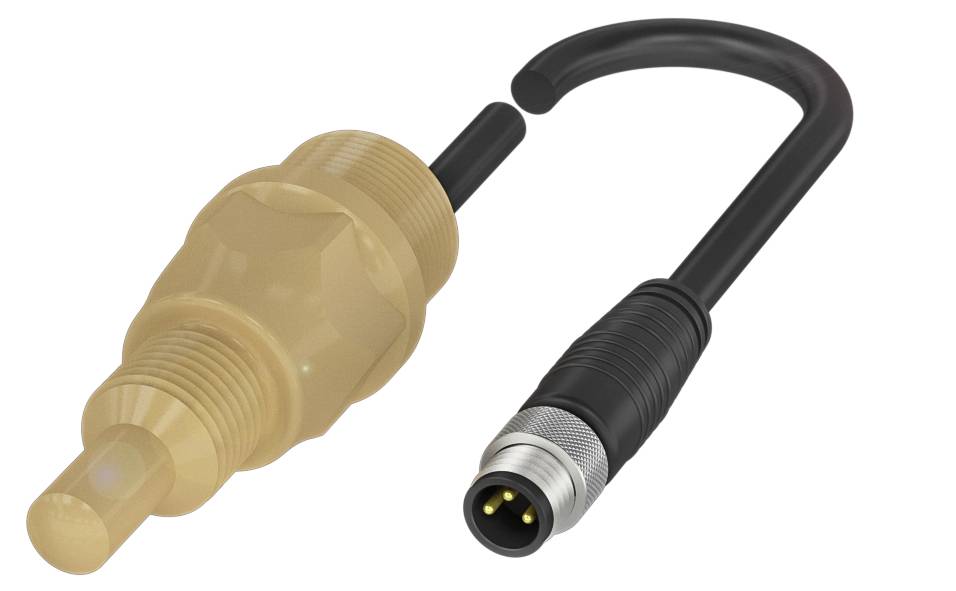

BALLUFF Capacitive sensor Capacitive BCS00ZR BCS00ZR non-shielded PNP (Ø x H) 11.9 mm x 62.5 m
EAN:
Part number:
Item no:
Product type
Capacitive sensor
Max. operating voltage
30.0 V
Outputs
PNP
Model
Capacitive
Connector
G 1/4"
Datasheet (PDF)
Highlights & Details
Balluff BCS00ZR For recording levels of electrically conductive media (Smart level technology)
- Connection: Cable with plug connector, M8x1 plug, 3-pin, 0.30 m, PUR
- Dimensions: Ø 11.9 x 62.5 mm
- Fitting: Non-shielded
- Switching output: PNP NO
- S44 series
Technical specifications
- Main features:Dimensions: Ø 11.9 x 62.5 mm
- Active surface, material: PEEK
- Connection: Cable with plug connector, M8x1 plug, 3-pin, 0.30 m, PUR
- S44 series
- Operating voltage Ub 10...30 VDC
- Fitting: Non-shielded
- Housing material PEEK
- Switching output: PNP NO
- Switching frequency 10 Hz
- Protection class IP67
- Sensitivity: Media-dependent adjustment
- Ambient temperature -5...105 °C
- Additional features:
- Dimensions: Ø 11.9 x 62.5 mm
- Operating voltage display: Yes
- Function display: Yes
- Rated operating voltage Ue DC 24 V
- Rated operating current Ie 50 mA
- Rated insulation voltage UI 75 V DC
- Standby delay TV max.: 100 ms
- Operating voltage Ub 10...30 VDC
- Usage category: DC-13
- Load capacity max. at Ue 10 µF
- Residual ripple max. (% of Ue): 10%
- Switching frequency 10 Hz
- Static voltage drop: 2 V
- M8x1 connection, 3-pin
- Short-circuit protection: Yes
- Reverse polarity protection: Yes
- Exchange possibility protected: Yes
- MTTF (40 °C) 250 a
- Active surface, material: PEEK
- Tightening torque 1.5 Nm
- Installation size G1/4"
- Fitting: Non-shielded
- Switching output: PNP NO
- Cable diameter D 4.70 mm
- Cable length 0.3 m
- Housing material PEEK
- Sheath material: PUR
- Protection class IP67, active surface: IP68 10 bar
- Ambient temperature -5...105 °C
- Pollution level 3
- Number of pins: 3
- S44 series
- Idle current IO max. at Ue 11 mA
- Sensitivity: Media-dependent adjustment
- Cover material PA
- Thread (A) G 1/4"
- Product type
Capacitive sensor
- Type
BCS00ZR
- Min. operating voltage
10.0 V
- Max. operating voltage
30.0 V
- Operating voltage
10.0 - 30.0 V
- Outputs
PNP
- Cable length
0.30 m
- Switching frequency
10 Hz
- Model
Capacitive
- Connector
G 1/4"
- Installation type
non-shielded
- Enclosure material
PEEK
IP67
- Min. temperature
-5 °C
- Max. temperature
105 °C
- Length
62.50 mm
- Width
62.5 mm
- Height
62.5 m
- (Ø)
11.9 mm
- Dim
(Ø x H) 11.9 mm x 62.5 m
- Jacket material
PUR
- Nominal voltage
30.0 V
- Operating voltage
24 V DC
- Operating current
50 mA
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3416771 BALLUFF Capacitive sensor Capacitive BCS00ZR BCS00ZR non-shielded PNP (Ø x H) 11.9 mm x 62.5 m
User & Safety Instructions
User & Safety Instructions 3416771 BALLUFF Capacitive sensor Capacitive BCS00ZR BCS00ZR non-shielded PNP (Ø x H) 11.9 mm x 62.5 m
Description
These capacitive sensors for level detection detect with their active surface the product, bulk material or liquids to be scanned in contact with the medium. Its spherical electrical field effectively compensates for adhesion to the active surface of the sensor. Dimensions = Ø 11.9 x 62.5 mm, series = S44, thread (A) = G 1/4", installation = not flush, connection = cable with connector, M8x1 plug, 3-pin, 0.30 m, PUR, switching output = PNP NO, Switching frequency=10 Hz, sensitivity=medium-dependent adjustable, casing material=PEEK, active surface, material=PEEK, Ambient temperature=-5...105 °C, operating voltage Ub=10...30 VDC, approval/conformity=CEWEEE, protection class=IP67
