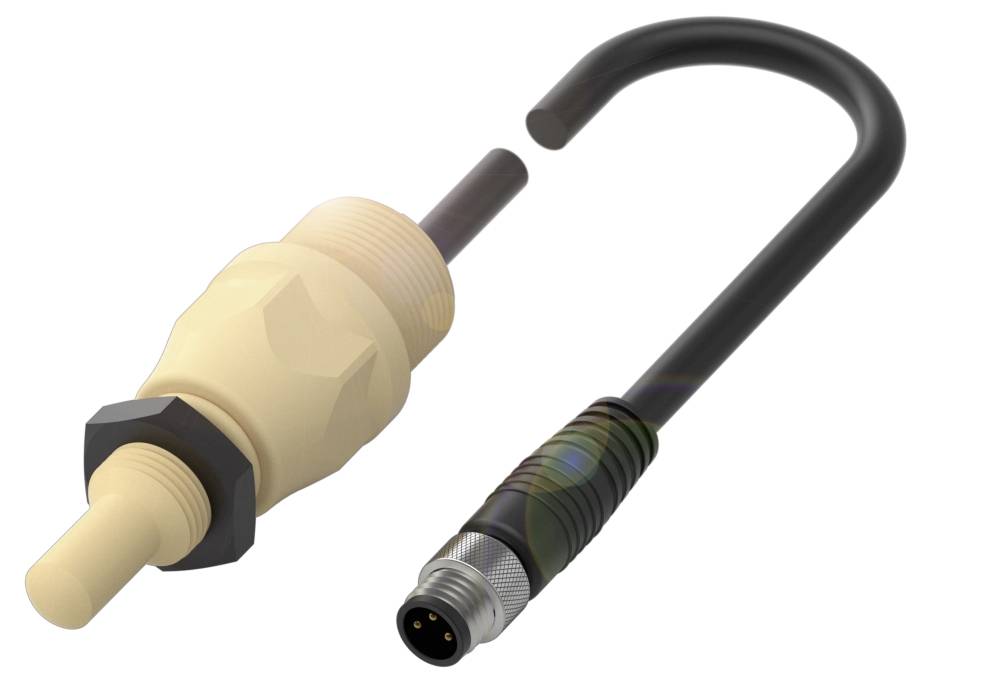

BALLUFF Capacitive sensor Capacitive BCS0106 BCS0106 M12 non-shielded PNP (Ø x L) 12 mm x 62.50 mm
EAN:
Part number:
Item no:
Product type
Capacitive sensor
Max. operating voltage
30.0 V
Outputs
PNP
Model
Capacitive
Connector
M12
Datasheet (PDF)
Highlights & Details
Balluff BCS0106 For reading the levels of electrically conductive media (Smart level technology)
- Connection: Cable with plug connector, M8x1 plug, 3-pin, 0.30 m, PUR
- Dimensions: Ø 12 x 62.5 mm
- Fitting: Non-shielded
- Switching output: PNP NC
- S44 series
Technical specifications
- Main features:Dimensions: Ø 12 x 62.5 mm
- Active surface, material: PEEK
- Connection: Cable with plug connector, M8x1 plug, 3-pin, 0.30 m, PUR
- S44 series
- Operating voltage Ub 10...30 VDC
- Fitting: Non-shielded
- Smart level 15 function
- Housing material PEEK
- Switching output: PNP NC
- Switching frequency 5 Hz
- Protection class IP67
- Sensitivity: Media-dependent adjustment
- Ambient temperature -5...105 °C, UL-approval only up to 85 °C.
- Additional properties: Electrically conductive media
- Foam- and adhesion compensation
- Additional features:
- Scope of delivery: Nut + O-ring Ø10x2|screwdriver|quick start guide
- Dimensions: Ø 12 x 62.5 mm
- Operating voltage display: Yes
- Function display: Yes
- Rated operating voltage Ue DC 24 V
- Rated operating current Ie 50 mA
- Rated insulation voltage UI 75 V DC
- Standby delay TV max.: 100 ms
- Operating voltage Ub 10...30 VDC
- Usage category: DC-13
- Load capacity max. at Ue 10 µF
- Residual ripple max. (% of Ue): 10%
- Switching frequency 5 Hz
- Static voltage drop: 2 V
- M8x1 connection, 3-pin
- Short-circuit protection: Yes
- Reverse polarity protection: Yes
- Exchange possibility protected: Yes
- MTTF (40 °C) 135 a
- Active surface, material: PEEK
- Tightening torque 1.5 Nm
- Size M12x1
- Fitting: Non-shielded
- Switching output: PNP NC
- Cable diameter D 4.70 mm
- Cable length 0.3 m
- Housing material PEEK
- Sheath material: PUR
- Protection class IP67, active surface: IP68 10 bar
- Ambient temperature: -5...105 °C, UL-approval only up to|85 °C.
- Pollution level 3
- Number of pins: 3
- S44 series
- Idle current IO max. at Ue 12 mA
- Additional properties: Electrically conductive media|Foam and|adhesion compensation
- Sensitivity: Media-dependent adjustment
- Cover material PA
- Thread (A) M12x1
- Product type
Capacitive sensor
- Type
BCS0106
- Min. operating voltage
10.0 V
- Max. operating voltage
30.0 V
- Operating voltage
10.0 - 30.0 V
- Outputs
PNP
- Cable length
0.30 m
- Switching frequency
5 Hz
- Model
Capacitive
- Connector
M12
- Installation type
non-shielded
- Size
M12
- Enclosure material
PEEK
- Contact type
1 PNP
IP67
- Min. temperature
-5 °C
- Max. temperature
105 °C
- Length
62.50 mm
- Width
62.5 mm
- (Ø)
12 mm
- Dim
(Ø x L) 12 mm x 62.50 mm
- Jacket material
PUR
- Nominal voltage
30.0 V
- Operating voltage
24 V DC
- Operating current
50 mA
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3416670 BALLUFF Capacitive sensor Capacitive BCS0106 BCS0106 M12 non-shielded PNP (Ø x L) 12 mm x 62.50 mm
User & Safety Instructions
User & Safety Instructions 3416670 BALLUFF Capacitive sensor Capacitive BCS0106 BCS0106 M12 non-shielded PNP (Ø x L) 12 mm x 62.50 mm
Description
These capacitive sensors for level detection detect with their active surface the product, bulk material or liquids to be scanned in contact with the medium. Its spherical electrical field effectively compensates for adhesion to the active surface of the sensor. Dimension=Ø 12 x 62.5 mm, series=S44, thread (A)=M12x1, installation=not flush, connection=cable with connector, M8x1 plug, 3-pin, 0.30 m, PUR, switching output = PNP NC, Switching frequency=5 Hz, sensitivity=adjustable depending on the medium, function=Smart level 15, additional features=electrically conductive medium foam- and adhesion compensation, casing material=PEEK, active surface, material=PEEK, ambient temperature=-5...105 °C, Operating voltage Ub=10...30 VDC, approval/conformity=CEWEEE, protection class=IP67
