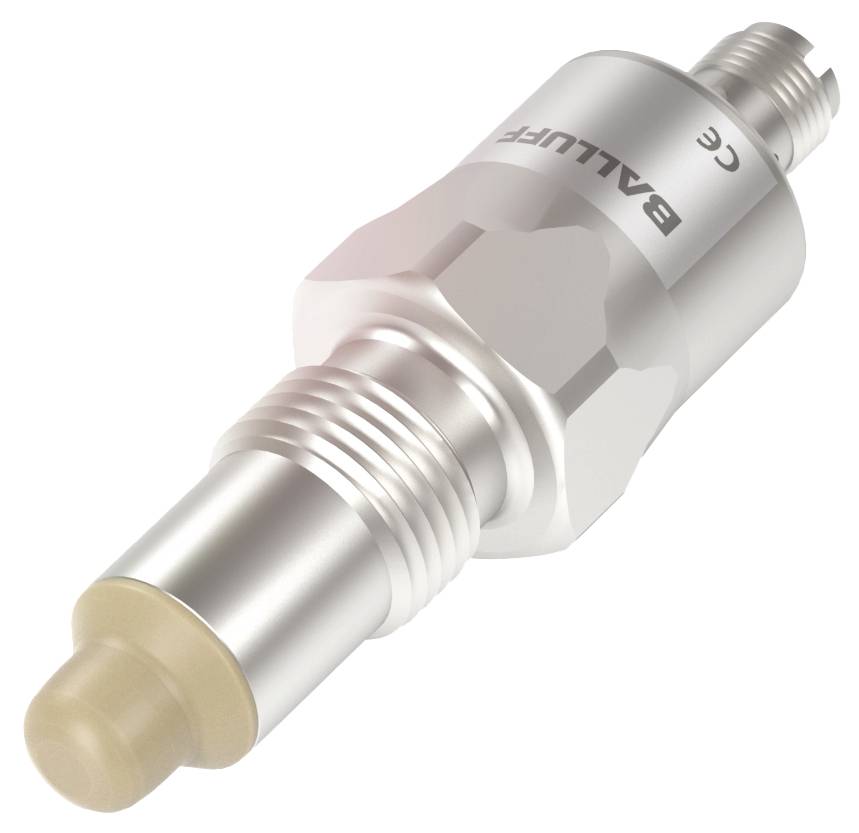

BALLUFF Capacitive sensor Capacitive BCS011F BCS011F M30 non-shielded PNP (Ø x H) 30 mm x 96 m
EAN:
Part number:
Item no:
Product type
Capacitive sensor
Max. operating voltage
30.0 V
Outputs
PNP
Model
Capacitive
Connector
Plug
Datasheet (PDF)
Highlights & Details
Balluff BCS011F For recording fill levels of electrically conductive media (Smart level technology)
- Connection: Connector, M12x1 connector, 4-pin
- Dimensions: Ø 30 x 96 mm
- Fitting: Non-shielded
- Switching output: PNP NO
- S04 series
Technical specifications
- Main features:Dimensions: Ø 30 x 96 mm
- Active surface, material: PEEK
- Connection: Connector, M12x1 connector, 4-pin
- S04 series
- Operating voltage Ub 12...30 VDC
- Fitting: Non-shielded
- Smart level 100 function
- Housing material: Stainless steel (1.4404)
- Switching output: PNP NO
- Switching frequency 5 Hz
- Protection class: IP68
- Sensitivity: Media-dependent, teachable
- Ambient temperature -40...85 °C
- Additional properties: Electrically conductive media
- Foam- and adhesion compensation
- Additional features:
- Supplied with mounting instructions
- Dimensions: Ø 30 x 96 mm
- Operating voltage display: No.
- Function display: Yes
- Rated operating voltage Ue DC 24 V
- Rated operating current Ie 50 mA
- Rated insulation voltage UI 75 V DC
- Standby delay TV max.: 200 ms
- Operating voltage Ub 12...30 VDC
- Usage category: DC-13
- Load capacity max. at Ue 0.33 µF
- Residual ripple max. (% of Ue): 10%
- Switching frequency 5 Hz
- Static voltage drop: 2 V
- Connection: M12x1 4-pin connector, A-coded
- Short-circuit protection: Yes
- Reverse polarity protection: Yes
- Exchange possibility protected: Yes
- MTTF (40 °C) 94 a
- Active surface, material: PEEK
- Tightening torque: 20...25 Nm
- Size D30.0
- Fitting: Non-shielded
- Switching output: PNP NO
- Housing material: Stainless steel (1.4404)
- Protection class IP68, IP69K at the plug output
- Ambient temperature -40...85 °C
- Pollution level 3
- Number of pins: 4
- Setting option: Teach
- S04 series
- Idle current IO max. at Ue 17.0 mA
- Additional properties: Electrically conductive media|Foam and|adhesion compensation
- Sensitivity: Media-dependent, teachable
- Cover material: Stainless steel (1.4404)
- Thread (A) G 1/2"
- Compressive strength max. 16 bar
- Max. Media temperature: 105°C.
- Product type
Capacitive sensor
- Type
BCS011F
- Min. operating voltage
12.0 V
- Max. operating voltage
30.0 V
- Operating voltage
12.0 - 30.0 V
- Outputs
PNP
- Switching frequency
5 Hz
- Model
Capacitive
- Connector
Plug
- Installation type
non-shielded
- Size
M30
- Material properties
rust-proof
- Enclosure material
Stainless steel
- Contact type
1 PNP
IP68
- Min. temperature
-40 °C
- Max. temperature
85 °C
- Length
96.00 mm
- Width
96 mm
- Height
96 m
- (Ø)
30 mm
- Dim
(Ø x H) 30 mm x 96 m
- Nominal voltage
30.0 V
- Operating voltage
24 V DC
- Operating current
50 mA
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3416770 BALLUFF Capacitive sensor Capacitive BCS011F BCS011F M30 non-shielded PNP (Ø x H) 30 mm x 96 m
User & Safety Instructions
User & Safety Instructions 3416770 BALLUFF Capacitive sensor Capacitive BCS011F BCS011F M30 non-shielded PNP (Ø x H) 30 mm x 96 m
Description
These capacitive sensors for level detection detect with their active surface the product, bulk material or liquids to be scanned in contact with the medium. Its spherical electrical field effectively compensates for adhesion to the active surface of the sensor. Dimensions = Ø 30 x 96 mm, series = S04, thread (A) = G 1/2", installation = not flush, connection = plug connector, M12x1 plug, 4-pin, switching output = PNP NO (NO), switching frequency = 5 Hz, sensitivity = media-dependent teachable, Function=Smart level 100, Additional properties=electrically conductive medium foam- and adhesion compensationCIP/SIP enabled, casing material=stainless steel (1.4404), active surface, material=PEEK, ambient temperature=-40...85 °C, Operating voltage Ub=12...30 VDC, approval/conformity=EHEDG certified CEWEEIO-LinkcULus LISTED, protection class=IP68
