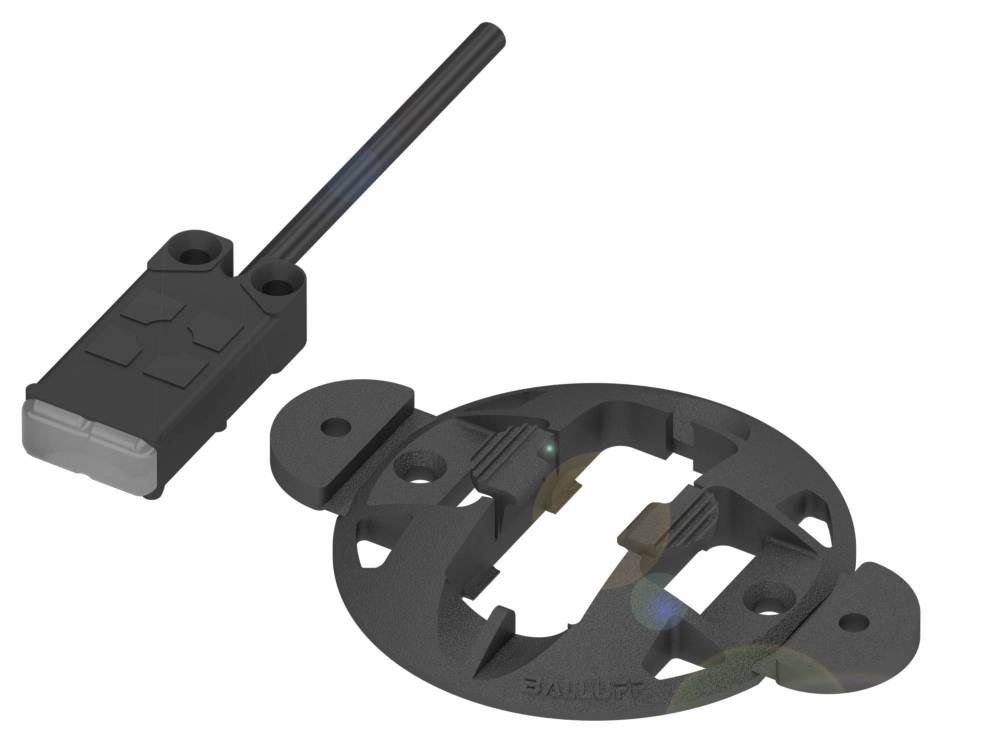

BALLUFF Capacitive sensor Capacitive BCS012A BCS012A shielded PNP (L x W x H) 8.00 x 34.00 x 16.00 mm Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Capacitive sensor
Max. operating voltage
30.0 V
Contact type
1 maker
Outputs
PNP
Datasheet (PDF)
Highlights & Details
Balluff BCS012A Cubic design with learning switching distance
- Connection: Cable, 2.00 m, PUR
- Dimensions 34 x 16 x 8 mm
- Flush mounting: Flush mounting
- Switching output: PNP NO
- R08 series
Technical specifications
- Main features:Dimension 34 x 16 x 8 mm
- Active surface, material: PP
- Connection: Cable, 2.00 m, PUR
- R08 series
- Operating voltage Ub 12...30 VDC
- Flush mounting: Flush mounting
- Housing material PP
- Range 1...8 mm
- Switching output: PNP NO
- Switching frequency 50 Hz
- Protection class IP67
- Sensitivity: Sensing distance is detectable
- Ambient temperature: -25 to 70 °C
- Additional features:
- Delivery scope: Holder|Installation instructions
- Operating voltage display: Yes
- Function display: Yes
- Rated operating voltage Ue DC 24 V
- Rated operating current Ie 50 mA
- Rated insulation voltage UI 75 V DC
- Standby delay TV max.: 200 ms
- Operating voltage Ub 12...30 VDC
- Usage category: DC-13
- Load capacity max. at Ue 0.33 µF
- Residual current l max. 10 µA
- Residual ripple max. (% of Ue): 10%
- Switching frequency 50 Hz
- Short-circuit protection: Yes
- Reverse polarity protection: Yes
- Exchange possibility protected: Yes
- Hysteresis H max. (% of Sr): 20.0%
- Real switching distance Sr:8 mm
- Temperature drift max. (% of Sr): 20 % [-5…55 °C]
- Repeatability max. (% of Sr): 5.0%
- MTTF (40 °C) 98 a
- Active surface, material: PP
- Cable diameter D 3.40 mm
- Cable length 2 m
- Housing material PP
- Sheath material: PUR
- Number of conductors: 4
- Conductor cross-section: 0.14 mm²
- Setting option: Teach
- Brand: Global
- R08 series
- Idle current IO max. at Ue 12.5 mA
- Sensitivity: Sensing distance is detectable
- Measurement range 1...8 mm
- Cover material PP
- Voltage drop, static max. Electrical connection 1.5 V.
- Packaging type
Piece
- Product type
Capacitive sensor
- Type
BCS012A
- Min. operating voltage
12.0 V
- Max. operating voltage
30.0 V
- Operating voltage
12.0 - 30.0 V
- Contact type
1 maker
- Outputs
PNP
- Enclosure material
PP
- Model
Capacitive
- Installation type
shielded
- Connector
Cable
- Cable length
2.00 m
- Min. temperature
-25 °C
- Max. temperature
70 °C
IP67
- Length
8.00 mm
- Width
34.00 mm
- Height
16.00 mm
- Depth
8 m
- Dim
(L x W x H) 8.00 x 34.00 x 16.00 mm
- Content
1 pc(s)
- Nominal voltage
30.0 V
- Jacket material
PUR
- Operating voltage
24 V DC
- Switching frequency
50 Hz
- Operating current
50 mA
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3416805 BALLUFF Capacitive sensor Capacitive BCS012A BCS012A shielded PNP (L x W x H) 8.00 x 34.00 x 16.00 mm Piece
User & Safety Instructions
User & Safety Instructions 3416805 BALLUFF Capacitive sensor Capacitive BCS012A BCS012A shielded PNP (L x W x H) 8.00 x 34.00 x 16.00 mm Piece
Description
Capacitive sensors for object detection have a straight-line electrical field. You can detect solid bodies such as wafers, circuit boards, cardboard boxes, paper stacks, bottles, Plastic blocks and plates as well as liquids through container walls or pipes made of glass and plastic (thickness max. 4 mm). Dimensions = 34 x 16 x 8 mm, series = R08, installation = flush, connection = cable, 2.00 m, PUR, switching output=PNP NO (NO), switching frequency=50 Hz, range=1...8 mm, sensitivity=switching distance steerable, Housing material=PP, Active surface, material=PP, ambient temperature=-25...70 °C, operating voltage Ub=12...30 VDC, Approval/conformity=CecULusWEEE, protection class=IP67
