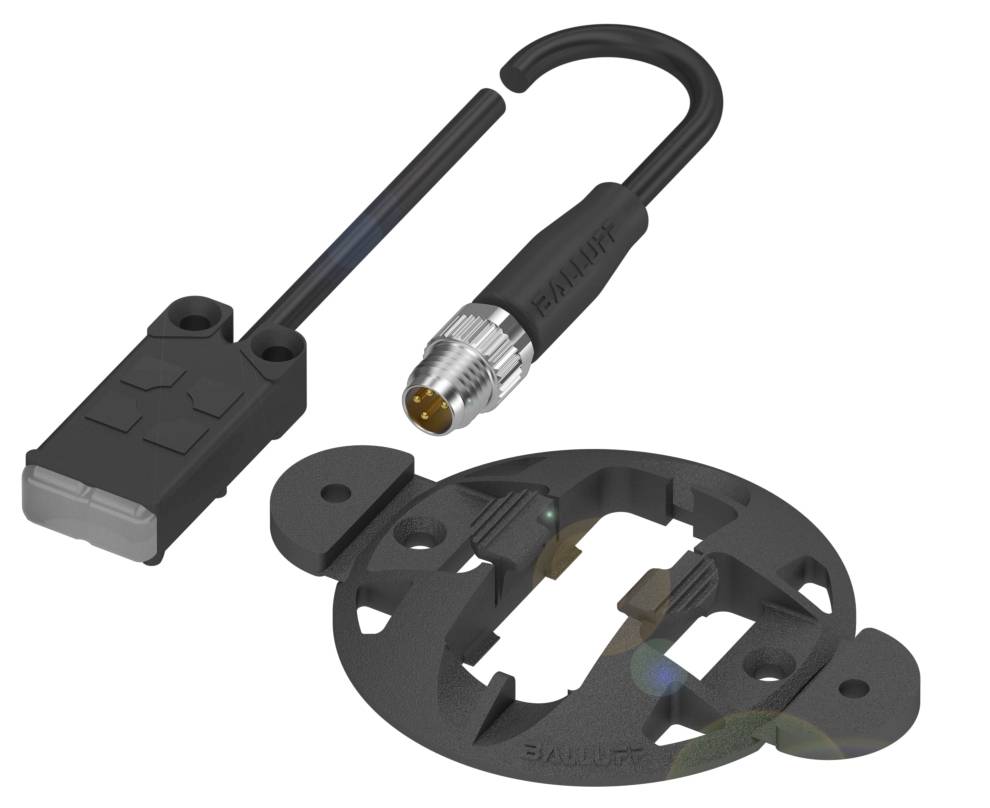

BALLUFF Capacitive sensor Capacitive BCS0130 BCS0130 shielded PNP (L x W x H) 8.00 x 34 x 16 mm
EAN:
Part number:
Item no:
Product type
Capacitive sensor
Max. operating voltage
30.0 V
Outputs
PNP
Model
Capacitive
Connector
Plug
Datasheet (PDF)
Highlights & Details
Balluff BCS0130 Cubic design with learning switching distance
- Connection: Cable with plug connector, M8x1 plug, 4-pin, 0.30 m, PUR
- Dimensions 34 x 16 x 8 mm
- Mounting: Flush to outer container wall
- Switching output: PNP NC
- R08 series
Technical specifications
- Main features:Dimension 34 x 16 x 8 mm
- Active surface, material: PP
- Connection: Cable with plug connector, M8x1 plug, 4-pin, 0.30 m, PUR
- R08 series
- Operating voltage Ub 12...30 VDC
- Mounting: Flush to outer container wall
- Smart level 50 function
- Housing material PP
- Switching output: PNP NC
- Switching frequency 10 Hz
- Protection class IP67
- Sensitivity: Media-dependent, teachable
- Ambient temperature: -25 to 70 °C
- Additional properties: Electrically conductive media
- Foam- and adhesion compensation
- Additional features:
- Delivery scope: Holder|Installation instructions
- Dimensions 34 x 16 x 8 mm
- Operating voltage display: Yes
- Function display: Yes
- Rated operating voltage Ue DC 24 V
- Rated operating current Ie 50 mA
- Rated insulation voltage UI 75 V DC
- Standby delay TV max.: 200 ms
- Operating voltage Ub 12...30 VDC
- Usage category: DC-13
- Load capacity max. at Ue 0.33 µF
- Residual current l max. 10 µA
- Residual ripple max. (% of Ue): 10%
- Switching frequency 10 Hz
- Static voltage drop: 1.5 V
- M8x1 connection, 4-pin
- Short-circuit protection: Yes
- Reverse polarity protection: Yes
- Exchange possibility protected: Yes
- MTTF (40 °C) 98 a
- Active surface, material: PP
- Tightening torque 0.2 Nm
- Size: Square shape
- Mounting: Flush to outer container wall
- Switching output: PNP NC
- Cable diameter D 3.4 mm
- Cable length 0.3 m
- Housing material PP
- Sheath material: PUR
- Protection class IP67
- Ambient temperature: -25 to 70 °C
- Pollution level 3
- Number of conductors: 4
- Conductor cross-section: 0.14 mm²
- Number of pins: 4
- Setting option: Teach
- R08 series
- Idle current IO max. at Ue 13.5 mA
- Additional properties: Electrically conductive media|Foam and|adhesion compensation
- Sensitivity: Media-dependent, teachable
- Product type
Capacitive sensor
- Type
BCS0130
- Min. operating voltage
12.0 V
- Max. operating voltage
30.0 V
- Operating voltage
12.0 - 30.0 V
- Outputs
PNP
- Cable length
0.30 m
- Switching frequency
10 Hz
- Model
Capacitive
- Connector
Plug
- Installation type
shielded
- Enclosure material
PP
IP67
- Min. temperature
-25 °C
- Max. temperature
70 °C
- Length
8.00 mm
- Width
34 mm
- Height
16 mm
- Dim
(L x W x H) 8.00 x 34 x 16 mm
- Depth
8 m
- Jacket material
PUR
- Nominal voltage
30.0 V
- Operating voltage
24 V DC
- Operating current
50 mA
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3416773 BALLUFF Capacitive sensor Capacitive BCS0130 BCS0130 shielded PNP (L x W x H) 8.00 x 34 x 16 mm
User & Safety Instructions
User & Safety Instructions 3416773 BALLUFF Capacitive sensor Capacitive BCS0130 BCS0130 shielded PNP (L x W x H) 8.00 x 34 x 16 mm
Description
These capacitive sensors for level detection detect with their active surface contact-free the product, bulk material or liquids through glass and plastic walls. Dimensions=34 x 16 x 8 mm, series=R08, installation=flush to outer wall of container, connection=cable with connector, M8x1 plug, 4-pole, 0.30 m, PUR, switching output = PNP NC, switching frequency = 10 Hz, Sensitivity=media-dependent, function=Smart level 50, additional features=electrically conductive medium foam- and adhesion compensation, casing material=PP, active surface, material=PP, ambient temperature=-25...70 °C, Operating voltage Ub=12...30 VDC, approval/conformity=cULusCEWEEE, protection class=IP67
