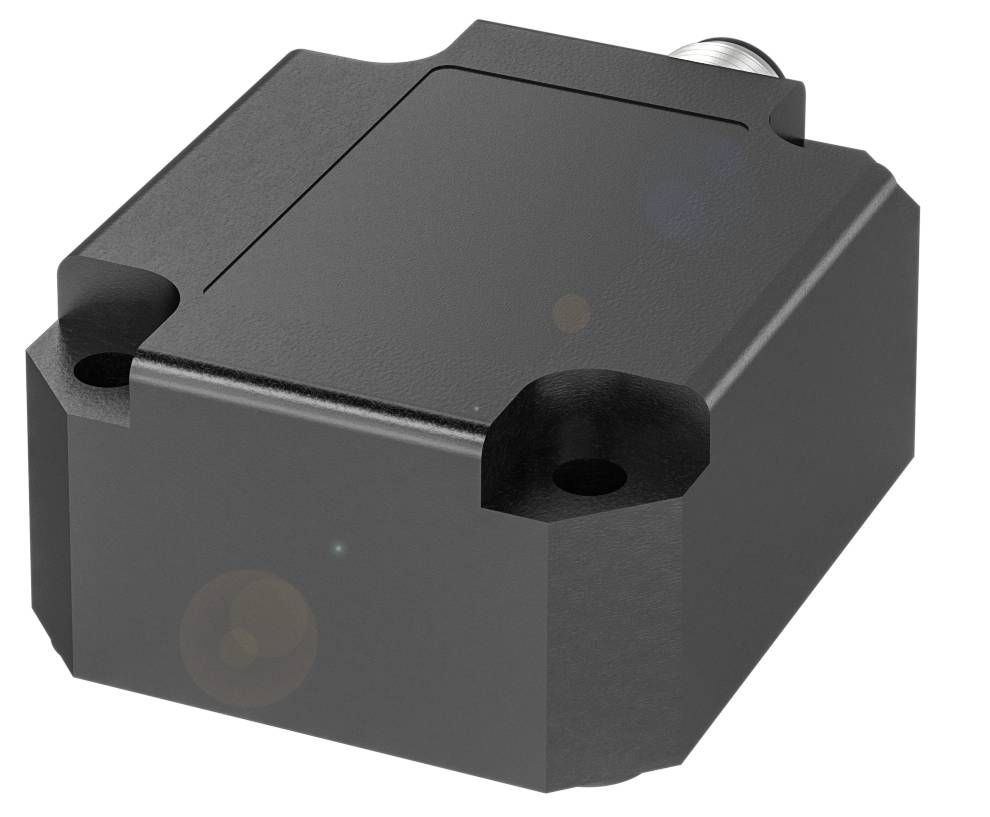

BALLUFF Clinometer BSI0005 BSI0005 Reading range: 90 - -90 ° Analogue M12 x 1 Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Clinometer
Max. operating voltage
30 V
Reading range (max.)
-90 °
Outputs
Analogue
Datasheet (PDF)
Highlights & Details
Balluff BSI0005 Cubic design with one or two measuring axles
- Operating voltage Ub 12...30 VDC
- Interface: Analog, voltage 0…10 V.
- Measuring range: -90...90°
- Measuring principle: MEMS
- Measuring axles: 1
Technical specifications
- Main features:Connection: Connector, M12x1
- Resolution ≤ 0.01°
- Operating voltage Ub 12...30 VDC
- Housing material: Plastic
- Accuracy: ± 0.2°
- Measuring axles: 1
- Measuring range: -90...90°
- Measuring principle: MEMS
- Interface: Analog, voltage 0…10 V.
- Protection class IP67
- Ambient temperature -40...80 °C
- Additional text: Centering possible over 360° in vertical position
- Additional features:
- Dimensions 50 x 27 x 78 mm
- Mounting: Screws
- Rated operating voltage Ue DC 24 V
- Standby delay TV max.: 1 s
- Operating voltage Ub 12...30 VDC
- Protection class III
- M12x1 connection
- Short-circuit protection: Yes
- Reverse polarity protection: Yes
- Option to switch, protected: No.
- MTTF (40 °C) 121 a
- Housing material: Plastic
- EN 60068-2-27, Shock: Yes
- EN 60068-2-6, Vibration: Yes
- Protection class IP67
- Ambient temperature -40...80 °C
- Pollution level 3
- Storage temperature: -40...85 °C
- Weight: 110 g
- Power consumption max. 25 mA
- Resolution ≤ 0.01°
- Accuracy: ± 0.2°
- Relative humidity: 95%, non-condensing
- Measuring principle: MEMS
- Load resistance min., analogue output: 20 kOhm
- Sampling rate 20 ms
- Temperature drift max.: ±0.1° / 10 K
- Measuring axles: 1
- Direction of rotation Interface: Clockwise
- Analog output environmental conditions: Analog, voltage 0...10 V.
- Packaging type
Piece
- Product type
Clinometer
- Type
BSI0005
- Min. operating voltage
12 V
- Max. operating voltage
30 V
- Operating voltage
12 - 30 V
- Operating current
24 mA
- Reading range (min.)
90°
- Reading range (max.)
-90°
- Reading range
90 - -90 °
- Resolution
0.01°
- No. of axles
1
- Outputs
Analogue
- Output signal (min.)
0 V
- Output signal (max.)
10 V
- Connector
M12 x 1
- Enclosure material
Plastic
- Mounting type
Screw fastening
- Interfaces
Analogue
- Min. temperature
-40 °C
- Max. temperature
80 °C
IP67
- Length
78.0 mm
- Width
50.0 mm
- Height
27.0 mm
- Content
1 pc(s)
- Nominal voltage
30 V
- Material
Plastic
- Operating voltage
24 V DC
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3418131 BALLUFF Clinometer BSI0005 BSI0005 Reading range: 90 - -90 ° Analogue M12 x 1 Piece
User & Safety Instructions
User & Safety Instructions 3418131 BALLUFF Clinometer BSI0005 BSI0005 Reading range: 90 - -90 ° Analogue M12 x 1 Piece
Description
Inclination sensors continuously detect rotational movements in one axis. Measuring principle=MEMS-based measuring system, measuring axes=1, measuring range=-90...90°, operating voltage Ub=12...30 VDC, interface=analogue, Voltage 0.10 V, resolution=? 0.01 °, accuracy=±0.2°, connector=connector, M12x1, housing material=plastic, Ambient temperature=-40...85 °C, protection class=IP67, approval/conformity=CecULusWEEE, additional text=centering over 360° possible in vertical position
