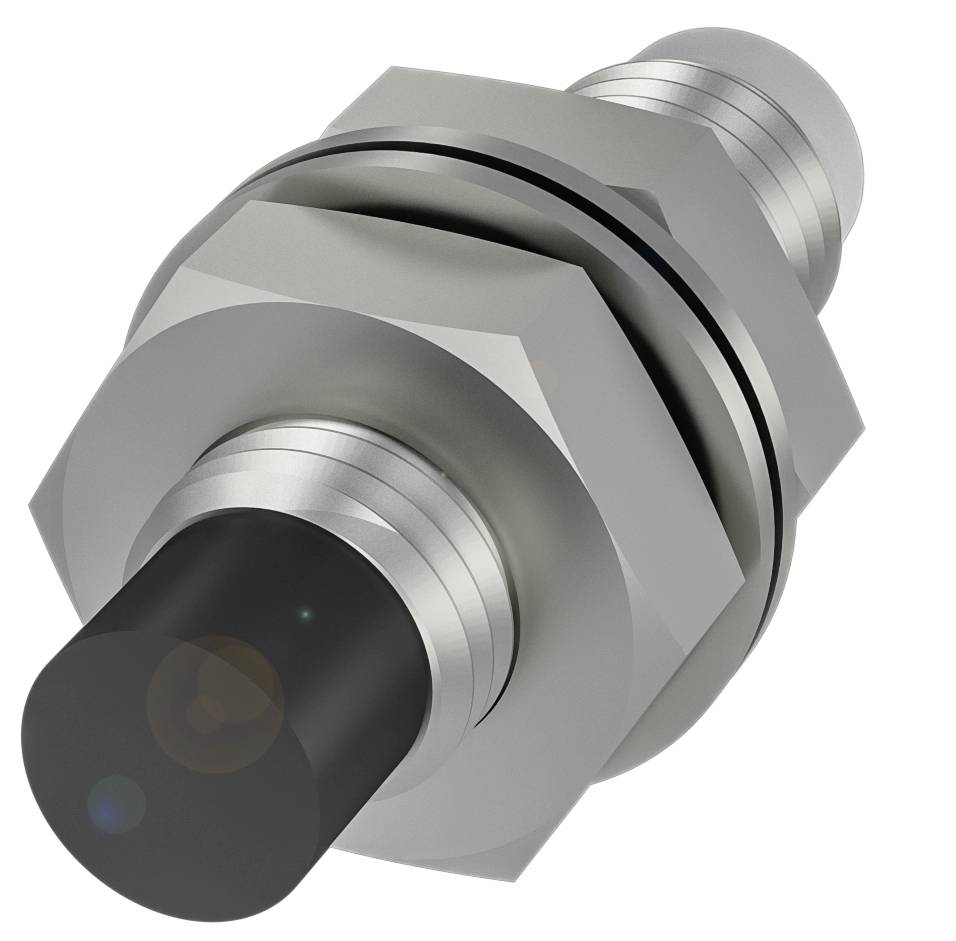

BALLUFF Inductive sensor Inductive BES000K BES000K M8 non-shielded NPN (Ø x H) 8 mm x 30 m Single
EAN:
Part number:
Item no:
Packaging type
Single
Product type
Inductive sensor
Max. operating voltage
30.0 V
Outputs
NPN
Switching distance (max.)
3.2 mm
Datasheet (PDF)
Highlights & Details
Balluff BES000K Inductive Proximity Switches
- Dimensions: Ø 8 x 30 mm
- M8x1 design
- Fitting: Non-shielded
- Range: 4 mm
- Switching output: NPN no (NO)
Technical specifications
- Main features:Dimensions: Ø 8 x 30 mm
- Active surface, material: PBT
- Connection: Plug connector, M8x1 plug, 3-pin
- M8x1 design
- Operating voltage Ub 10...30 VDC
- Fitting: Non-shielded
- Housing material: Stainless steel
- Range: 4 mm
- Switching output: NPN no (NO)
- Switching frequency 4000 Hz
- Protection class: IP68
- Ambient temperature: -25...70 °C, temperature drifts max. (% Sr) > 15% is valid from 50...70 °C.
- Additional features:
- Dimensions: Ø 8 x 30 mm
- Operating voltage display: No.
- Function display: Yes
- Output resistance Ra: 33.0 kOhm
- Rated operating voltage Ue DC 24 V
- Rated operating current Ie 200 mA
- Rated insulation voltage UI 250 V AC
- Rated short-circuit current 100 A.
- Standby delay TV max.: 25 ms
- Operating voltage Ub 10...30 VDC
- Usage category: DC-13
- Load capacity max. at Ue 1.0 µF
- Idle current IO max., dammed.: 7 mA
- Idle current IO max., unattenuated: 2 mA
- Residual current l max. 10 µA
- Residual ripple max. (% of Ue): 10%
- Switching frequency 4000 Hz
- Protection class: II
- Static voltage drop: 2.5 V
- M8x1 connection, 3-pin
- Short-circuit protection: Yes
- Reverse polarity protection: Yes
- Exchange possibility protected: Yes
- Guaranteed switching distance of Sa: 3.2 mm
- Hysteresis H max. (% of Sr): 15.0%
- Rated switching distance Sn: 4 mm
- Real switching distance Sr:4 mm
- Real switching distance Sr, tolerance: ±10 %
- Temperature drift max. (% of Sr): 10%
- Repeatability max. (% of Sr): 5.0%
- MTTF (40 °C) 595 a
- Active surface, material: PBT
- Housing material Mechanical characteristics: Stainless steel
- Tightening torque 8 Nm
- Size M8x1
- Mounting length 13.0 mm
- Fitting: Non-shielded
- Switching output: NPN no (NO)
- Switching distance indicator: ■■
- Brand: Global
- Packaging type
Single
- Product type
Inductive sensor
- Type
BES000K
- Min. operating voltage
10.0 V
- Max. operating voltage
30.0 V
- Operating voltage
10.0 - 30.0 V
- Outputs
NPN
- Switching distance (max.)
3.2 mm
- Switching frequency
4000 Hz
- Model
Inductive
- Connector
M8
- Installation type
non-shielded
- Size
M8
- Enclosure material
Stainless steel
IP68
- Min. temperature
-25 °C
- Max. temperature
70 °C
- Length
30.00 mm
- Height
30 m
- (Ø)
8 mm
- Dim
(Ø x H) 8 mm x 30 m
- Nominal voltage
24 V
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3416981 BALLUFF Inductive sensor Inductive BES000K BES000K M8 non-shielded NPN (Ø x H) 8 mm x 30 m Single
User & Safety Instructions
User & Safety Instructions 3416981 BALLUFF Inductive sensor Inductive BES000K BES000K M8 non-shielded NPN (Ø x H) 8 mm x 30 m Single
Description
Our standard inductive sensors are Ideal for object detection in the metal field. They are short circuit proof and operate without contact, i.e. they are wear-free and are resistant to contamination. The sensors are available in designs from Ø 3 mm to 80 × 80 mm square size. Particularly economical solutions enable you to use the robust and reliable inductive global sensors. We can also deliver the wide range of these over 500 preferred versions in high quantities worldwide at short notice. Inductive sensor, Ø 8 x 30 mm, connector, NO (NO), nominal switching distance Sn=4 mm, not flush, Housing material=stainless steel, active surface, material=PBT
