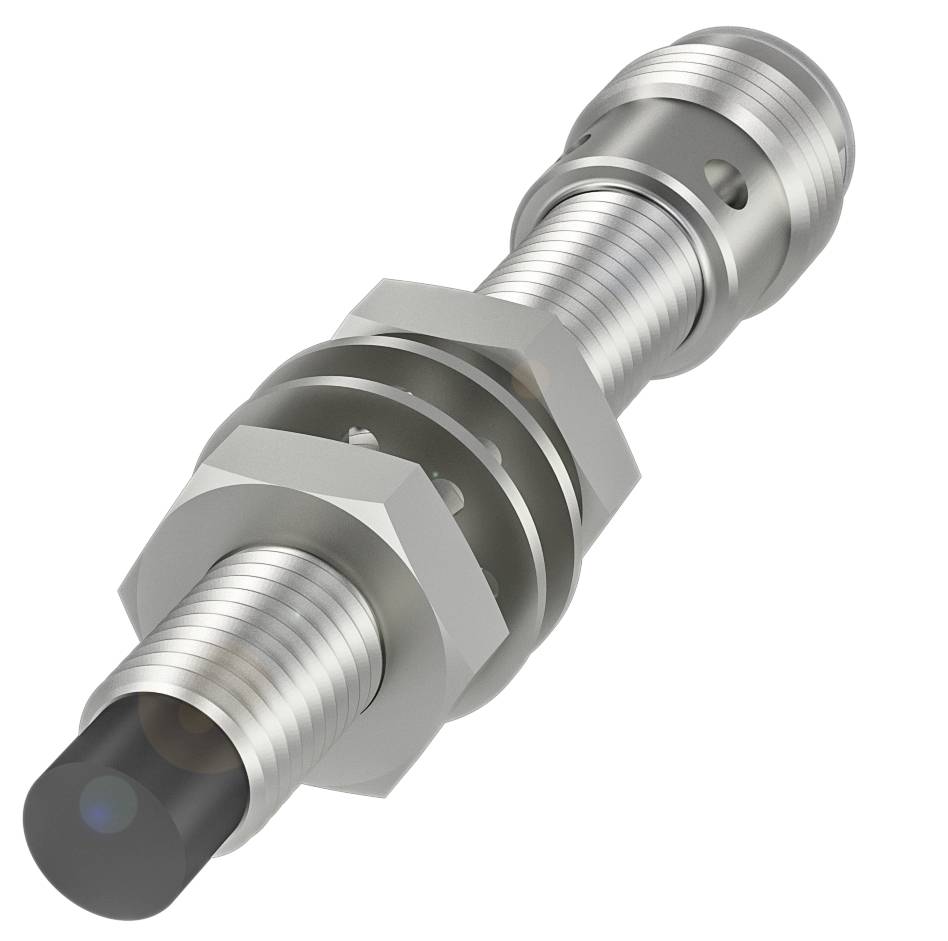

BALLUFF Inductive sensor Inductive BES0018 BES0018 M8 non-shielded NPN (Ø x L) 8 mm x 63.00 mm Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Inductive sensor
Max. operating voltage
30.0 V
Outputs
NPN
Switching distance (max.)
3.2 mm
Datasheet (PDF)
Highlights & Details
Balluff BES0018 Inductive proximity switches
- Dimensions: Ø 8 x 63 mm
- M8x1 design
- Fitting: Non-shielded
- Range: 4 mm
- NPN NC switched output
Technical specifications
- Main features:Dimensions: Ø 8 x 63 mm
- Active surface, material: PBT
- Connection: Connector, M12x1 connector, 3-pin
- M8x1 design
- Operating voltage Ub 10...30 VDC
- Fitting: Non-shielded
- Housing material: Stainless steel
- Range: 4 mm
- NPN NC switched output
- Switching frequency 4000 Hz
- Protection class: IP68
- Ambient temperature: -25...70 °C, temperature drifts max. (% Sr) > 15% is valid from 50...70 °C.
- Additional features:
- Dimensions: Ø 8 x 63 mm
- Operating voltage display: No.
- Function display: Yes
- Output resistance Ra: 33.0 kOhm
- Rated operating voltage Ue DC 24 V
- Rated operating current Ie 200 mA
- Rated insulation voltage UI 250 V AC
- Rated short-circuit current 100 A.
- Standby delay TV max.: 25 ms
- Operating voltage Ub 10...30 VDC
- Usage category: DC-13
- Minimum operating current Im: 0 mA
- Load capacity max. at Ue 1 µF
- Idle current IO max., dammed.: 2 mA
- Idle current IO max., unattenuated: 7 mA
- Residual current l max. 10 µA
- Residual ripple max. (% of Ue): 15%
- Switching frequency 4000 Hz
- Protection class: II
- Static voltage drop: 2.5 V
- Connection: M12x1 3-pin connector, A-coded
- Short-circuit protection: Yes
- Reverse polarity protection: Yes
- Exchange possibility protected: Yes
- Guaranteed switching distance of Sa: 3.2 mm
- Hysteresis H max. (% of Sr): 15.0%
- Rated switching distance Sn: 4 mm
- Real switching distance Sr:4 mm
- Real switching distance Sr, tolerance: ±10 %
- Temperature drift max. (% of Sr): 10%
- Repeatability max. (% of Sr): 5.0%
- MTTF (40 °C) 595 a
- Active surface, material: PBT
- Housing material Mechanical characteristics: Stainless steel
- Tightening torque 8 Nm
- Size M8x1
- Mounting length 43 mm
- Fitting: Non-shielded
- NPN NC switched output
- Switching distance indicator: ■■
- Brand: Global
- Packaging type
Piece
- Product type
Inductive sensor
- Type
BES0018
- Min. operating voltage
10.0 V
- Max. operating voltage
30.0 V
- Operating voltage
10.0 - 30.0 V
- Outputs
NPN
- Switching distance (max.)
3.2 mm
- Switching frequency
4000 Hz
- Model
Inductive
- Connector
M8
- Installation type
non-shielded
- Size
M8
- Enclosure material
Stainless steel
IP68
- Min. temperature
-25 °C
- Max. temperature
70 °C
- Length
63.00 mm
- (Ø)
8 mm
- Dim
(Ø x L) 8 mm x 63.00 mm
- Nominal voltage
24 V
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3416019 BALLUFF Inductive sensor Inductive BES0018 BES0018 M8 non-shielded NPN (Ø x L) 8 mm x 63.00 mm Piece
User & Safety Instructions
User & Safety Instructions 3416019 BALLUFF Inductive sensor Inductive BES0018 BES0018 M8 non-shielded NPN (Ø x L) 8 mm x 63.00 mm Piece
Description
Our standard inductive sensors are Ideal for object detection in the metal field. They are short circuit proof and operate without contact, i.e. they are wear-free and are resistant to contamination. The sensors are available in designs from Ø 3 mm to 80 × 80 mm square size. Particularly economical solutions enable you to use the robust and reliable inductive global sensors. We can also deliver the wide range of these over 500 preferred versions in high quantities worldwide at short notice. Dimensions=Ø 8 x 63 mm, design=M8x1, installation=not flush, range=4 mm, switching output=NPN NC), Switching frequency=4000 Hz, casing material=stainless steel, active surface, material=PBT, connection=connector, M12x1 connector, 3-pin, operating voltage Ub=10...30 VDC, ambient temperature=-25...70 °C, temperature drift max. (% Sr) 15% applies to 50.70 °C, protection class=IP68, approval/conformity=cULusCEEACWEEE
