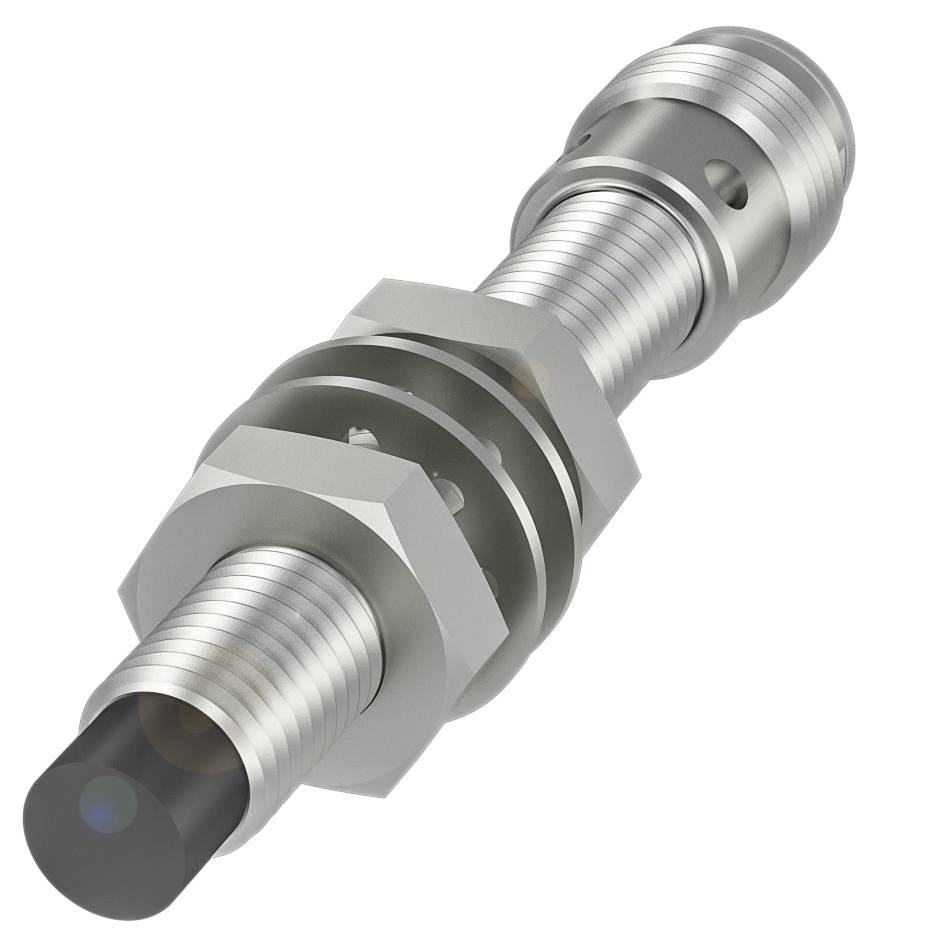

BALLUFF Inductive sensor Inductive BES001H BES001H M8 non-shielded PNP (Ø x H) 8 mm x 63 m
EAN:
Part number:
Item no:
Product type
Inductive sensor
Max. operating voltage
30.0 V
Switching distance (max.)
3.2 mm
Outputs
PNP
Model
Inductive
Datasheet (PDF)
Highlights & Details
Balluff BES001H Inductive Proximity Switches
- Dimensions: Ø 8 x 63 mm
- M8x1 design
- Fitting: Non-shielded
- Range: 4 mm
- Switching output: PNP NO
Technical specifications
- Main features:Dimensions: Ø 8 x 63 mm
- Active surface, material: PBT
- Connection: Connector, M12x1 connector, 3-pin
- M8x1 design
- Operating voltage Ub 10...30 VDC
- Fitting: Non-shielded
- Housing material: Stainless steel
- Range: 4 mm
- Switching output: PNP NO
- Switching frequency 4000 Hz
- Protection class: IP68
- Ambient temperature: -25...70 °C, temperature drifts max. (% Sr) > 15% is valid from 50...70 °C.
- Additional features:
- Dimensions: Ø 8 x 63 mm
- Operating voltage display: No.
- Function display: Yes
- Output resistance Ra: 33.0 kOhm
- Rated operating voltage Ue DC 24 V
- Rated operating current Ie 200 mA
- Rated insulation voltage UI 250 V AC
- Rated short-circuit current 100 A.
- Standby delay TV max.: 25 ms
- Operating voltage Ub 10...30 VDC
- Usage category: DC-13
- Minimum operating current Im: 0 mA
- Load capacity max. at Ue 1 µF
- Idle current IO max., dammed.: 7 mA
- Idle current IO max., unattenuated: 2 mA
- Residual current l max. 10 µA
- Residual ripple max. (% of Ue): 15%
- Switching frequency 4000 Hz
- Protection class: II
- Static voltage drop: 2.5 V
- Connection: M12x1 3-pin connector, A-coded
- Short-circuit protection: Yes
- Reverse polarity protection: Yes
- Exchange possibility protected: Yes
- Guaranteed switching distance of Sa: 3.2 mm
- Hysteresis H max. (% of Sr): 15.0%
- Rated switching distance Sn: 4 mm
- Real switching distance Sr:4 mm
- Real switching distance Sr, tolerance: ±10 %
- Temperature drift max. (% of Sr): 10%
- Repeatability max. (% of Sr): 5.0%
- MTTF (40 °C) 595 a
- Active surface, material: PBT
- Housing material Mechanical characteristics: Stainless steel
- Tightening torque 8 Nm
- Size M8x1
- Mounting length 43 mm
- Fitting: Non-shielded
- Switching output: PNP NO
- Switching distance indicator: ■■
- Brand: Global
- Product type
Inductive sensor
- Type
BES001H
- Min. operating voltage
10.0 V
- Max. operating voltage
30.0 V
- Operating voltage
10.0 - 30.0 V
- Switching distance (max.)
3.2 mm
- Outputs
PNP
- Enclosure material
Stainless steel
- Model
Inductive
- Installation type
non-shielded
- Size
M8
- Connector
M8
- Min. temperature
-25 °C
- Max. temperature
70 °C
IP68
- Length
63.00 mm
- Height
63 m
- (Ø)
8 mm
- Dim
(Ø x H) 8 mm x 63 m
- Content
1 pc(s)
- Nominal voltage
24 V
- Switching frequency
4000 Hz
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3416068 BALLUFF Inductive sensor Inductive BES001H BES001H M8 non-shielded PNP (Ø x H) 8 mm x 63 m
User & Safety Instructions
User & Safety Instructions 3416068 BALLUFF Inductive sensor Inductive BES001H BES001H M8 non-shielded PNP (Ø x H) 8 mm x 63 m
Description
Our standard inductive sensors are Ideal for object detection in the metal field. They are short circuit proof and operate without contact, i.e. they are wear-free and are resistant to contamination. The sensors are available in designs from Ø 3 mm to 80 × 80 mm square size. Particularly economical solutions enable you to use the robust and reliable inductive global sensors. We can also deliver the wide range of these over 500 preferred versions in high quantities worldwide at short notice. Inductive sensor, Ø 8 x 63 mm, connector, NO (NO), nominal switching distance Sn=4 mm, not flush, Housing material=stainless steel, active surface, material=PBT
