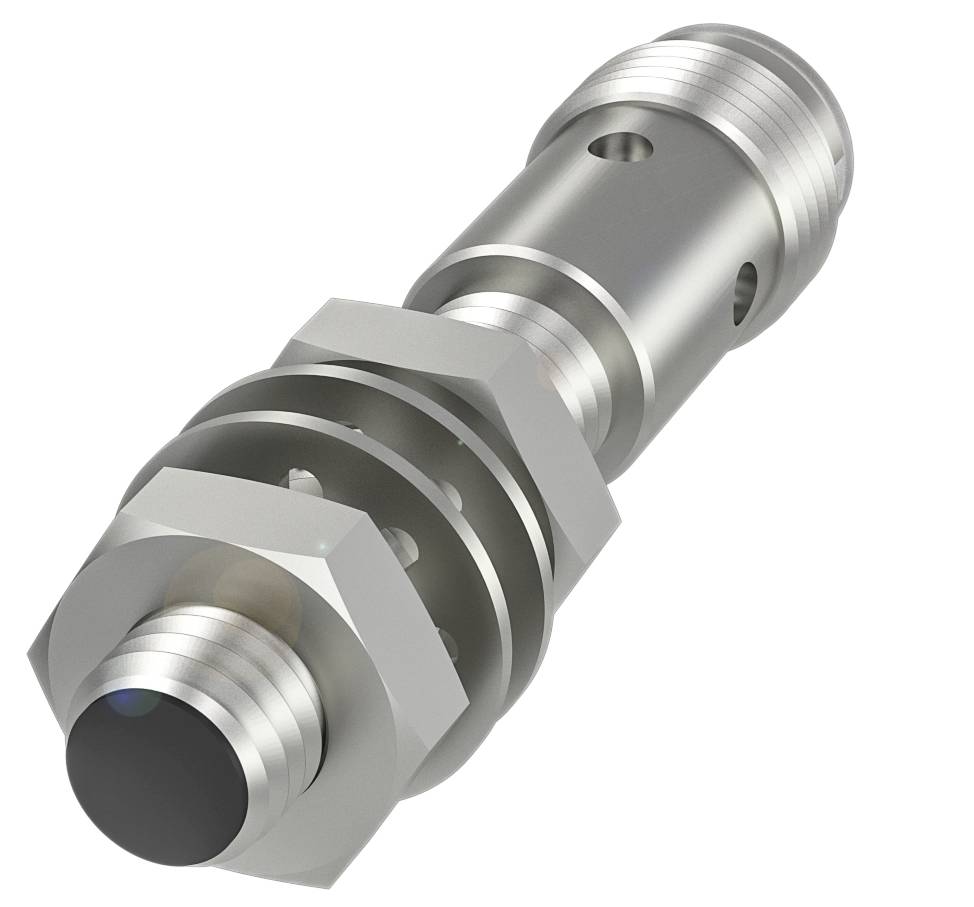

BALLUFF Inductive sensor Inductive BES0022 BES0022 shielded (Ø x H) 8 mm x 50 m
EAN:
Part number:
Item no:
Product type
Inductive sensor
Max. operating voltage
30.0 V
Switching distance (max.)
1.6 mm
Model
Inductive
Connector
M8
Datasheet (PDF)
Highlights & Details
Balluff BES0022 Inductive proximity switches
- Dimensions: Ø 8 x 50 mm
- M8x1 design
- Flush mounting
- Range: 2 mm
- Switch output: Polarity sensitive NO
Technical specifications
- Main features:Dimensions: Ø 8 x 50 mm
- Active surface, material: PBT
- Connection: Connector, M12x1 connector, 4-pin
- M8x1 design
- Operating voltage Ub 10...30 VDC
- Flush mounting
- Housing material: Brass, nickel-free coated
- Range: 2 mm
- Switch output: Polarity sensitive NO
- Switching frequency 1500 Hz
- Protection class IP67
- Ambient temperature: -25 to 70 °C
- Additional features:
- Dimensions: Ø 8 x 50 mm
- Operating voltage display: No.
- Function display: Yes
- Rated operating voltage Ue DC 24 V
- Rated operating current Ie 100 mA
- Rated insulation voltage UI 75 V DC
- Rated short-circuit current 100 A.
- Standby delay TV max.: 50 ms
- Operating voltage Ub 10...30 VDC
- Usage category: DC-13
- Minimum operating current Im: 5 mA
- Load capacity max. at Ue 1 µF
- Residual current l max. 600 µA
- Residual ripple max. (% of Ue): 15%
- Switching frequency 1500 Hz
- Static voltage drop: 5.3 V
- Connection: M12x1 4-pin connector, A-coded
- Short-circuit protection: Yes
- Reverse polarity protection: Yes
- Exchange possibility protected: Yes
- Guaranteed switching distance of Sa: 1.6 mm
- Hysteresis H max. (% of Sr): 20.0%
- Rated switching distance Sn: 2 mm
- Real switching distance Sr:2 mm
- Real switching distance Sr, tolerance: ±10 %
- Temperature drift max. (% of Sr): 10%
- Repeatability max. (% of Sr): 5.0%
- MTTF (40 °C) 315 a
- Active surface, material: PBT
- Housing material Mechanical characteristics: Brass, nickel-free coated
- Tightening torque 3 Nm
- Size M8x1
- Mounting length 29.50 mm
- Flush mounting: Flush mounting
- Switch output: Polarity sensitive NO
- Switching distance indicator: ■■
- Brand: Global
- Product type
Inductive sensor
- Type
BES0022
- Min. operating voltage
10.0 V
- Max. operating voltage
30.0 V
- Operating voltage
10.0 - 30.0 V
- Switching distance (max.)
1.6 mm
- Switching frequency
1500 Hz
- Model
Inductive
- Connector
M8
- Installation type
shielded
- Enclosure material
Brass
IP67
- Min. temperature
-25 °C
- Max. temperature
70 °C
- Length
50.00 mm
- Height
50 m
- (Ø)
8 mm
- Dim
(Ø x H) 8 mm x 50 m
- Nominal voltage
24 V
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3417149 BALLUFF Inductive sensor Inductive BES0022 BES0022 shielded (Ø x H) 8 mm x 50 m
User & Safety Instructions
User & Safety Instructions 3417149 BALLUFF Inductive sensor Inductive BES0022 BES0022 shielded (Ø x H) 8 mm x 50 m
Description
Our inductive standard BES sensors for the detection of electrically conductive metallic objects are robust and reliable. With a wide range of over 500 series, we offer the right inductive sensor for every application. The technology used worldwide has an optimum price-performance ratio and is available in a short time even for high quantities. Dimensions = Ø 8 x 50 mm, design = M8X1, installation = flush, range = 2 mm, switching output = polarized NO, switching frequency = 1500 Hz, housing material = brass, nickel-free coated, active surface, material = PBT, Connection = plug connector M12x1 plug, 4-pin, operating voltage Ub = 10...36 VDC, ambient temperature = -25...70 °C, protection class = IP67, approval/conformity = CE, UKCA, cULus, WEEE
