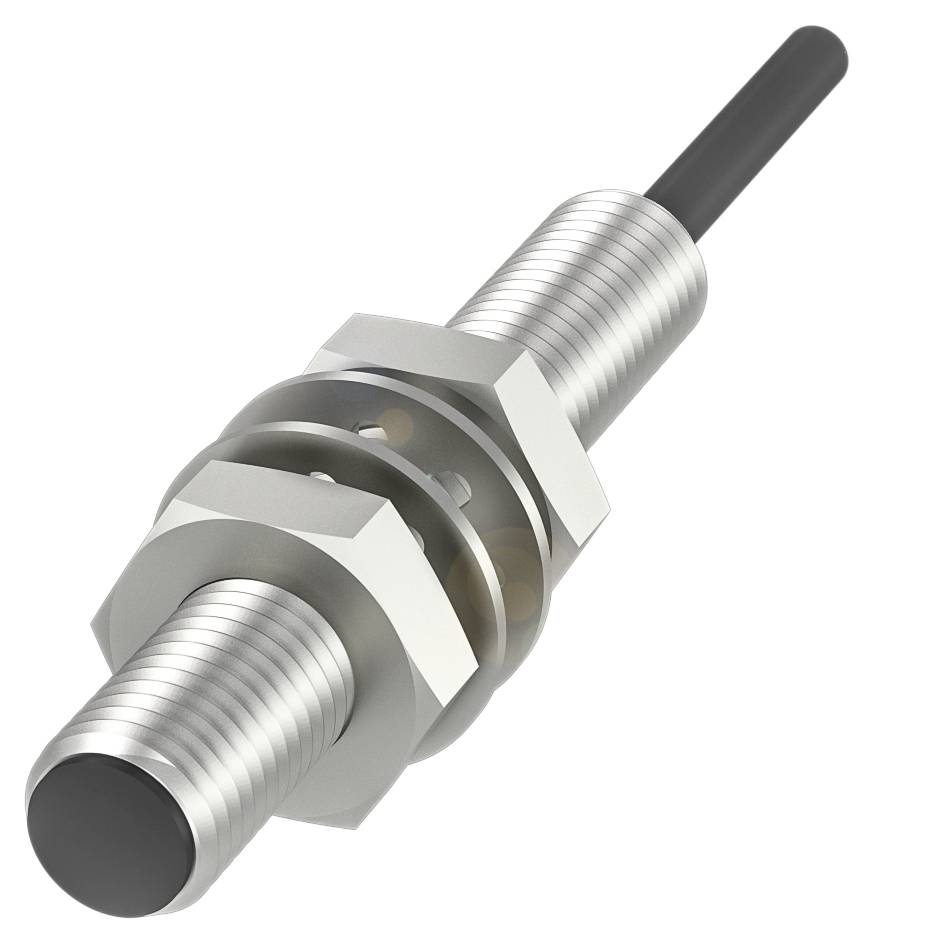

BALLUFF Inductive sensor Inductive BES003F BES003F M8 shielded PNP (Ø x L) 8 mm x 50.00 mm
EAN:
Part number:
Item no:
Product type
Inductive sensor
Max. operating voltage
30.0 V
Contact type
1 maker
Switching distance (max.)
1.6 mm
Outputs
PNP
Datasheet (PDF)
Highlights & Details
Balluff BES003F Inductive Proximity Switches
- Dimensions: Ø 8 x 50 mm
- M8x1 design
- Flush mounting
- Range: 2 mm
- Switching output: PNP NO
Technical specifications
- Main features:Dimensions: Ø 8 x 50 mm
- Active surface, material: PA 12
- Connection: Cable, 2.00 m, PUR
- M8x1 design
- Operating voltage Ub 12...30 VDC
- Flush mounting
- Housing material: Nickel-plated brass
- Range: 2 mm
- Switching output: PNP NO
- Switching frequency 700 Hz
- Protection class IP67
- Ambient temperature: -25 to 70 °C
- Additional features:
- Dimensions: Ø 8 x 50 mm
- Operating voltage display: No.
- Function display: Yes
- Output resistance Ra: 33.0 kOhm + D
- Rated operating voltage Ue DC 24 V
- Rated operating current Ie 200 mA
- Rated insulation voltage UI 75 V DC
- Rated short-circuit current 100 A.
- Standby delay TV max.: 30 ms
- Operating voltage Ub 12...30 VDC
- Usage category: DC-13
- Minimum operating current Im: 0 mA
- Load capacity max. at Ue 1 µF
- Idle current IO max., dammed.: 10 mA
- Idle current IO max., unattenuated: 5 mA
- Residual current l max. 20 µA
- Residual ripple max. (% of Ue): 15%
- Switching frequency 700 Hz
- Static voltage drop: 2.5 V
- Short-circuit protection: Yes
- Reverse polarity protection: Yes
- Exchange possibility protected: Yes
- Guaranteed switching distance of Sa: 1.6 mm
- Hysteresis H max. (% of Sr): 15.0%
- Rated switching distance Sn: 2 mm
- Real switching distance Sr:2 mm
- Real switching distance Sr, tolerance: ±10 %
- Temperature drift max. (% of Sr): 10%
- Repeatability max. (% of Sr): 5.0%
- MTTF (40 °C) 880 a
- Active surface, material: PA 12
- Tightening torque 3 Nm
- Size M8x1
- Mounting length 50.00 mm
- Flush mounting: Flush mounting
- Switching output: PNP NO
- Connection type: Cable, 2.00 m, PUR
- Cable diameter D 3.10 mm
- Cable length 2 m
- Switching distance indicator: ■■
- Housing material: Nickel-plated brass
- Sheath material: PUR
- EN 60068-2-27, shock: Half sine, 30 gn, 11 ms
- EN 60068-2-6, vibration:55 Hz, amplitude 1 mm, 3x30 min.
- Protection class IP67
- Ambient temperature: -25 to 70 °C
- Pollution level 3
- Number of conductors: 3
- Conductor cross-section: 0.14 mm²
- Brand: Global
- Product type
Inductive sensor
- Type
BES003F
- Min. operating voltage
12.0 V
- Max. operating voltage
30.0 V
- Operating voltage
12.0 - 30.0 V
- Contact type
1 maker
- Switching distance (max.)
1.6 mm
- Outputs
PNP
- Enclosure material
Brass
- Model
Inductive
- Material properties
nickel plated
- Installation type
shielded
- Size
M8
- Connector
M8
- Cable length
2.00 m
- Min. temperature
-25 °C
- Max. temperature
70 °C
IP67
- Length
50.00 mm
- (Ø)
8 mm
- Dim
(Ø x L) 8 mm x 50.00 mm
- Content
1 pc(s)
- Nominal voltage
24 V
- Switching frequency
700 Hz
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3417158 BALLUFF Inductive sensor Inductive BES003F BES003F M8 shielded PNP (Ø x L) 8 mm x 50.00 mm
User & Safety Instructions
User & Safety Instructions 3417158 BALLUFF Inductive sensor Inductive BES003F BES003F M8 shielded PNP (Ø x L) 8 mm x 50.00 mm
Description
Our standard inductive sensors are Ideal for object detection in the metal field. They are short circuit proof and operate without contact, i.e. they are wear-free and are resistant to contamination. The sensors are available in designs from Ø 3 mm to 80 × 80 mm square size. Particularly economical solutions enable you to use the robust and reliable inductive global sensors. We can also deliver the wide range of these over 500 preferred versions in high quantities worldwide at short notice. Dimensions=Ø 8 x 50 mm, design=M8x1, installation=flush, range=2 mm, switching output=PNP NO (NO), Switching frequency=700 Hz, casing material=brass, surface protection=nickel, active surface, material=PA 12, connection=cable, 2.00 m, PUR, operating voltage Ub=12...30 VDC, ambient temperature=-25...70 °C, Protection class=IP67, Approval/conformity=CecULusEACWEEE
