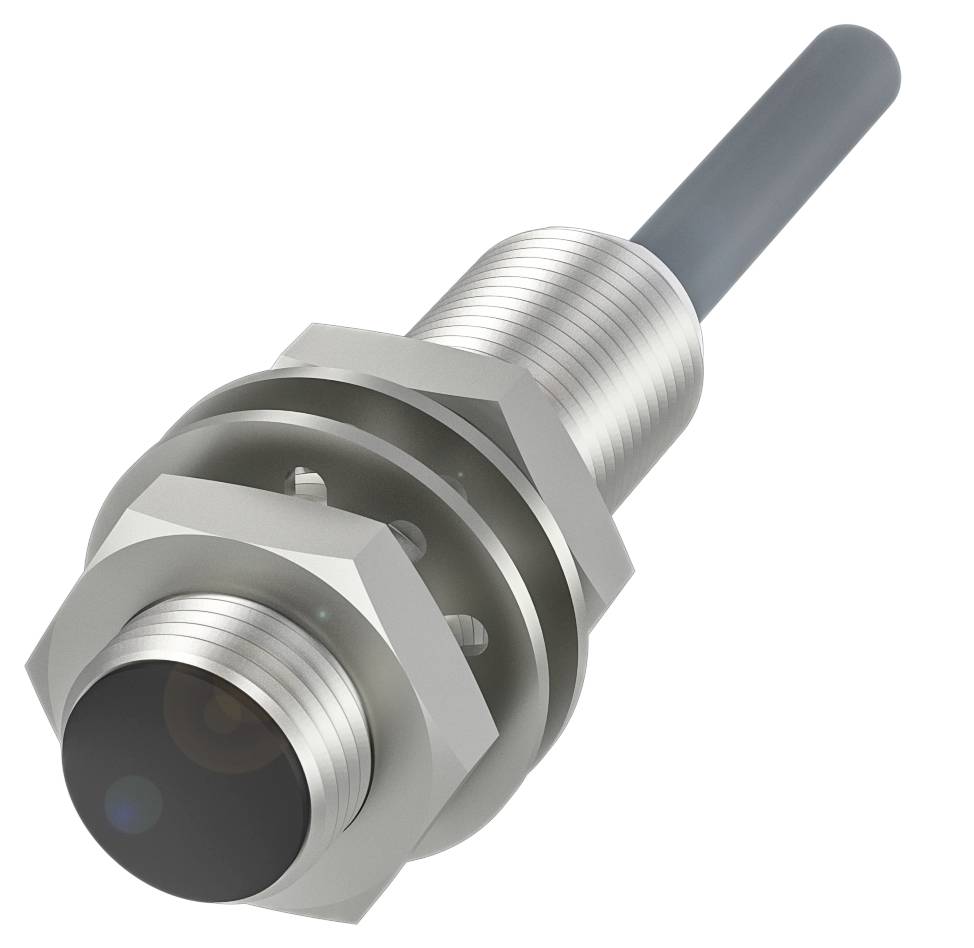

BALLUFF Inductive sensor Inductive BES004T BES004T M12 shielded (Ø x H) 12 mm x 43 m Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Inductive sensor
Max. operating voltage
36.0 V
Switching distance (max.)
2.4 mm
Model
Inductive
Datasheet (PDF)
Highlights & Details
Balluff BES004T Inductive Proximity Switches
- Dimensions: Ø 12 x 43 mm
- Design M12x1
- Flush mounting
- Range: 3 mm
- Switching output: Non-polar NO (NO)
Technical specifications
- Main features:Dimensions: Ø 12 x 43 mm
- Active surface, material: PA 12
- Connection: Cable, 2.00 m, PVC
- Design M12x1
- Operating voltage Ub 10...36 VDC
- Flush mounting
- Housing material: Brass, nickel-free coated
- Range: 3 mm
- Switching output: Non-polar NO (NO)
- Switching frequency 1300 Hz
- Protection class IP67
- Ambient temperature: -25 to 70 °C
- Additional features:
- Dimensions: Ø 12 x 43 mm
- Operating voltage display: No.
- Function display: Yes
- Rated operating voltage Ue DC 24 V
- Rated operating current Ie 100 mA
- Rated insulation voltage UI 75 V DC
- Rated short-circuit current 100 A.
- Standby delay TV max.: 50 ms
- Operating voltage Ub 10...36 VDC
- Usage category: DC-13
- Minimum operating current Im: 5 mA
- Load capacity max. at Ue 1 µF
- Residual current l max. 600 µA
- Residual ripple max. (% of Ue): 15%
- Switching frequency 1300 Hz
- Static voltage drop: 5.3 V
- Short-circuit protection: Yes
- Reverse polarity protection: Yes
- Exchange possibility protected: Yes
- Guaranteed switching distance of Sa: 2.4 mm
- Hysteresis H max. (% of Sr): 20.0%
- Rated switching distance Sn: 3 mm
- Real switching distance Sr:3 mm
- Real switching distance Sr, tolerance: ±10 %
- Temperature drift max. (% of Sr): 10%
- Repeatability max. (% of Sr): 5.0%
- MTTF (40 °C) 315 a
- Active surface, material: PA 12
- Tightening torque 15 Nm
- Size M12x1
- Mounting length 40.00 mm
- Flush mounting: Flush mounting
- Switching output: Non-polar NO (NO)
- Connection type: Cable, 2.00 m, PVC
- Cable diameter D 4.60 mm
- Cable length 2 m
- Switching distance indicator: ■■
- Housing material: Brass, nickel-free coated
- Jacket material PVC
- EN 60068-2-27, shock: Half sine, 30 gn, 11 ms
- EN 60068-2-6, vibration:55 Hz, amplitude 1 mm, 3x30 min.
- Protection class IP67
- Ambient temperature: -25 to 70 °C
- Pollution level 3
- Number of conductors: 2
- Conductor cross-section: 0.34 mm²
- Brand: Global
- Packaging type
Piece
- Product type
Inductive sensor
- Type
BES004T
- Min. operating voltage
10.0 V
- Max. operating voltage
36.0 V
- Operating voltage
10.0 - 36.0 V
- Cable length
2.00 m
- Switching distance (max.)
2.4 mm
- Switching frequency
1300 Hz
- Model
Inductive
- Connector
M12
- Installation type
shielded
- Size
M12
- Enclosure material
Brass
- Contact type
1 maker
IP67
- Min. temperature
-25 °C
- Max. temperature
70 °C
- Length
43.00 mm
- Height
43 m
- (Ø)
12 mm
- Dim
(Ø x H) 12 mm x 43 m
- Nominal voltage
24 V
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3417259 BALLUFF Inductive sensor Inductive BES004T BES004T M12 shielded (Ø x H) 12 mm x 43 m Piece
User & Safety Instructions
User & Safety Instructions 3417259 BALLUFF Inductive sensor Inductive BES004T BES004T M12 shielded (Ø x H) 12 mm x 43 m Piece
Description
Dimensions=Ø 12 x 43 mm, design=M12x1, installation=flush, range=3 mm, switching output=non-polar NO (NO), Switching frequency=1300 Hz, casing material=brass, surface protection=nickel-free coated, active surface, material=PA 12, connection=cable, 2.00 m, PVC, operating voltage Ub=10...36 VDC, ambient temperature=-25...70 °C, Protection class=IP67, Approval/conformity=CecULusEACWEEE
