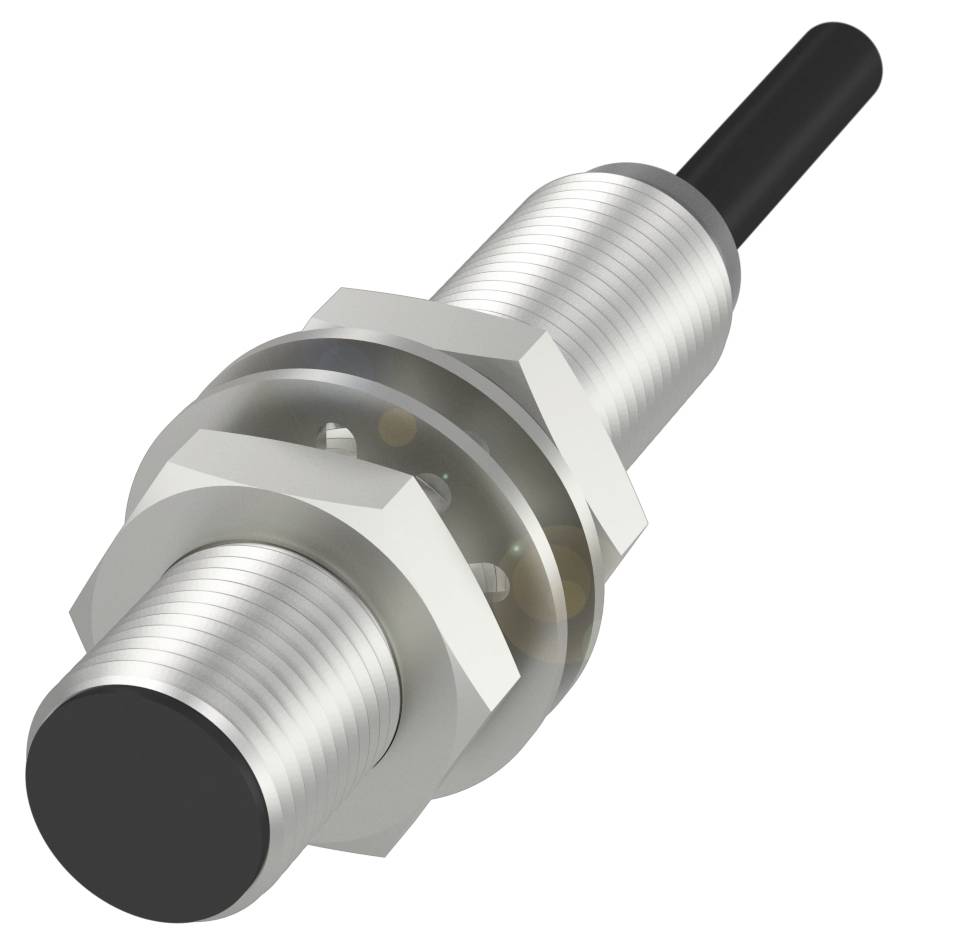

BALLUFF Inductive sensor Inductive BES005A BES005A shielded PNP (Ø x H) 12 mm x 53 m
EAN:
Part number:
Item no:
Product type
Inductive sensor
Max. operating voltage
30.0 V
Outputs
PNP
Switching distance (max.)
1.6 mm
Model
Inductive
Datasheet (PDF)
Highlights & Details
BES005A Cylindrical design
- Dimensions: Ø 12 x 53 mm
- Design M12x1
- Flush mounting
- Range: 2 mm
- Switching output: PNP NC
Technical specifications
- Main features:Dimensions: Ø 12 x 53 mm
- Active surface, material: PBT
- Connection: Cable, 3.00 m, TPU
- Design M12x1
- Operating voltage Ub 10...30 VDC
- Flush mounting
- Housing material: Brass, nickel-free coated
- Range: 2 mm
- Switching output: PNP NC
- Switching frequency 3500 Hz
- Protection class: IP68
- Ambient temperature: -25 to 70 °C
- Additional features:
- Dimensions: Ø 12 x 53 mm
- Operating voltage display: No.
- Function display: Yes
- Output resistance Ra: 33.0 kOhm + D
- Rated operating voltage Ue DC 24 V
- Rated operating current Ie 200 mA
- Rated insulation voltage UI 250 V AC
- Rated short-circuit current 100 A.
- Standby delay TV max.: 21 ms
- Operating voltage Ub 10...30 VDC
- Usage category: DC-13
- Minimum operating current Im: 0 mA
- Load capacity max. at Ue 1 µF
- Idle current IO max., dammed.: 2 mA
- Idle current IO max., unattenuated: 5 mA
- Residual current l max. 10 µA
- Residual ripple max. (% of Ue): 15%
- Switching frequency 3500 Hz
- Protection class: II
- Static voltage drop: 1.5 V
- Short-circuit protection: Yes
- Reverse polarity protection: Yes
- Exchange possibility protected: Yes
- Guaranteed switching distance of Sa: 1.6 mm
- Hysteresis H max. (% of Sr): 15.0%
- Rated switching distance Sn: 2 mm
- Real switching distance Sr:2 mm
- Real switching distance Sr, tolerance: ±10 %
- Temperature drift max. (% of Sr): 10%
- Repeatability max. (% of Sr): 5.0%
- MTTF (40 °C) 640 a
- Active surface, material: PBT
- Tightening torque 10 Nm
- Size M12x1
- Mounting length 50.00 mm
- Flush mounting: Flush mounting
- Switching output: PNP NC
- Connection type: Cable, 3.00 m, TPU
- Cable diameter D 4.60 mm
- Cable length 3 m
- Housing material: Brass, nickel-free coated
- Sheath material: TPU
- EN 60068-2-27, shock: Half sine, 30 gn, 11 ms
- EN 60068-2-6, vibration:55 Hz, amplitude 1 mm, 3x30 min.
- Protection class: IP68
- Ambient temperature: -25 to 70 °C
- Pollution level 3
- Number of conductors: 3
- Conductor cross-section: 0.34 mm²
- Brand: Global
- Product type
Inductive sensor
- Type
BES005A
- Min. operating voltage
10.0 V
- Max. operating voltage
30.0 V
- Operating voltage
10.0 - 30.0 V
- Outputs
PNP
- Cable length
3.00 m
- Switching distance (max.)
1.6 mm
- Switching frequency
3500 Hz
- Model
Inductive
- Connector
M12
- Installation type
shielded
- Enclosure material
Brass
- Contact type
1 breaker
IP68
- Min. temperature
-25 °C
- Max. temperature
70 °C
- Length
53.00 mm
- Height
53 m
- (Ø)
12 mm
- Dim
(Ø x H) 12 mm x 53 m
- Nominal voltage
24 V
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3417486 BALLUFF Inductive sensor Inductive BES005A BES005A shielded PNP (Ø x H) 12 mm x 53 m
User & Safety Instructions
User & Safety Instructions 3417486 BALLUFF Inductive sensor Inductive BES005A BES005A shielded PNP (Ø x H) 12 mm x 53 m
Description
Our standard inductive sensors are Ideal for object detection in the metal field. They are short circuit proof and operate without contact, i.e. they are wear-free and are resistant to contamination. The sensors are available in designs from Ø 3 mm to 80 × 80 mm square size. Particularly economical solutions enable you to use the robust and reliable inductive global sensors. We can also deliver the wide range of these over 500 preferred versions in high quantities worldwide at short notice. Dimensions=Ø 12 x 53 mm, design=M12x1, installation=flush, range=2 mm, switching output=PNP NC), Switching frequency=3500 Hz, casing material=brass, surface protection=nickel-free coated, active surface, material=PBT, connection=cable, 3.00 m, TPU, operating voltage Ub=10...30 VDC, ambient temperature=-25...70 °C, Protection class=IP68, approval/conformity=cULusCEEACWEEE
