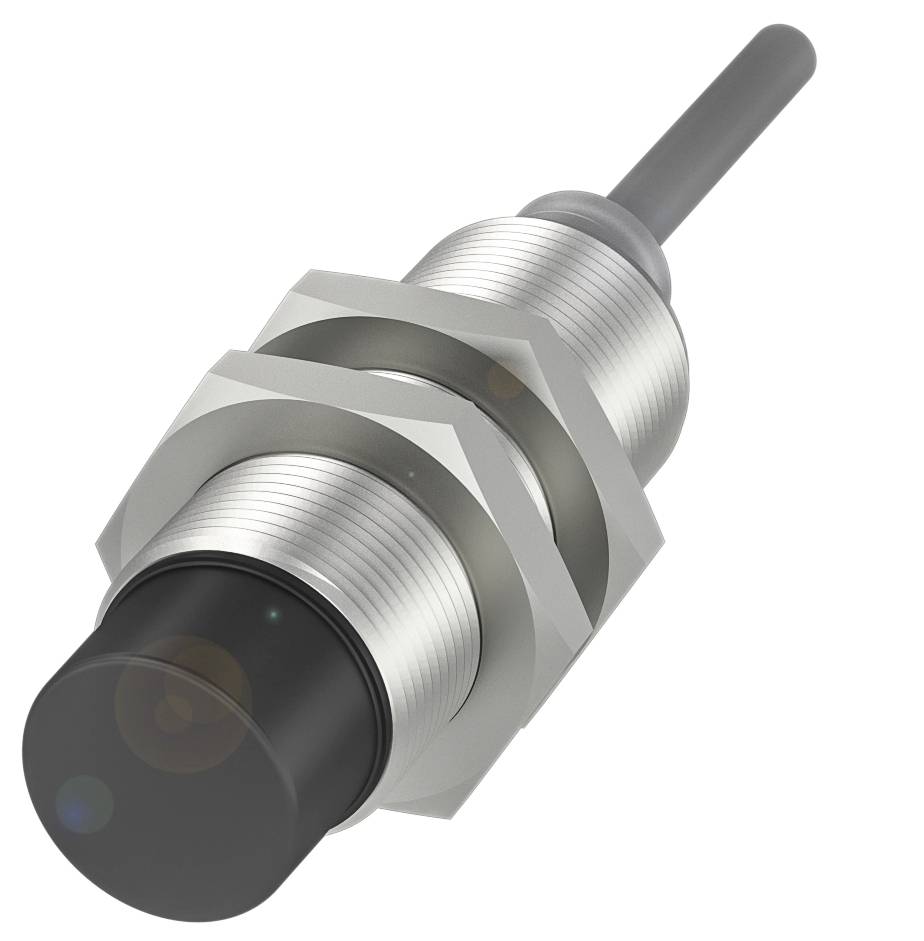

BALLUFF Inductive sensor Inductive BES006P BES006P non-shielded NPN (Ø x L) 18 mm x 55.0 mm
EAN:
Part number:
Item no:
Product type
Inductive sensor
Max. operating voltage
30.0 V
Outputs
NPN
Switching distance (max.)
12.8 mm
Model
Inductive
Datasheet (PDF)
Highlights & Details
Balluff BES006P Inductive Proximity Switches
- Dimensions: Ø 18 x 55 mm
- Design M18x1
- Fitting: Non-shielded
- Range: 16 mm
- Switching output: NPN no (NO)
Technical specifications
- Main features:Dimensions: Ø 18 x 55 mm
- Active surface, material: PBT
- Connection: Cable, 2.00 m, PVC
- Design M18x1
- Operating voltage Ub 10...30 VDC
- Fitting: Non-shielded
- Housing material: Brass, nickel-free coated
- Range: 16 mm
- Switching output: NPN no (NO)
- Switching frequency 430 Hz
- Protection class: IP68
- Ambient temperature -40...85 °C
- Additional features:
- Dimensions: Ø 18 x 55 mm
- Operating voltage display: No.
- Function display: Yes
- Output resistance Ra: 33.0 kOhm + D
- Rated operating voltage Ue DC 24 V
- Rated operating current Ie 200 mA
- Rated insulation voltage UI 250 V AC
- Rated short-circuit current 100 A.
- Standby delay TV max.: 30 ms
- Operating voltage Ub 10...30 VDC
- Usage category: DC-13
- Minimum operating current Im: 0 mA
- Load capacity max. at Ue 0.5 µF
- Idle current IO max., dammed.: 8 mA
- Idle current IO max., unattenuated: 2 mA
- Residual current l max. 10 µA
- Residual ripple max. (% of Ue): 15%
- Switching frequency 430 Hz
- Protection class: II
- Static voltage drop: 2.5 V
- Short-circuit protection: Yes
- Reverse polarity protection: Yes
- Exchange possibility protected: Yes
- Guaranteed switching distance of Sa: 12.8 mm
- Hysteresis H max. (% of Sr): 15.0%
- Rated switching distance Sn: 16.0 mm
- Real switching distance Sr:16 mm
- Real switching distance Sr, tolerance: ±10 %
- Temperature drift max. (% of Sr): 15%
- Repeatability max. (% of Sr): 5.0%
- MTTF (40 °C) 389 a
- Active surface, material: PBT
- Tightening torque 25 Nm
- Size M18x1
- Mounting length 40.5 mm
- Fitting: Non-shielded
- Switching output: NPN no (NO)
- Connection type: Cable, 2.00 m, PVC
- Cable diameter D 4.50 mm
- Cable length 2 m
- Switching distance indicator: ■■
- Housing material: Brass, nickel-free coated
- Jacket material PVC
- EN 60068-2-27, shock: Half sine, 30 gn, 11 ms
- EN 60068-2-6, vibration:55 Hz, amplitude 1 mm, 3x30 min.
- Protection class: IP68
- Ambient temperature -40...85 °C
- Pollution level 3
- Number of conductors: 3
- Conductor cross-section: 0.34 mm²
- Brand: Global
- Product type
Inductive sensor
- Type
BES006P
- Min. operating voltage
10.0 V
- Max. operating voltage
30.0 V
- Operating voltage
10.0 - 30.0 V
- Outputs
NPN
- Cable length
2.00 m
- Switching distance (max.)
12.8 mm
- Switching frequency
430 Hz
- Model
Inductive
- Connector
M18
- Installation type
non-shielded
- Enclosure material
Brass
- Contact type
1 maker
IP68
- Min. temperature
-40 °C
- Max. temperature
85 °C
- Length
55.0 mm
- (Ø)
18 mm
- Dim
(Ø x L) 18 mm x 55.0 mm
- Nominal voltage
24 V
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3417155 BALLUFF Inductive sensor Inductive BES006P BES006P non-shielded NPN (Ø x L) 18 mm x 55.0 mm
User & Safety Instructions
User & Safety Instructions 3417155 BALLUFF Inductive sensor Inductive BES006P BES006P non-shielded NPN (Ø x L) 18 mm x 55.0 mm
Description
Our standard inductive sensors are Ideal for object detection in the metal field. They are short circuit proof and operate without contact, i.e. they are wear-free and are resistant to contamination. The sensors are available in designs from Ø 3 mm to 80 × 80 mm square size. Particularly economical solutions enable you to use the robust and reliable inductive global sensors. We can also deliver the wide range of these over 500 preferred versions in high quantities worldwide at short notice. Dimensions=Ø 18 x 56 mm, design=M18x1, installation=not flush, range=16 mm, switching output=NPN NO contact (NO), Switching frequency=800 Hz, casing material=brass, surface protection=nickel-free coated, active surface, material=PBT, connection=cable, 2.00 m, PVC, operating voltage Ub=10...30 VDC, ambient temperature=-25...70 °C, Protection class=IP68, approval/conformity=CecULusEACWEEE
