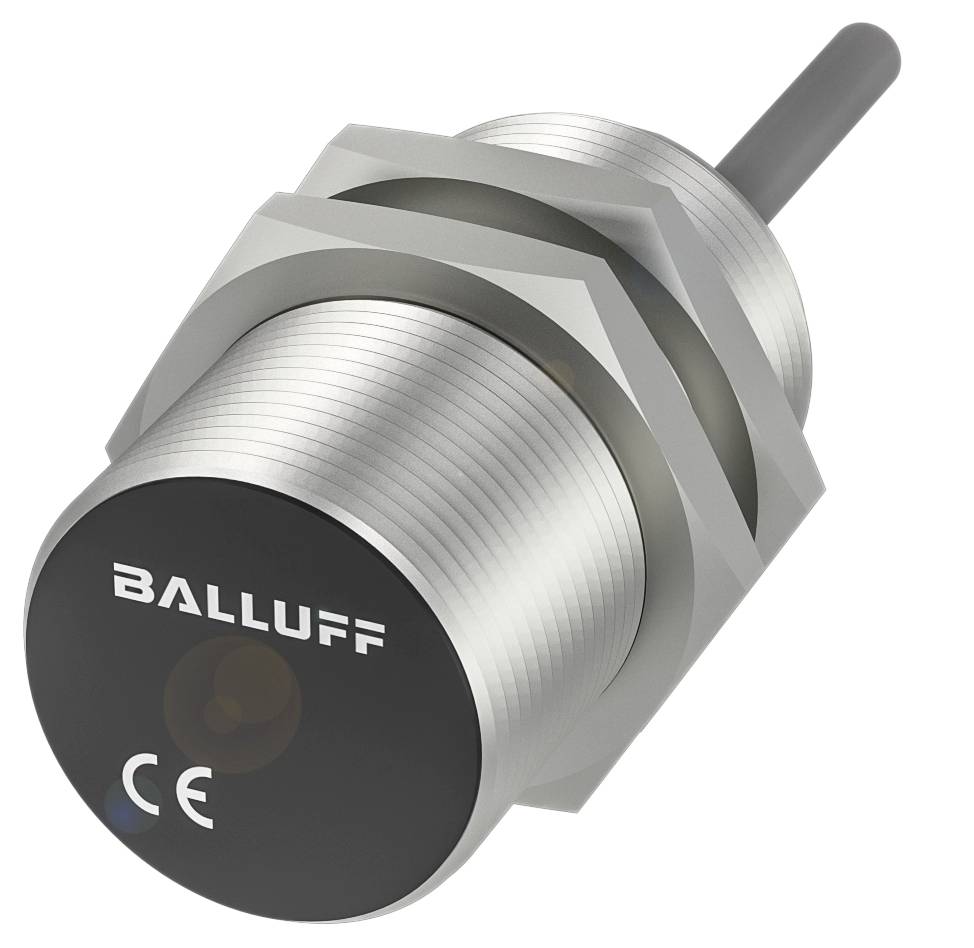

BALLUFF Inductive sensor Inductive BES00A0 BES00A0 M30 shielded PNP (Ø x H) 30 mm x 56 m
EAN:
Part number:
Item no:
Product type
Inductive sensor
Max. operating voltage
30.0 V
Outputs
PNP
Switching distance (max.)
8.1 mm
Model
Inductive
Datasheet (PDF)
Highlights & Details
Balluff BES00A0 Inductive proximity switch
- Dimensions: Ø 30 x 56 mm
- Type M30x1.5
- Flush mounting
- Range: 10 mm
- Switching output: PNP NO
Technical specifications
- Main features:Dimensions: Ø 30 x 56 mm
- Active surface, material: PA 12
- Connection: Cable, 2.00 m, PVC
- Type M30x1.5
- Operating voltage Ub 12...30 VDC
- Flush mounting
- Housing material: Nickel-plated brass
- Range: 10 mm
- Switching output: PNP NO
- Switching frequency 400 Hz
- Protection class: IP68
- Ambient temperature: -25 to 70 °C
- Additional features:
- Dimensions: Ø 30 x 56 mm
- Operating voltage display: No.
- Function display: Yes
- Output resistance Ra: 33.0 kOhm + D
- Rated operating voltage Ue DC 24 V
- Rated operating current Ie 200 mA
- Rated insulation voltage UI 250 V AC
- Rated short-circuit current 100 A.
- Standby delay TV max.: 150 ms
- Operating voltage Ub 12...30 VDC
- Usage category: DC-13
- Minimum operating current Im: 0 mA
- Load capacity max. at Ue 1 µF
- Idle current IO max., dammed.: 10 mA
- Idle current IO max., unattenuated: 5 mA
- Residual current l max. 20 µA
- Residual ripple max. (% of Ue): 15%
- Switching frequency 400 Hz
- Protection class: II
- Static voltage drop: 2.5 V
- Short-circuit protection: Yes
- Reverse polarity protection: Yes
- Exchange possibility protected: Yes
- Guaranteed switching distance of Sa: 8.1 mm
- Hysteresis H max. (% of Sr): 15.0%
- Rated switching distance Sn: 10 mm
- Real switching distance Sr:10 mm
- Real switching distance Sr, tolerance: ±10 %
- Temperature drift max. (% of Sr): 10%
- Repeatability max. (% of Sr): 5.0%
- MTTF (40 °C) 880 a
- Active surface, material: PA 12
- Tightening torque 70 Nm
- Size M30x1.5
- Mounting length 50.00 mm
- Flush mounting: Flush mounting
- Switching output: PNP NO
- Connection type: Cable, 2.00 m, PVC
- Cable diameter D 4.60 mm
- Cable length 2 m
- Housing material: Nickel-plated brass
- Jacket material PVC
- EN 60068-2-27, shock: Half sine, 30 gn, 11 ms
- EN 60068-2-6, vibration:55 Hz, amplitude 1 mm, 3x30 min.
- Protection class: IP68
- Ambient temperature: -25 to 70 °C
- Pollution level 3
- Number of conductors: 3
- Conductor cross-section: 0.34 mm²
- Brand: Global
- Product type
Inductive sensor
- Type
BES00A0
- Min. operating voltage
12.0 V
- Max. operating voltage
30.0 V
- Operating voltage
12.0 - 30.0 V
- Outputs
PNP
- Cable length
2.00 m
- Switching distance (max.)
8.1 mm
- Switching frequency
400 Hz
- Model
Inductive
- Connector
Cable
- Installation type
shielded
- Size
M30
- Material properties
nickel plated
- Enclosure material
Brass
- Contact type
1 maker
IP68
- Min. temperature
-25 °C
- Max. temperature
70 °C
- Length
56.00 mm
- Height
56 m
- (Ø)
30 mm
- Dim
(Ø x H) 30 mm x 56 m
- Nominal voltage
24 V
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3417128 BALLUFF Inductive sensor Inductive BES00A0 BES00A0 M30 shielded PNP (Ø x H) 30 mm x 56 m
User & Safety Instructions
User & Safety Instructions 3417128 BALLUFF Inductive sensor Inductive BES00A0 BES00A0 M30 shielded PNP (Ø x H) 30 mm x 56 m
Description
Our standard inductive sensors are Ideal for object detection in the metal field. They are short circuit proof and operate without contact, i.e. they are wear-free and are resistant to contamination. The sensors are available in designs from Ø 3 mm to 80 × 80 mm square size. Particularly economical solutions enable you to use the robust and reliable inductive global sensors. We can also deliver the wide range of these over 500 preferred versions in high quantities worldwide at short notice. Dimensions = Ø 30 x 56 mm, design = M301.5, flush-mount = flush-mount, range = 10 mm, switch output = PNP NO (NO), Switching frequency=400 Hz, casing material=brass, surface protection=nickel, active surface, material=PA 12, connection=cable, 2.00 m, PVC, operating voltage Ub=12...30 VDC, ambient temperature=-25...70 °C, Protection class=IP68, approval/conformity=CecULusEACWEEE
