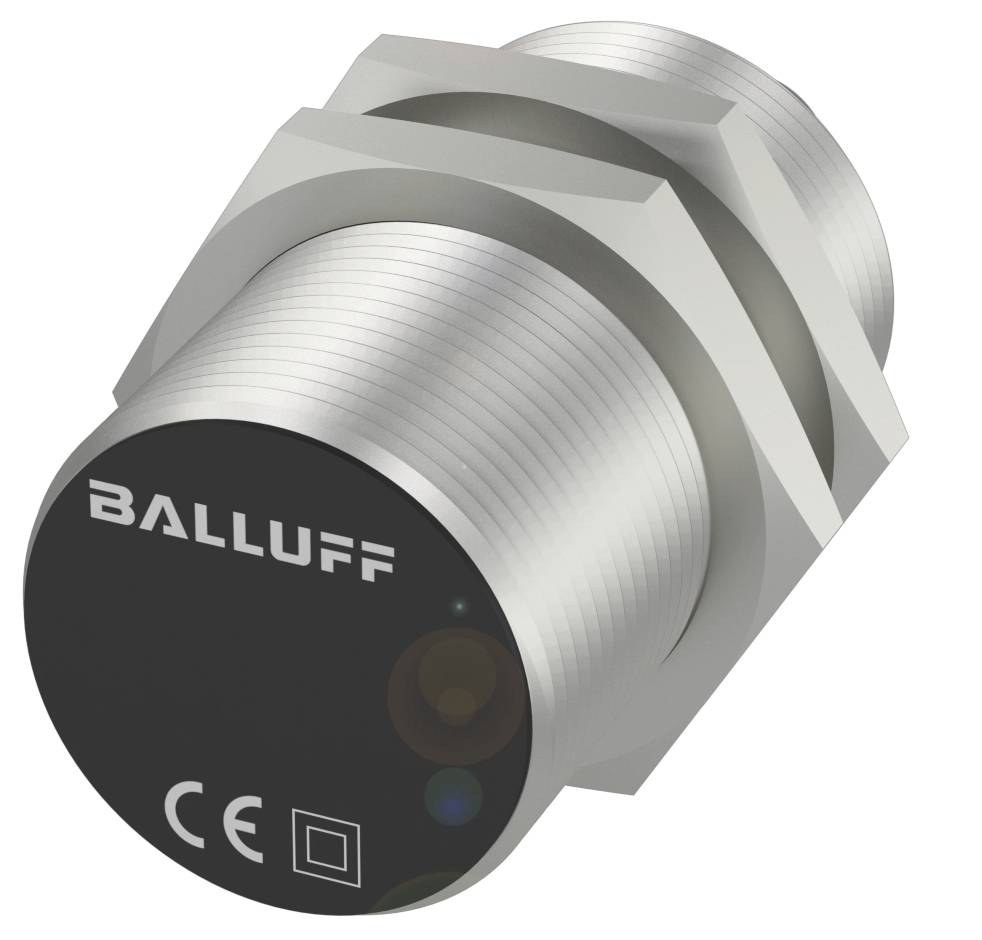

BALLUFF Inductive sensor Inductive BES00A3 BES00A3 M30 shielded PNP (Ø x H) 30 mm x 65 m
EAN:
Part number:
Item no:
Product type
Inductive sensor
Max. operating voltage
30.0 V
Contact type
1 PNP
Switching distance (max.)
8.1 mm
Outputs
PNP
Datasheet (PDF)
Highlights & Details
Balluff BES00A3 Inductive Proximity Switches
- Dimensions: Ø 30 x 65 mm
- Type M30x1.5
- Flush mounting
- Range: 10 mm
- Switching output: PNP NO
Technical specifications
- Main features:Dimensions: Ø 30 x 65 mm
- Active surface, material: PA 12
- Connection: Connector, M12x1 connector, 4-pin
- Type M30x1.5
- Operating voltage Ub 12...30 VDC
- Flush mounting
- Housing material: Nickel-plated brass
- Range: 10 mm
- Switching output: PNP NO
- Switching frequency 400 Hz
- Protection class IP67
- Ambient temperature: -25 to 70 °C
- Additional features:
- Dimensions: Ø 30 x 65 mm
- Operating voltage display: No.
- Function display: Yes
- Output resistance Ra: 33.0 kOhm + D
- Rated operating voltage Ue DC 24 V
- Rated operating current Ie 200 mA
- Rated insulation voltage UI 75 V DC
- Rated short-circuit current 100 A.
- Standby delay TV max.: 150 ms
- Operating voltage Ub 12...30 VDC
- Usage category: DC-13
- Minimum operating current Im: 0 mA
- Load capacity max. at Ue 1 µF
- Idle current IO max., dammed.: 10 mA
- Idle current IO max., unattenuated: 5 mA
- Residual current l max. 20 µA
- Residual ripple max. (% of Ue): 15%
- Switching frequency 400 Hz
- Static voltage drop: 2.5 V
- Connection: M12x1 4-pin connector, A-coded
- Short-circuit protection: Yes
- Reverse polarity protection: Yes
- Exchange possibility protected: Yes
- Guaranteed switching distance of Sa: 8.1 mm
- Hysteresis H max. (% of Sr): 15.0%
- Rated switching distance Sn: 10 mm
- Real switching distance Sr:10 mm
- Real switching distance Sr, tolerance: ±10 %
- Temperature drift max. (% of Sr): 10%
- Repeatability max. (% of Sr): 5.0%
- MTTF (40 °C) 880 a
- Active surface, material: PA 12
- Housing material Mechanical characteristics: Brass, nickel-plated
- Tightening torque 70 Nm
- Size M30x1.5
- Mounting length 50.50 mm
- Flush mounting: Flush mounting
- Switching output: PNP NO
- Brand: Global
- Product type
Inductive sensor
- Type
BES00A3
- Min. operating voltage
12.0 V
- Max. operating voltage
30.0 V
- Operating voltage
12.0 - 30.0 V
- Contact type
1 PNP
- Switching distance (max.)
8.1 mm
- Outputs
PNP
- Enclosure material
Brass
- Model
Inductive
- Material properties
nickel plated
- Installation type
shielded
- Size
M30
- Connector
M12 (4-pin)
- Min. temperature
-25 °C
- Max. temperature
70 °C
IP67
- Length
65.00 mm
- Height
65 m
- (Ø)
30 mm
- Dim
(Ø x H) 30 mm x 65 m
- Content
1 pc(s)
- Nominal voltage
24 V
- Switching frequency
400 Hz
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3417159 BALLUFF Inductive sensor Inductive BES00A3 BES00A3 M30 shielded PNP (Ø x H) 30 mm x 65 m
User & Safety Instructions
User & Safety Instructions 3417159 BALLUFF Inductive sensor Inductive BES00A3 BES00A3 M30 shielded PNP (Ø x H) 30 mm x 65 m
Description
Our inductive standard BES sensors for the detection of electrically conductive metallic objects are robust and reliable. With a wide range of over 500 series, we offer the right inductive sensor for every application. The technology used worldwide has an optimum price-performance ratio and is available in a short time even for high quantities. Dimensions = Ø 30 x 65 mm, design = M30x1.5, installation = flush, range = 10 mm, switching output = PNP NO, switching frequency = 400 Hz, housing material = brass, nickel-plated, active surface, material = PA 12, connection = connector, M12x1 plug, 4-pin, operating voltage Ub = 70...30 VDC, ambient temperature = -25...12 °C, Protection class = IP67, Approval/conformity = CE, UKCA, cULus, WEEE
