BALLUFF Inductive sensor Inductive BES00H4 BES00H4 M5 shielded PNP (Ø x L) 5 mm x 27.00 mm
EAN:
Part number:
Item no:
Product type
Inductive sensor
Max. operating voltage
30.0 V
Contact type
1 PNP
Switching distance (max.)
1.21 mm
Outputs
PNP
Datasheet (PDF)
Highlights & Details

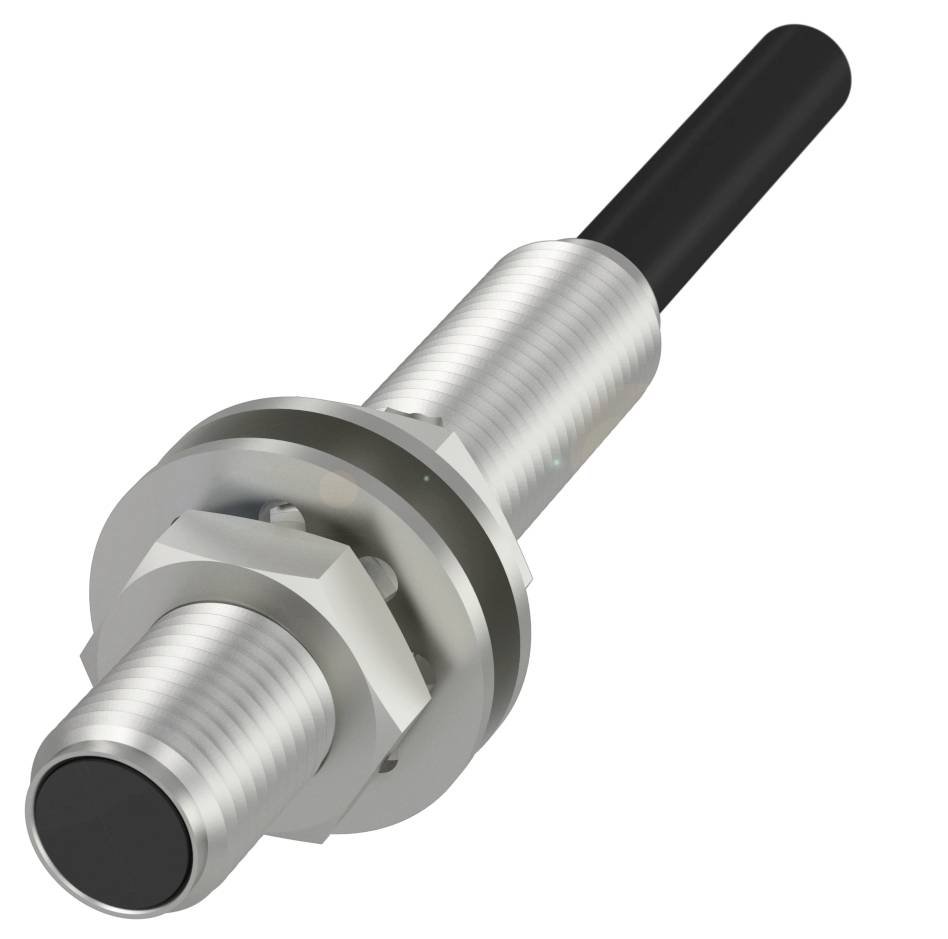

Balluff BES00H4 Cylindrical Miniature Design
- Dimensions: Ø 5 x 27 mm
- Size: M5x0.5
- Flush mounting
- Range: 1.5 mm
- Switching output: PNP NO
Technical specifications
- Main features:Dimensions: Ø 5 x 27 mm
- Active surface, material: PBT
- Connection: Cable, 5.00 m, PUR
- Size: M5x0.5
- Operating voltage Ub 10...30 VDC
- Flush mounting
- Housing material: Stainless steel
- Range: 1.5 mm
- Switching output: PNP NO
- Switching frequency 5000 Hz
- Protection class IP67
- Ambient temperature: -25 to 70 °C
- Additional features:
- Dimensions: Ø 5 x 27 mm
- Operating voltage display: No.
- Function display: Yes
- Output resistance Ra: Open drain
- Rated operating voltage Ue DC 24 V
- Rated operating current Ie 100 mA
- Rated insulation voltage UI 75 V DC
- Rated short-circuit current 100 A.
- Standby delay TV max.: 21 ms
- Operating voltage Ub 10...30 VDC
- Usage category: DC-13
- Minimum operating current Im: 0 mA
- Load capacity max. at Ue 1 µF
- Idle current IO max., dammed.: 6 mA
- Idle current IO max., unattenuated: 2 mA
- Residual current l max. 10 µA
- Residual ripple max. (% of Ue): 10%
- Switching frequency 5000 Hz
- Static voltage drop: 2 V
- Short-circuit protection: Yes
- Reverse polarity protection: Yes
- Exchange possibility protected: Yes
- Guaranteed switching distance of Sa: 1.21 mm
- Hysteresis H max. (% of Sr): 15.0%
- Rated switching distance Sn: 1.5 mm
- Real switching distance Sr:1.5 mm
- Real switching distance Sr, tolerance: ±10 %
- Temperature drift max. (% of Sr): 10%
- Repeatability max. (% of Sr): 5.0%
- MTTF (40 °C) 305 a
- Active surface, material: PBT
- Tightening torque 1 Nm
- Size M5x0.5
- Mounting length 26.00 mm
- Flush mounting: Flush mounting
- Switching output: PNP NO
- Connection type: Cable, 5.00 m, PUR
- Cable diameter D 3.00 mm
- Cable length 5 m
- Switching distance indicator: ■■
- Housing material: Stainless steel
- Sheath material: PUR
- EN 60068-2-27, shock: Half sine, 30 gn, 11 ms
- EN 60068-2-6, vibration:55 Hz, amplitude 1 mm, 3x30 min.
- Protection class IP67
- Ambient temperature: -25 to 70 °C
- Pollution level 3
- Number of conductors: 3
- Conductor cross-section: 0.14 mm²
- Product type
Inductive sensor
- Type
BES00H4
- Min. operating voltage
10.0 V
- Max. operating voltage
30.0 V
- Operating voltage
10.0 - 30.0 V
- Contact type
1 PNP
- Switching distance (max.)
1.21 mm
- Outputs
PNP
- Enclosure material
Stainless steel
- Model
Inductive
- Material properties
rust-proof
- Installation type
shielded
- Size
M5
- Connector
M5
- Cable length
5.00 m
- Min. temperature
-25 °C
- Max. temperature
70 °C
IP67
- Length
27.00 mm
- (Ø)
5 mm
- Dim
(Ø x L) 5 mm x 27.00 mm
- Content
1 pc(s)
- Nominal voltage
24 V
- Switching frequency
5000 Hz
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3416072 BALLUFF Inductive sensor Inductive BES00H4 BES00H4 M5 shielded PNP (Ø x L) 5 mm x 27.00 mm
User & Safety Instructions
User & Safety Instructions 3416072 BALLUFF Inductive sensor Inductive BES00H4 BES00H4 M5 shielded PNP (Ø x L) 5 mm x 27.00 mm
Description
Our standard inductive sensors are Ideal for object detection in the metal field. They are short circuit proof and operate without contact, i.e. they are wear-free and are resistant to contamination. The sensors are available in designs from Ø 3 mm to 80 × 80 mm square size. Particularly economical solutions enable you to use the robust and reliable inductive global sensors. We can also deliver the wide range of these over 500 preferred versions in high quantities worldwide at short notice. Dimensions=Ø 5 x 27 mm, design=M5x0.5, installation=flush, range=1.5 mm, switching output=PNP NO contact (NO), Switching frequency=5000 Hz, housing material=stainless steel, active surface, material=PBT, connection=cable, 5.00 m, PUR, operating voltage Ub=10...30 VDC, ambient temperature=-25...70 °C, protection class=IP67, approval/conformity=cULusCEEACWEEE
