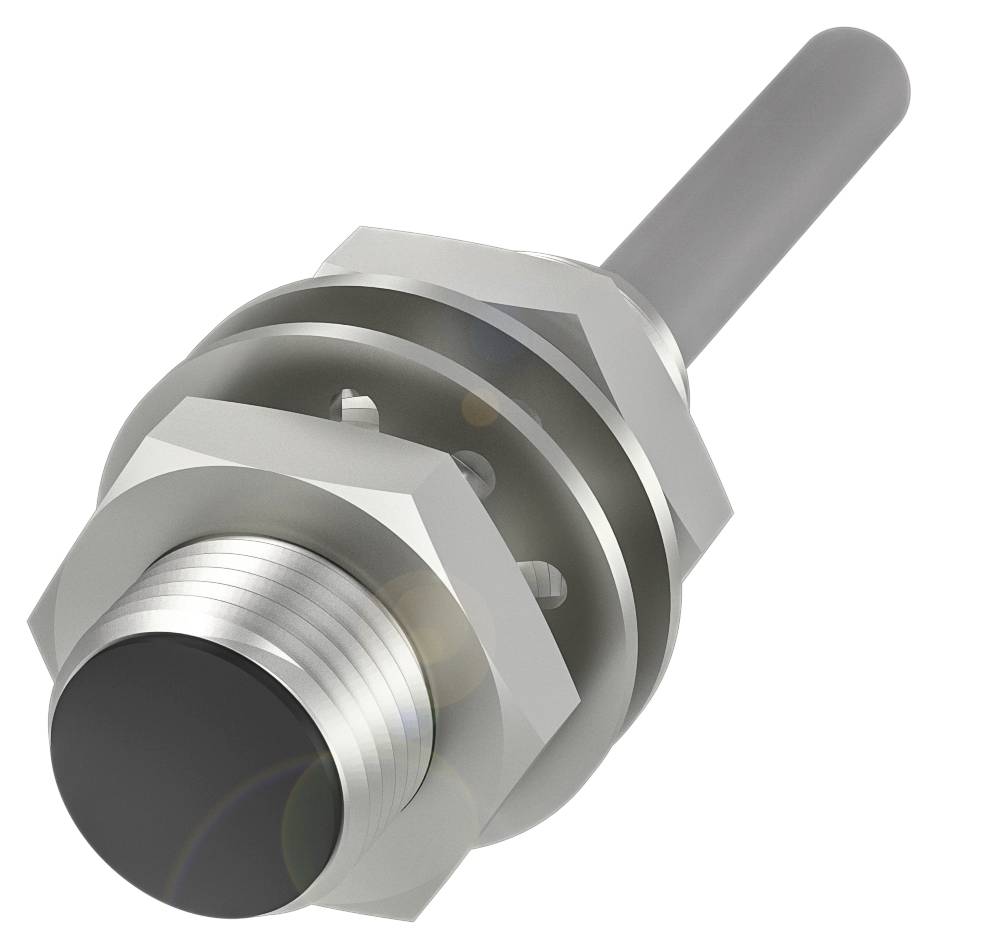

Image similar
BALLUFF Inductive sensor Inductive BES00T6 BES00T6 shielded NPN (Ø x H) 12 mm x 33 m Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Inductive sensor
Max. operating voltage
30.0 V
Outputs
NPN
Switching distance (max.)
3.2 mm
Datasheet (PDF)
Highlights & Details
Balluff BES00T6 Inductive proximity switches
- Dimensions: Ø 12 x 33 mm
- Design M12x1
- Flush mounting
- Range: 4 mm
- Switching output: NPN no (NO)
Technical specifications
- Main features:Dimensions: Ø 12 x 33 mm
- Active surface, material: PBT
- Connection: Cable, 2.00 m, PVC
- Design M12x1
- Operating voltage Ub 10...30 VDC
- Flush mounting
- Housing material: Brass, nickel-free coated
- Range: 4 mm
- Switching output: NPN no (NO)
- Switching frequency 2500 Hz
- Protection type IP68, according to BWN Pr 20
- Ambient temperature: -25 to 70 °C
- Additional features:
- Dimensions: Ø 12 x 33 mm
- Operating voltage display: No.
- Function display: Yes
- Output resistance Ra: 33.0 kOhm + D
- Rated operating voltage Ue DC 24 V
- Rated operating current Ie 200 mA
- Rated insulation voltage UI 250 V AC
- Rated short-circuit current 100 A.
- Standby delay TV max.: 21 ms
- Operating voltage Ub 10...30 VDC
- Usage category: DC-13
- Minimum operating current Im: 0 mA
- Load capacity max. at Ue 1 µF
- Idle current IO max., dammed.: 5 mA
- Idle current IO max., unattenuated: 2 mA
- Residual current l max. 30 µA
- Residual ripple max. (% of Ue): 15%
- Switching frequency 2500 Hz
- Protection class: II
- Static voltage drop: 1.5 V
- Short-circuit protection: Yes
- Reverse polarity protection: Yes
- Exchange possibility protected: Yes
- Guaranteed switching distance of Sa: 3.2 mm
- Hysteresis H max. (% of Sr): 15.0%
- Rated switching distance Sn: 4 mm
- Real switching distance Sr:4 mm
- Real switching distance Sr, tolerance: ±10 %
- Temperature drift max. (% of Sr): 10%
- Repeatability max. (% of Sr): 5.0%
- MTTF (40 °C) 850 a
- Active surface, material: PBT
- Tightening torque 10 Nm
- Size M12x1
- Mounting length 27 mm
- Flush mounting: Flush mounting
- Switching output: NPN no (NO)
- Connection type: Cable, 2.00 m, PVC
- Cable diameter D 4.65 mm
- Cable length 2 m
- Switching distance indicator: ■■
- Housing material: Brass, nickel-free coated
- Jacket material PVC
- EN 60068-2-27, shock: Half sine, 30 gn, 11 ms
- EN 60068-2-6, vibration:55 Hz, amplitude 1 mm, 3x30 min.
- Protection type IP68, according to BWN Pr 20
- Ambient temperature: -25 to 70 °C
- Pollution level 3
- Number of conductors: 3
- Conductor cross-section: 0.34 mm²
- Packaging type
Piece
- Product type
Inductive sensor
- Type
BES00T6
- Min. operating voltage
10.0 V
- Max. operating voltage
30.0 V
- Operating voltage
10.0 - 30.0 V
- Outputs
NPN
- Cable length
2.00 m
- Switching distance (max.)
3.2 mm
- Switching frequency
2500 Hz
- Model
Inductive
- Connector
M12
- Installation type
shielded
- Enclosure material
Brass
- Contact type
1 maker
IP68
- Min. temperature
-25 °C
- Max. temperature
70 °C
- Length
33.00 mm
- Height
33 m
- (Ø)
12 mm
- Dim
(Ø x H) 12 mm x 33 m
- Nominal voltage
24 V
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3417047 BALLUFF Inductive sensor Inductive BES00T6 BES00T6 shielded NPN (Ø x H) 12 mm x 33 m Piece
User & Safety Instructions
User & Safety Instructions 3417047 BALLUFF Inductive sensor Inductive BES00T6 BES00T6 shielded NPN (Ø x H) 12 mm x 33 m Piece
Description
Our standard inductive sensors are Ideal for object detection in the metal field. They are short circuit proof and operate without contact, i.e. they are wear-free and are resistant to contamination. The sensors are available in designs from Ø 3 mm to 80 × 80 mm square size. Particularly economical solutions enable you to use the robust and reliable inductive global sensors. We can also deliver the wide range of these over 500 preferred versions in high quantities worldwide at short notice. Inductive sensor, Ø 12 x 33 mm, cable, NO, nominal switching distance Sn=4 mm, flush, Housing material=brass, active surface, material=LCP
