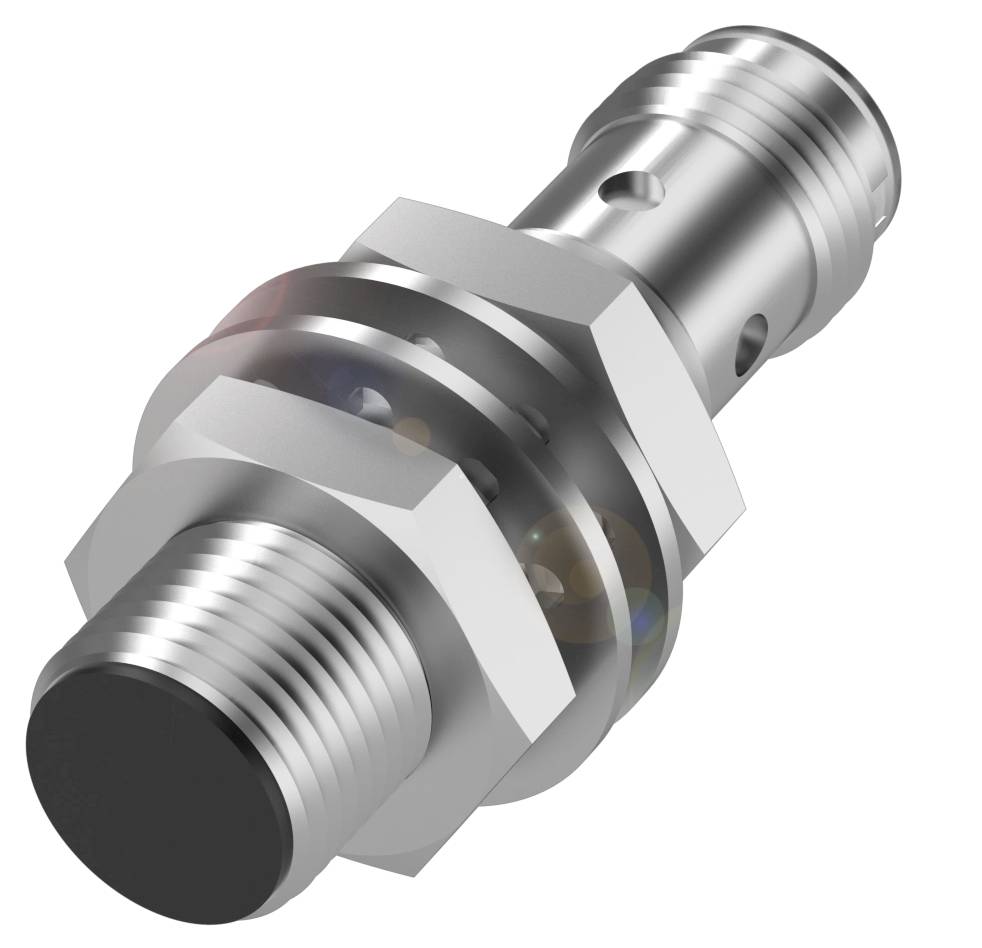

BALLUFF Inductive sensor Inductive BES00TC BES00TC M12 shielded NPN (Ø x L) 12 mm x 45.00 mm
EAN:
Part number:
Item no:
Product type
Inductive sensor
Max. operating voltage
30.0 V
Switching distance (max.)
3.2 mm
Outputs
NPN
Model
Inductive
Datasheet (PDF)
Highlights & Details
Balluff BES00TC inductive proximity switch
- Dimensions: Ø 12 x 45 mm
- Design M12x1
- Flush mounting
- Range: 4 mm
- Switching output: NPN no (NO)
Technical specifications
- Main features:Dimensions: Ø 12 x 45 mm
- Active surface, material: PBT
- Connection: Connector, M12x1 connector, 4-pin
- Design M12x1
- Operating voltage Ub 10...30 VDC
- Flush mounting
- Housing material: Brass, nickel-free coated
- Range: 4 mm
- Switching output: NPN no (NO)
- Switching frequency 2500 Hz
- Protection class: IP68
- Ambient temperature: -25 to 70 °C
- Additional features:
- Dimensions: Ø 12 x 45 mm
- Operating voltage display: No.
- Function display: Yes
- Output resistance Ra: 33.0 kOhm + D
- Rated operating voltage Ue DC 24 V
- Rated operating current Ie 200 mA
- Rated insulation voltage UI 250 V AC
- Rated short-circuit current 100 A.
- Standby delay TV max.: 21 ms
- Operating voltage Ub 10...30 VDC
- Usage category: DC-13
- Minimum operating current Im: 0 mA
- Load capacity max. at Ue 1 µF
- Idle current IO max., dammed.: 5 mA
- Idle current IO max., unattenuated: 2 mA
- Residual current l max. 10 µA
- Residual ripple max. (% of Ue): 15%
- Switching frequency 2500 Hz
- Protection class: II
- Static voltage drop: 1.5 V
- Connection: M12x1 4-pin connector, A-coded
- Short-circuit protection: Yes
- Reverse polarity protection: Yes
- Exchange possibility protected: Yes
- Guaranteed switching distance of Sa: 3.2 mm
- Hysteresis H max. (% of Sr): 15.0%
- Rated switching distance Sn: 4 mm
- Real switching distance Sr:4 mm
- Real switching distance Sr, tolerance: ±10 %
- Temperature drift max. (% of Sr): 10%
- Repeatability max. (% of Sr): 5.0%
- MTTF (40 °C) 555 a
- Active surface, material: PBT
- Housing material Mechanical characteristics: Brass, nickel-free coated
- Tightening torque 10 Nm
- Size M12x1
- Mounting length 29.50 mm
- Flush mounting: Flush mounting
- Switching output: NPN no (NO)
- Switching distance indicator: ■■
- Product type
Inductive sensor
- Type
BES00TC
- Min. operating voltage
10.0 V
- Max. operating voltage
30.0 V
- Operating voltage
10.0 - 30.0 V
- Switching distance (max.)
3.2 mm
- Outputs
NPN
- Enclosure material
Brass
- Model
Inductive
- Installation type
shielded
- Size
M12
- Connector
M12
- Min. temperature
-25 °C
- Max. temperature
70 °C
IP68
- Length
45.00 mm
- (Ø)
12 mm
- Dim
(Ø x L) 12 mm x 45.00 mm
- Content
1 pc(s)
- Nominal voltage
24 V
- Switching frequency
2500 Hz
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3417083 BALLUFF Inductive sensor Inductive BES00TC BES00TC M12 shielded NPN (Ø x L) 12 mm x 45.00 mm
User & Safety Instructions
User & Safety Instructions 3417083 BALLUFF Inductive sensor Inductive BES00TC BES00TC M12 shielded NPN (Ø x L) 12 mm x 45.00 mm
Description
Our standard inductive sensors are Ideal for object detection in the metal field. They are short circuit proof and operate without contact, i.e. they are wear-free and are resistant to contamination. The sensors are available in designs from Ø 3 mm to 80 × 80 mm square size. Particularly economical solutions enable you to use the robust and reliable inductive global sensors. We can also deliver the wide range of these over 500 preferred versions in high quantities worldwide at short notice. Dimensions=Ø 12 x 45 mm, design=M12x1, installation=flush, range=4 mm, switching output=NPN NO contact (NO), Switching frequency=2500 Hz, casing material=brass, surface protection=nickel-free coated, active surface, material=PBT, connection=plug connector, M12x1 plug, 4-pin, operating voltage Ub=10...30 VDC, ambient temperature=-25...70 °C, Protection class=IP68, approval/conformity=CecULusEACWEEE
