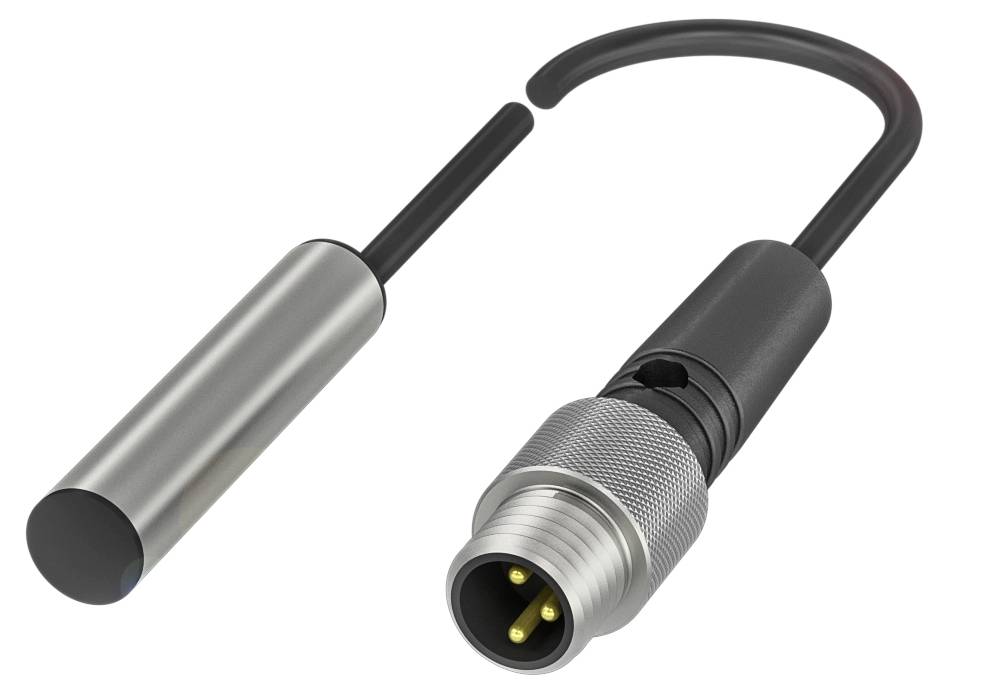

Image similar
BALLUFF Inductive sensor Inductive BES00ZP BES00ZP shielded PNP (Ø x L) 6.5 mm x 30.00 mm Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Inductive sensor
Max. operating voltage
30.0 V
Outputs
PNP
Switching distance (max.)
1.6 mm
Datasheet (PDF)
Highlights & Details
Balluff BES00ZP Inductive Proximity Switches
- Dimensions: Ø 6.5 x 30 mm
- D6.5 design
- Flush mounting
- Range: 2 mm
- Switching output: PNP NO
Technical specifications
- Main features:Dimensions: Ø 6.5 x 30 mm
- Active surface, material: PBT
- Connection: Cable with plug connector, M8x1 plug, 3-pin, 0.20 m, PUR
- D6.5 design
- Operating voltage Ub 10...30 VDC
- Flush mounting
- Housing material: Stainless steel
- Range: 2 mm
- Switching output: PNP NO
- Switching frequency 5000 Hz
- Protection class: IP68
- Ambient temperature -40...85 °C
- Additional features:
- Dimensions: Ø 6.5 x 30 mm
- Operating voltage display: No.
- Function display: Yes
- Output resistance Ra: 33.0 kOhm
- Rated operating voltage Ue DC 24 V
- Rated operating current Ie 200 mA
- Rated insulation voltage UI 250 V AC
- Rated short-circuit current 100 A.
- Standby delay TV max.: 25 ms
- Operating voltage Ub 10...30 VDC
- Usage category: DC-13
- Load capacity max. at Ue 1.0 µF
- Idle current IO max., dammed.: 7 mA
- Idle current IO max., unattenuated: 2 mA
- Residual current l max. 10 µA
- Residual ripple max. (% of Ue): 10%
- Switching frequency 5000 Hz
- Protection class: II
- Static voltage drop: 2.5 V
- M8x1 connection, 3-pin
- Short-circuit protection: Yes
- Reverse polarity protection: Yes
- Exchange possibility protected: Yes
- Guaranteed switching distance of Sa: 1.6 mm
- Hysteresis H max. (% of Sr): 15.0%
- Rated switching distance Sn: 2 mm
- Real switching distance Sr:2 mm
- Real switching distance Sr, tolerance: ±10 %
- Temperature drift max. (% of Sr): 10%
- Repeatability max. (% of Sr): 5.0%
- MTTF (40 °C) 595 a
- Active surface, material: PBT
- Size D6.5
- Mounting length 28.00 mm
- Flush mounting: Flush mounting
- Switching output: PNP NO
- Connection type: Cable with connector, 0.20 m,|PUR
- Cable diameter D 3.0 mm
- Cable length 0.2 m
- Switching distance indicator: ■■
- Housing material: Stainless steel
- Sheath material: PUR
- EN 60068-2-27, shock: Half sine, 30 gn, 11 ms
- EN 60068-2-6, vibration:55 Hz, amplitude 1 mm, 3x30 min.
- Protection class: IP68
- Ambient temperature -40...85 °C
- Pollution level 3
- Number of conductors: 3
- Conductor cross-section: 0.14 mm²
- Packaging type
Piece
- Product type
Inductive sensor
- Type
BES00ZP
- Min. operating voltage
10.0 V
- Max. operating voltage
30.0 V
- Operating voltage
10.0 - 30.0 V
- Outputs
PNP
- Cable length
0.20 m
- Switching distance (max.)
1.6 mm
- Switching frequency
5000 Hz
- Model
Inductive
- Connector
M8 (3-pin)
- Installation type
shielded
- Enclosure material
Stainless steel
- Contact type
1 maker
IP68
- Min. temperature
-40 °C
- Max. temperature
85 °C
- Length
30.00 mm
- (Ø)
6.5 mm
- Dim
(Ø x L) 6.5 mm x 30.00 mm
- Nominal voltage
24 V
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3416100 BALLUFF Inductive sensor Inductive BES00ZP BES00ZP shielded PNP (Ø x L) 6.5 mm x 30.00 mm Piece
User & Safety Instructions
User & Safety Instructions 3416100 BALLUFF Inductive sensor Inductive BES00ZP BES00ZP shielded PNP (Ø x L) 6.5 mm x 30.00 mm Piece
Description
Our standard inductive sensors are Ideal for object detection in the metal field. They are short circuit proof and operate without contact, i.e. they are wear-free and are resistant to contamination. The sensors are available in designs from Ø 3 mm to 80 × 80 mm square size. Particularly economical solutions enable you to use the robust and reliable inductive global sensors. We can also deliver the wide range of these over 500 preferred versions in high quantities worldwide at short notice. Dimensions=Ø 6.5 x 30 mm, design=D6.5, mount=flush, range=2 mm, switch output=PNP NO (NO), Switching frequency=5000 Hz, casing material=stainless steel, active surface, material=PBT, connection=cable with connector, M8x1 plug, 3-pin, 0.20 m, PUR, operating voltage Ub=10...30 VDC, Ambient temperature=-40...85 °C, protection class=IP68, approval/conformity=CEEACcULusWEEE
