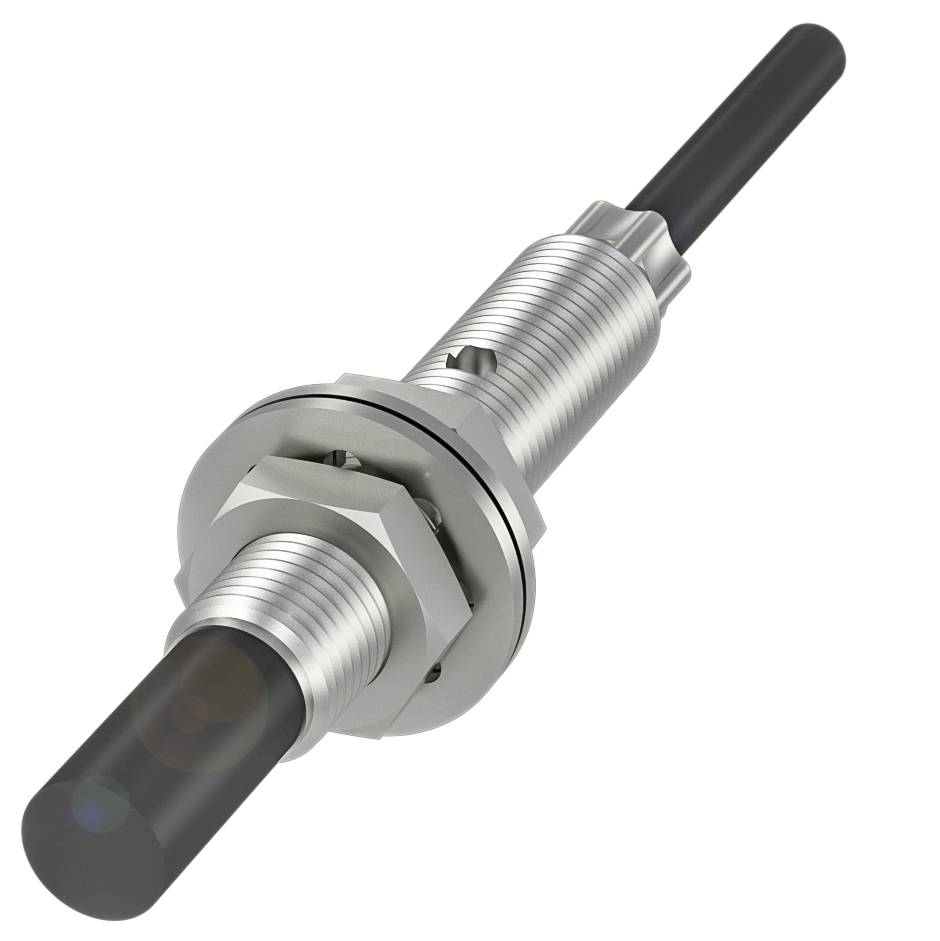

Image similar
BALLUFF Inductive sensor Inductive BES013E BES013E M5 non-shielded PNP (Ø x H) 5 mm x 35 m Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Inductive sensor
Max. operating voltage
30.0 V
Contact type
1 maker
Switching distance (max.)
4.05 mm
Datasheet (PDF)
Highlights & Details
BES013E Cylindrical Miniature Design
- Dimensions: Ø 5 x 35 mm
- Size: M5x0.5
- Fitting: Non-shielded
- Range: 5 mm
- Switching output: PNP NO
Technical specifications
- Main features:Dimensions: Ø 5 x 35 mm
- Active surface, material: PET-C
- Connection: Cable, 2.00 m, PUR
- Size: M5x0.5
- Operating voltage Ub 10...30 VDC
- Fitting: Non-shielded
- Housing material: Stainless steel
- Range: 5 mm
- Switching output: PNP NO
- Switching frequency 3000 Hz
- Protection class IP67
- Ambient temperature: -25 to 70 °C
- Additional features:
- Dimensions: Ø 5 x 35 mm
- Operating voltage display: No.
- Function display: Yes
- Output resistance Ra: Open collector
- Rated operating voltage Ue DC 24 V
- Rated operating current Ie 100 mA
- Rated insulation voltage UI 75 V DC
- Rated short-circuit current 100 A.
- Standby delay TV max.: 20 ms
- Operating voltage Ub 10...30 VDC
- Usage category: DC-13
- Minimum operating current Im: 0 mA
- Load capacity max. at Ue 0.5 µF
- Idle current IO max., dammed.: 10 mA
- Idle current IO max., unattenuated: 8 mA
- Residual current l max. 10 µA
- Residual ripple max. (% of Ue): 10%
- Switching frequency 3000 Hz
- Static voltage drop: 2.5 V
- Short-circuit protection: Yes
- Reverse polarity protection: Yes
- Exchange possibility protected: Yes
- Guaranteed switching distance of Sa: 4.05 mm
- Hysteresis H max. (% of Sr): 20.0%
- Rated switching distance Sn: 5 mm
- Real switching distance Sr:5 mm
- Real switching distance Sr, tolerance: ±10 %
- Temperature drift max. (% of Sr): 10%
- Repeatability max. (% of Sr): 10.0%
- MTTF (40 °C) 735 a
- Active surface, material: PET-C
- Tightening torque 1 Nm
- Size M5x0.5
- Fitting: Non-shielded
- Switching output: PNP NO
- Connection type: Cable, 2.00 m, PUR
- Cable diameter D 3.00 mm
- Cable length 2 m
- Switching distance indicator: ■■■
- Housing material: Stainless steel
- Sheath material: PUR
- EN 60068-2-27, shock: Half sine, 30 gn, 11 ms
- EN 60068-2-6, vibration:55 Hz, amplitude 1 mm, 3x30 min.
- Protection class IP67
- Ambient temperature: -25 to 70 °C
- Pollution level 3
- Number of conductors: 3
- Conductor cross-section: 0.14 mm²
- Packaging type
Piece
- Product type
Inductive sensor
- Type
BES013E
- Min. operating voltage
10.0 V
- Max. operating voltage
30.0 V
- Operating voltage
10.0 - 30.0 V
- Contact type
1 maker
- Switching distance (max.)
4.05 mm
- Outputs
PNP
- Enclosure material
Stainless steel
- Model
Inductive
- Installation type
non-shielded
- Size
M5
- Connector
M5
- Cable length
2.00 m
- Min. temperature
-25 °C
- Max. temperature
70 °C
IP67
- Length
35.00 mm
- Height
35 m
- (Ø)
5 mm
- Dim
(Ø x H) 5 mm x 35 m
- Content
1 pc(s)
- Nominal voltage
24 V
- Switching frequency
3000 Hz
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3416879 BALLUFF Inductive sensor Inductive BES013E BES013E M5 non-shielded PNP (Ø x H) 5 mm x 35 m Piece
User & Safety Instructions
User & Safety Instructions 3416879 BALLUFF Inductive sensor Inductive BES013E BES013E M5 non-shielded PNP (Ø x H) 5 mm x 35 m Piece
Description
Our inductive standard BES sensors for the detection of electrically conductive metallic objects are robust and reliable. With a wide range of over 500 series, we offer the right inductive sensor for every application. The technology used worldwide has an optimum price-performance ratio and is available in a short time even for high quantities. Dimensions = Ø 5 x 35 mm, design = M5x0.5, installation = not flush, range = 5 mm, switching output = PNP NO, switching frequency = 3000 Hz, housing material = stainless steel, active surface, material = PET-C, connection = cable, 2.00 m, PUR, operating voltage Ub = 10...30 VDC, ambient temperature = -25...70 °C, protection class = IP67, certification/conformity = CE, UKCA, cULus, WEEE
