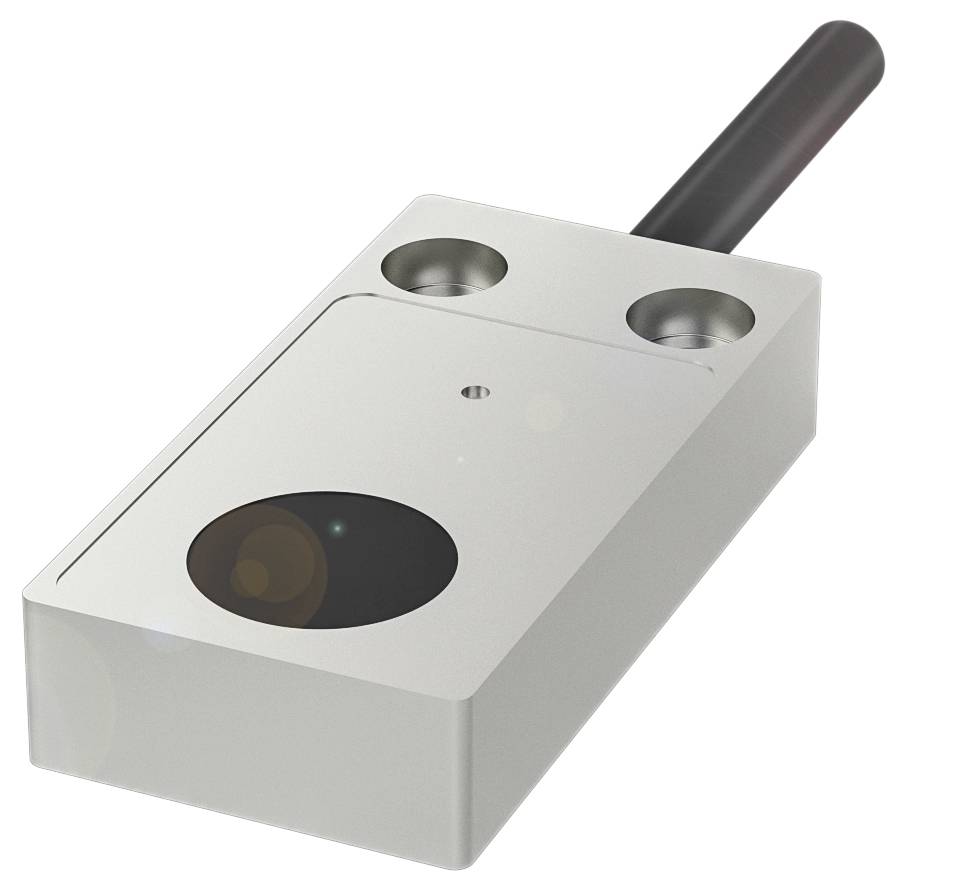

BALLUFF Inductive sensor Inductive BES01FJ BES01FJ shielded PNP (L x W x H) 10.00 x 50.00 x 25.00 mm
EAN:
Part number:
Item no:
Product type
Inductive sensor
Max. operating voltage
30.0 V
Switching distance (max.)
4 mm
Outputs
PNP
Model
Inductive
Datasheet (PDF)
Highlights & Details
Balluff BES01FJ Inductive Proximity Switches
- Dimensions 50 x 25 x 10 mm
- Design:50x25-10
- Flush mounting
- Range: 5 mm
- Switching output: PNP NO
Technical specifications
- Main features:Dimension 50 x 25 x 10 mm
- Active surface, material: PBT
- Connection: Cable, 3.00 m, PVC
- Design:50x25-10
- Operating voltage Ub 10...30 VDC
- Flush mounting
- Housing material: Aluminium, die-cast
- Range: 5 mm
- Switching output: PNP NO
- Switching frequency 500 Hz
- Protection class IP67
- Ambient temperature: -25 to 70 °C
- Additional features:
- Operating voltage display: No.
- Function display: Yes
- Output resistance Ra: 2.2 kOhm + D + LED
- Rated operating voltage Ue DC 24 V
- Rated operating current Ie 200 mA
- Rated insulation voltage UI 75 V DC
- Rated short-circuit current 100 A.
- Standby delay TV max.: 10 ms
- Operating voltage Ub 10...30 VDC
- Usage category: DC-13
- Minimum operating current Im: 0 mA
- Load capacity max. at Ue 1 µF
- Idle current IO max., dammed.: 25 mA
- Idle current IO max., unattenuated: 12 mA
- Residual current l max. 80 µA
- Residual ripple max. (% of Ue): 15%
- Switching frequency 500 Hz
- Static voltage drop: 2.5 V
- Short-circuit protection: Yes
- Reverse polarity protection: Yes
- Exchange possibility protected: Yes
- Guaranteed switching distance of Sa: 4 mm
- Hysteresis H max. (% of Sr): 15.0%
- Rated switching distance Sn: 5 mm
- Real switching distance Sr:5 mm
- Real switching distance Sr, tolerance: ±10 %
- Temperature drift max. (% of Sr): 10%
- Repeatability max. (% of Sr): 5.0%
- MTTF (40 °C) 930 a
- Connection type: Cable, 3.00 m, PVC
- Cable diameter D 4.60 mm
- Cable length 3 m
- Number of conductors: 3
- Conductor cross-section: 0.34 mm²
- Product type
Inductive sensor
- Type
BES01FJ
- Min. operating voltage
10.0 V
- Max. operating voltage
30.0 V
- Operating voltage
10.0 - 30.0 V
- Switching distance (max.)
4 mm
- Outputs
PNP
- Enclosure material
Aluminium
- Model
Inductive
- Material properties
Die-cast
- Installation type
shielded
- Connector
Cable
- Cable length
3.00 m
- Min. temperature
-25 °C
- Max. temperature
70 °C
IP67
- Length
10.00 mm
- Width
50.00 mm
- Height
25.00 mm
- Dim
(L x W x H) 10.00 x 50.00 x 25.00 mm
- Content
1 pc(s)
- Nominal voltage
24 V
- Switching frequency
500 Hz
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3416140 BALLUFF Inductive sensor Inductive BES01FJ BES01FJ shielded PNP (L x W x H) 10.00 x 50.00 x 25.00 mm
User & Safety Instructions
User & Safety Instructions 3416140 BALLUFF Inductive sensor Inductive BES01FJ BES01FJ shielded PNP (L x W x H) 10.00 x 50.00 x 25.00 mm
Description
Our standard inductive sensors are Ideal for object detection in the metal field. They are short circuit proof and operate without contact, i.e. they are wear-free and are resistant to contamination. The sensors are available in designs from Ø 3 mm to 80 × 80 mm square size. Particularly economical solutions enable you to use the robust and reliable inductive global sensors. We can also deliver the wide range of these over 500 preferred versions in high quantities worldwide at short notice. Dimensions=50 x 25 x 10 mm, design=square-shaped, installation=flush, range=5 mm, switching output=PNP NO (NO), Switching frequency=500 Hz, casing material=aluminum, die-cast, active surface, material=PBT, connection=cable, 3.00 m, PVC, operating voltage Ub=10...30 VDC, ambient temperature=-25...70 °C, Protection class=IP67, Approval/conformity=CEEACWEEE
