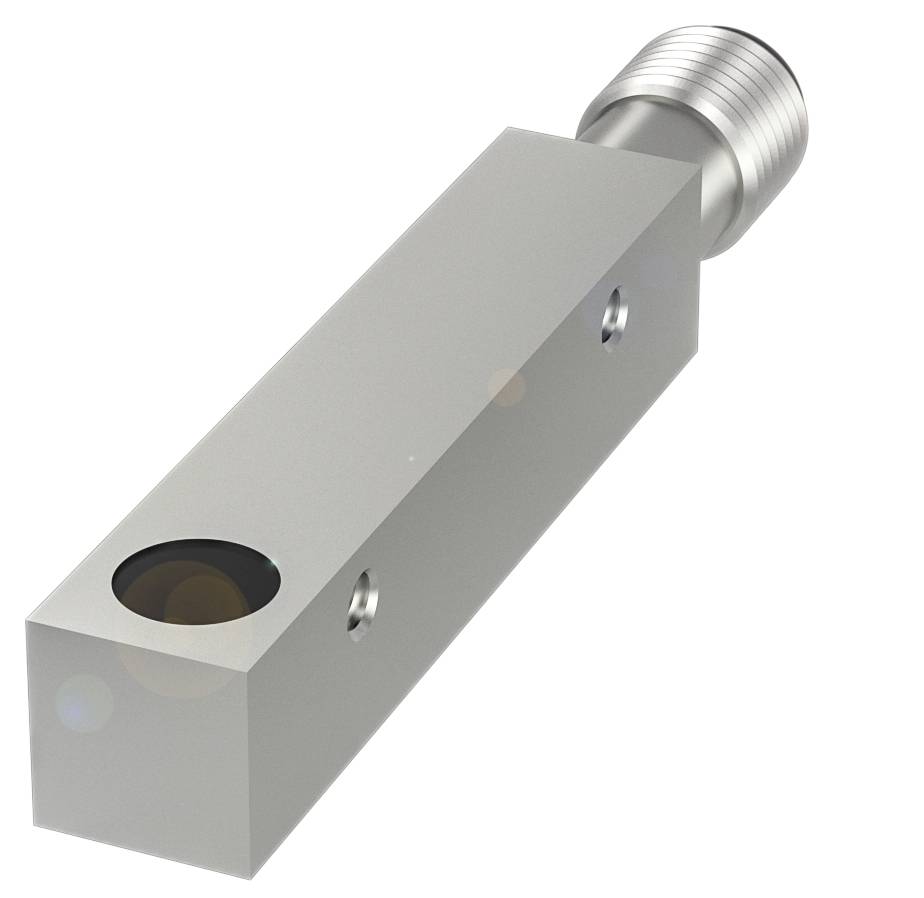

Image similar
BALLUFF Inductive sensor Inductive BES01RP BES01RP 5 x 5 mm shielded PNP (L x W x H) 5.00 x 33.00 x 5.00 mm
EAN:
Part number:
Item no:
Product type
Inductive sensor
Max. operating voltage
30.0 V
Outputs
PNP
Switching distance (max.)
1.2 mm
Model
Inductive
Datasheet (PDF)
Highlights & Details
Balluff BES01RP Square compact design
- Dimensions 33 x 5 x 5 mm
- Design: 5x5
- Flush mounting
- Range: 1.5 mm
- Switching output: PNP NO
Technical specifications
- Main features:Dimension 33 x 5 x 5 mm
- Active surface, material: PBT
- Connection: Plug connector, M5x0.5 plug
- Design: 5x5
- Operating voltage Ub 10...30 VDC
- Flush mounting
- Housing material: Stainless steel (1.4305)
- Range: 1.5 mm
- Switching output: PNP NO
- Switching frequency 2000 Hz
- Protection class IP67
- Ambient temperature: -25 to 70 °C
- Additional features:
- Dimensions 33 x 5 x 5 mm
- Operating voltage display: No.
- Function display: Yes
- Output resistance Ra: Open collector
- Rated operating voltage Ue DC 24 V
- Rated operating current Ie 100 mA
- Rated insulation voltage UI 75 V DC
- Rated short-circuit current 100 A.
- Standby delay TV max.: 15 ms
- Operating voltage Ub 10...30 VDC
- Usage category: DC-13
- Minimum operating current Im: 1 mA
- Load capacity max. at Ue 0.2 µF
- Idle current IO max., dammed.: 10 mA
- Idle current IO max., unattenuated: 3 mA
- Residual current l max. 50 µA
- Residual ripple max. (% of Ue): 10%
- Switching frequency 2000 Hz
- Static voltage drop: 3 V
- Connection: M5x0.5 plug
- Short-circuit protection: Yes
- Reverse polarity protection: Yes
- Exchange possibility protected: Yes
- Guaranteed switching distance of Sa: 1.2 mm
- Hysteresis H max. (% of Sr): 15.0%
- Rated switching distance Sn: 1.5 mm
- Real switching distance Sr:1.5 mm
- Real switching distance Sr, tolerance: ±10 %
- Temperature drift max. (% of Sr): 20%
- Repeatability max. (% of Sr): 10.0%
- MTTF (40 °C) 830 a
- Active surface, material: PBT
- Housing material Mechanical characteristics: Stainless steel (1.4305)
- Size 5x5
- Flush mounting: Flush mounting
- Switching output: PNP NO
- Product type
Inductive sensor
- Type
BES01RP
- Min. operating voltage
10.0 V
- Max. operating voltage
30.0 V
- Operating voltage
10.0 - 30.0 V
- Outputs
PNP
- Switching distance (max.)
1.2 mm
- Switching frequency
2000 Hz
- Model
Inductive
- Connector
M5
- Installation type
shielded
- Size
5 x 5 mm
- Material properties
rust-proof
- Enclosure material
Stainless steel
- Contact type
1 maker
IP67
- Min. temperature
-25 °C
- Max. temperature
70 °C
- Length
5.00 mm
- Width
33.00 mm
- Height
5.00 mm
- Dim
(L x W x H) 5.00 x 33.00 x 5.00 mm
- Nominal voltage
24 V
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3417508 BALLUFF Inductive sensor Inductive BES01RP BES01RP 5 x 5 mm shielded PNP (L x W x H) 5.00 x 33.00 x 5.00 mm
User & Safety Instructions
User & Safety Instructions 3417508 BALLUFF Inductive sensor Inductive BES01RP BES01RP 5 x 5 mm shielded PNP (L x W x H) 5.00 x 33.00 x 5.00 mm
Description
Our standard inductive sensors are Ideal for object detection in the metal field. They are short circuit proof and operate without contact, i.e. they are wear-free and are resistant to contamination. The sensors are available in designs from Ø 3 mm to 80 × 80 mm square size. Particularly economical solutions enable you to use the robust and reliable inductive global sensors. We can also deliver the wide range of these over 500 preferred versions in high quantities worldwide at short notice. Dimensions = 33 x 5 x 5 mm, design = 5x5, installed = flush, range = 1.5 mm, switching output = PNP NO contact (NO), Switching frequency=2000 Hz, casing material=stainless steel (1.4305), active surface, material=PBT, connection=connector, M5x0.5 plug, operating voltage Ub=10...30 VDC, ambient temperature=-25...70 °C, protection class=IP67, approval/conformity=cULusCEEACWEEE
