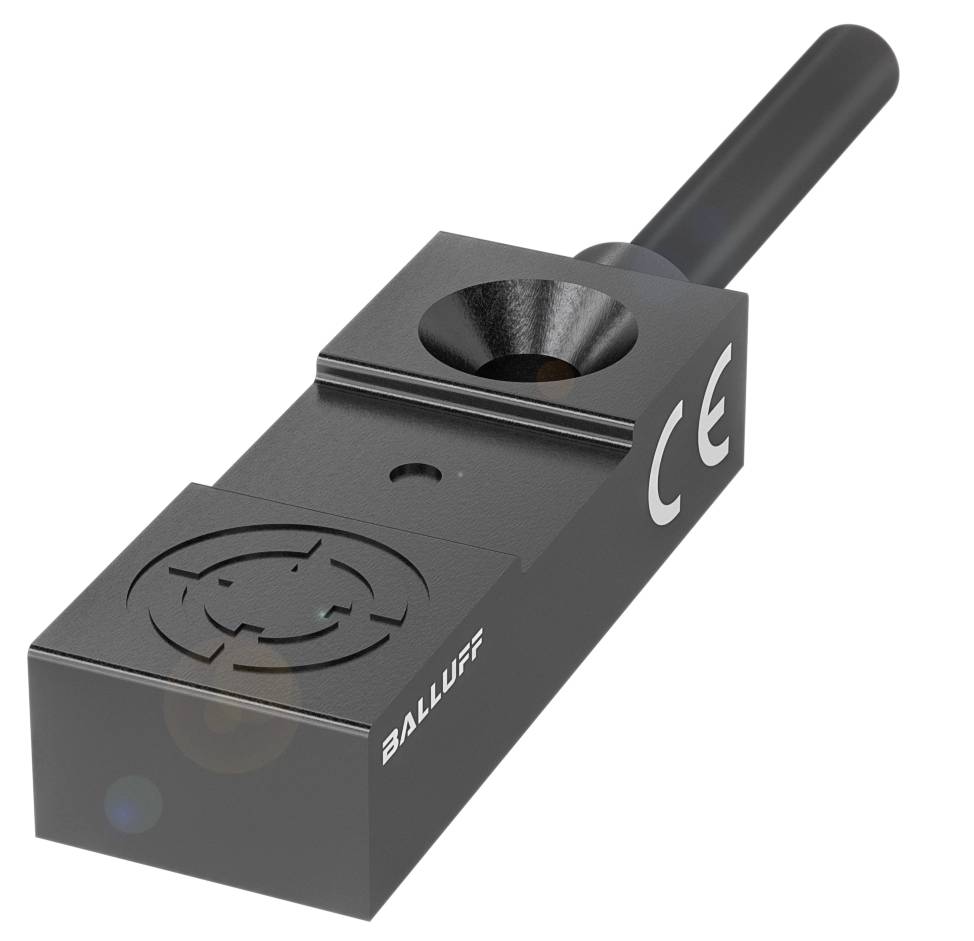

BALLUFF Inductive sensor Inductive BES01WT BES01WT shielded PNP (Ø x H) 3 m x 10.00 mm
EAN:
Part number:
Item no:
Product type
Inductive sensor
Max. operating voltage
30.0 V
Switching distance (max.)
2.4 mm
Outputs
PNP
Model
Inductive
Datasheet (PDF)
Highlights & Details
BES01WT cubic design
- Dimensions 30 x 10 x 6 mm
- 30x10x6
- Flush mounting
- Range: 3 mm
- Switching output: PNP NO
Technical specifications
- Main features:Dimension 30 x 10 x 6 mm
- Active surface, material: PA 6, GF30/black
- Connection: Cable, 5.00 m, TPU
- 30x10x6
- Operating voltage Ub 10...30 VDC
- Flush mounting
- PA 6, GF30 housing material
- Range: 3 mm
- Switching output: PNP NO
- Switching frequency 3000 Hz
- Protection class IP67
- Ambient temperature: -25 to 70 °C
- Additional features:
- Dimensions 30 x 10 x 6 mm
- Operating voltage display: No.
- Function display: Yes
- Output resistance Ra: Open collector
- Rated operating voltage Ue DC 24 V
- Rated operating current Ie 100 mA
- Rated insulation voltage UI 75 V DC
- Rated short-circuit current 100 A.
- Standby delay TV max.: 15 ms
- Operating voltage Ub 10...30 VDC
- Usage category: DC-12
- Load capacity max. at Ue 0.2 µF
- Idle current IO max., dammed.: 10 mA
- Idle current IO max., unattenuated: 3 mA
- Residual current l max. 1 µA
- Residual ripple max. (% of Ue): 15%
- Switching frequency 3000 Hz
- Static voltage drop: 2.5 V
- Short-circuit protection: Yes
- Reverse polarity protection: Yes
- Exchange possibility protected: Yes
- Guaranteed switching distance of Sa: 2.4 mm
- Hysteresis H max. (% of Sr): 15.0%
- Rated switching distance Sn: 3 mm
- Real switching distance Sr:3 mm
- Real switching distance Sr, tolerance: ±10 %
- Temperature drift max. (% of Sr): 10%
- Repeatability max. (% of Sr): 5.0%
- MTTF (40 °C) 830 a
- Active surface, material: PA 6, GF30/black
- Size 30x10x6
- Flush mounting: Flush mounting
- Switching output: PNP NO
- Connection type: Cable, 5.00 m, TPU
- Cable diameter D 3.00 mm
- Cable length 5 m
- PA 6, GF30 housing material
- Sheath material: TPU
- EN 60068-2-27, shock: Half sine, 30 gn, 11 ms
- EN 60068-2-6, vibration:55 Hz, amplitude 1 mm, 3x30 min.
- Protection class IP67
- Ambient temperature: -25 to 70 °C
- Pollution level 3
- Number of conductors: 3
- Conductor cross-section: 0.14 mm²
- Product type
Inductive sensor
- Type
BES01WT
- Min. operating voltage
10.0 V
- Max. operating voltage
30.0 V
- Operating voltage
10.0 - 30.0 V
- Switching distance (max.)
2.4 mm
- Outputs
PNP
- Enclosure material
PA
- Model
Inductive
- Installation type
shielded
- Connector
Cable
- Cable length
5.00 m
- Min. temperature
-25 °C
- Max. temperature
70 °C
IP67
- Length
6.00 mm
- Width
30.00 mm
- Height
10.00 mm
- (Ø)
3 m
- Dim
(Ø x H) 3 m x 10.00 mm
- Content
1 pc(s)
- Nominal voltage
24 V
- Switching frequency
3000 Hz
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3416716 BALLUFF Inductive sensor Inductive BES01WT BES01WT shielded PNP (Ø x H) 3 m x 10.00 mm
User & Safety Instructions
User & Safety Instructions 3416716 BALLUFF Inductive sensor Inductive BES01WT BES01WT shielded PNP (Ø x H) 3 m x 10.00 mm
Description
Our standard inductive sensors are Ideal for object detection in the metal field. They are short circuit proof and operate without contact, i.e. they are wear-free and are resistant to contamination. The sensors are available in designs from Ø 3 mm to 80 × 80 mm square size. Particularly economical solutions enable you to use the robust and reliable inductive global sensors. We can also deliver the wide range of these over 500 preferred versions in high quantities worldwide at short notice. Dimensions=30 x 10 x 6 mm, design=30x10x6, installation=flush, range=3 mm, switching output=PNP NO (NO), Switching frequency=3000 Hz, casing material=PA 6, GF30, active surface, material=PA 6, GF30/black, connection=cable, 5.00 m, TPU, operating voltage Ub=10...30 VDC, Ambient temperature=-25...70 °C, protection class=IP67, approval/conformity=CecULusEACWEEE
