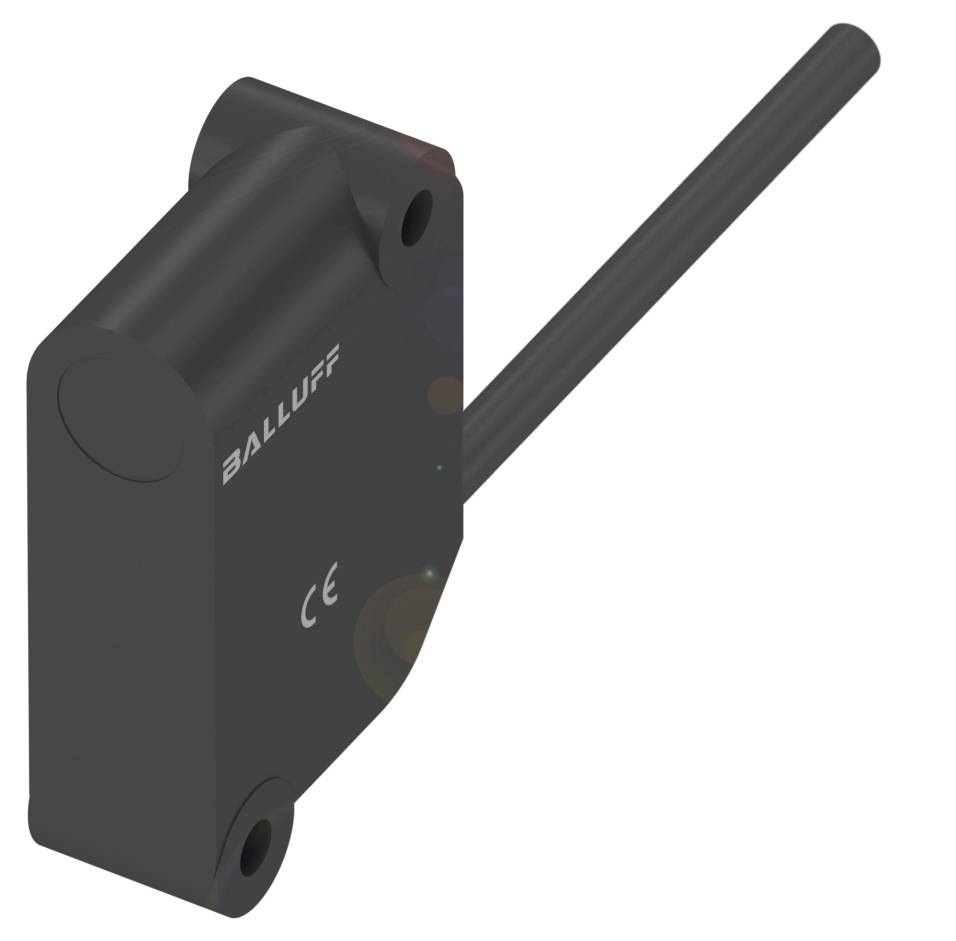

Image similar
BALLUFF Inductive sensor Inductive BES01ZE BES01ZE 12 x 26 x 40 mm shielded PNP (L x W x H) 26.00 x 40.00 x 12.00 mm
EAN:
Part number:
Item no:
Product type
Inductive sensor
Max. operating voltage
30.0 V
Switching distance (max.)
3.2 mm
Outputs
PNP
Model
Inductive
Datasheet (PDF)
Highlights & Details
Balluff BES01ZE Cubic design
- Dimensions 40 x 12 x 26 mm
- 40x12x26 design
- Flush mounting
- Range: 4 mm
- Switching output: PNP NO
Technical specifications
- Main features:Dimension 40 x 12 x 26 mm
- Active surface, material: PA 12
- Connection: Plug connector, M8x1 plug, 3-pin
- 40x12x26 design
- Operating voltage Ub 10...30 VDC
- Flush mounting
- PA 12 case material
- Range: 4 mm
- Switching output: PNP NO
- Switching frequency 400 Hz
- Protection class IP67
- Ambient temperature: -25 to 70 °C
- Additional features:
- Dimensions 40 x 12 x 26 mm
- Operating voltage display: No.
- Function display: Yes
- Output resistance Ra: 33.0 kOhm + D
- Rated operating voltage Ue DC 24 V
- Rated operating current Ie 200 mA
- Rated insulation voltage UI 75 V DC
- Rated short-circuit current 100 A.
- Standby delay TV max.: 10 ms
- Operating voltage Ub 10...30 VDC
- Usage category: DC-13
- Minimum operating current Im: 0 mA
- Load capacity max. at Ue 1 µF
- Idle current IO max., dammed.: 9 mA
- Idle current IO max., unattenuated: 4 mA
- Residual current l max. 80 µA
- Residual ripple max. (% of Ue): 15%
- Switching frequency 400 Hz
- Static voltage drop: 2.5 V
- M8x1 connection, 3-pin
- Short-circuit protection: Yes
- Reverse polarity protection: Yes
- Exchange possibility protected: Yes
- Guaranteed switching distance of Sa: 3.2 mm
- Hysteresis H max. (% of Sr): 15.0%
- Rated switching distance Sn: 4 mm
- Real switching distance Sr:4 mm
- Real switching distance Sr, tolerance: ±10 %
- Temperature drift max. (% of Sr): 10%
- Repeatability max. (% of Sr): 5.0%
- Active surface, material: PA 12
- Tightening torque 0.25 Nm
- Size 40x12x26
- Switching output: PNP NO
- PA 12 case material
- EN 60068-2-27, shock: Half sine, 30 gn, 11 ms
- EN 60068-2-6, vibration:55 Hz, amplitude 1 mm, 3x30 min.
- Protection class IP67
- Ambient temperature: -25 to 70 °C
- Pollution level 3
- Mounted interface: Flush mounting
- Product type
Inductive sensor
- Type
BES01ZE
- Min. operating voltage
10.0 V
- Max. operating voltage
30.0 V
- Operating voltage
10.0 - 30.0 V
- Switching distance (max.)
3.2 mm
- Outputs
PNP
- Enclosure material
PA
- Model
Inductive
- Installation type
shielded
- Size
12 x 26 x 40 mm
- Connector
M8 (3-pin)
- Min. temperature
-25 °C
- Max. temperature
70 °C
IP67
- Length
26.00 mm
- Width
40.00 mm
- Height
12.00 mm
- Dim
(L x W x H) 26.00 x 40.00 x 12.00 mm
- Content
1 pc(s)
- Nominal voltage
24 V
- Switching frequency
400 Hz
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3417342 BALLUFF Inductive sensor Inductive BES01ZE BES01ZE 12 x 26 x 40 mm shielded PNP (L x W x H) 26.00 x 40.00 x 12.00 mm
User & Safety Instructions
User & Safety Instructions 3417342 BALLUFF Inductive sensor Inductive BES01ZE BES01ZE 12 x 26 x 40 mm shielded PNP (L x W x H) 26.00 x 40.00 x 12.00 mm
Description
Our standard inductive sensors are Ideal for object detection in the metal field. They are short circuit proof and operate without contact, i.e. they are wear-free and are resistant to contamination. The sensors are available in designs from Ø 3 mm to 80 × 80 mm square size. Particularly economical solutions enable you to use the robust and reliable inductive global sensors. We can also deliver the wide range of these over 500 preferred versions in high quantities worldwide at short notice. Dimensions=40 x 12 x 26 mm, design=40x12x26, installation=flush, range=4 mm, switching output=PNP NO contact (NO), Switching frequency=400 Hz, casing material=PA 12, active area, material=PA 12, connection=connector, M8x1 plug, 3-pin, operating voltage Ub=10...30 VDC, ambient temperature=-25...70 °C, protection class=IP67, approval/conformity=CecULusEACWEEE
