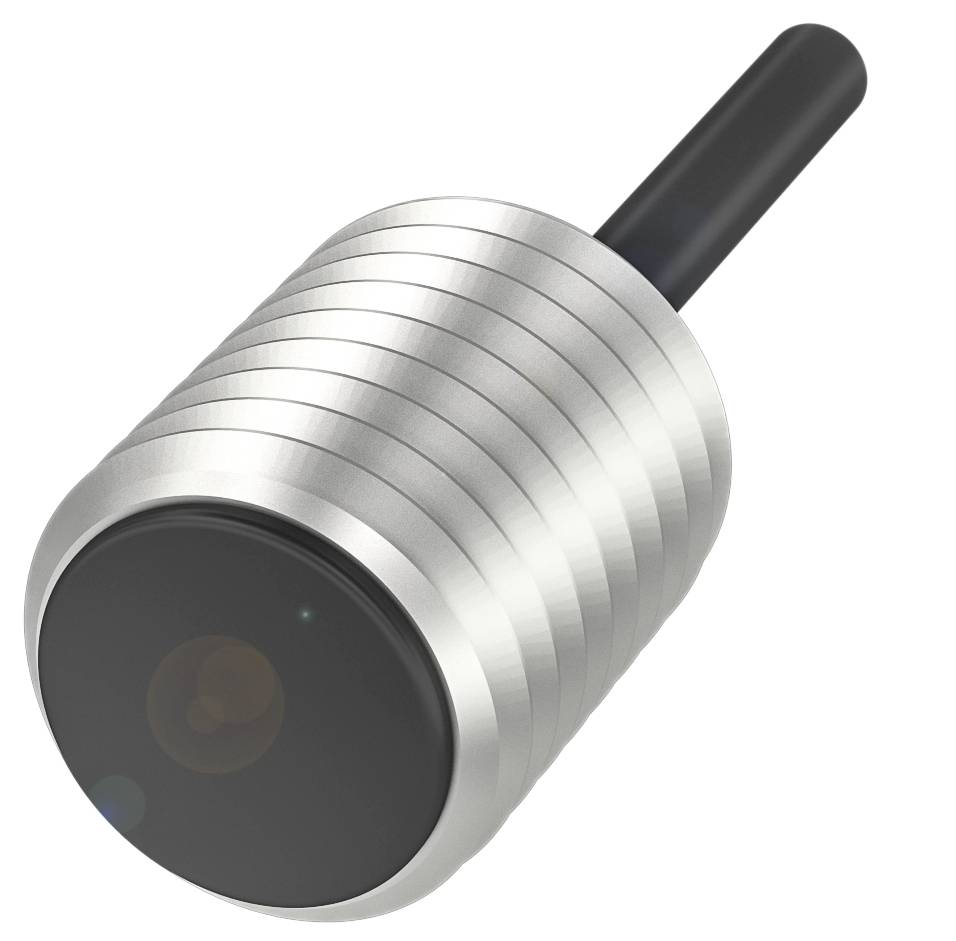

BALLUFF Inductive sensor Inductive BES026U BES026U shielded NPN (Ø x L) 8 mm x 10.00 mm
EAN:
Part number:
Item no:
Product type
Inductive sensor
Max. operating voltage
30.0 V
Outputs
NPN
Switching distance (max.)
1.2 mm
Model
Inductive
Datasheet (PDF)
Highlights & Details
BES026U Cylindrical Miniature Design
- Dimensions: Ø 8 x 10 mm
- M8x1 design
- Flush mounting
- Range: 1.5 mm
- Switching output: NPN no (NO)
Technical specifications
- Main features:Dimensions: Ø 8 x 10 mm
- Active surface, material: PBT
- Connection: Cable, 2.00 m, PUR
- M8x1 design
- Operating voltage Ub 10...30 VDC
- Flush mounting
- Housing material: Stainless steel
- Range: 1.5 mm
- Switching output: NPN no (NO)
- Switching frequency 3000 Hz
- Protection class IP67
- Ambient temperature: -25 to 70 °C
- Additional features:
- Dimensions: Ø 8 x 10 mm
- Operating voltage display: No.
- Function display: Yes
- Output resistance Ra: Open collector
- Rated operating voltage Ue DC 24 V
- Rated operating current Ie 150 mA
- Rated insulation voltage UI 75 V DC
- Rated short-circuit current 100 A.
- Standby delay TV max.: 20 ms
- Operating voltage Ub 10...30 VDC
- Usage category: DC-13
- Minimum operating current Im: 1 mA
- Load capacity max. at Ue 0.2 µF
- Idle current IO max., dammed.: 14 mA
- Idle current IO max., unattenuated: 3 mA
- Residual current l max. 10 µA
- Residual ripple max. (% of Ue): 10%
- Switching frequency 3000 Hz
- Static voltage drop: 2.5 V
- Short-circuit protection: Yes
- Reverse polarity protection: Yes
- Exchange possibility protected: Yes
- Guaranteed switching distance of Sa: 1.2 mm
- Hysteresis H max. (% of Sr): 15.0%
- Rated switching distance Sn: 1.5 mm
- Real switching distance Sr:1.5 mm
- Real switching distance Sr, tolerance: ±10 %
- Temperature drift max. (% of Sr): 10%
- Repeatability max. (% of Sr): 5.0%
- MTTF (40 °C) 585 a
- Active surface, material: PBT
- Tightening torque 4 Nm
- Size M8x1
- Flush mounting: Flush mounting
- Switching output: NPN no (NO)
- Connection type: Cable, 2.00 m, PUR
- Cable diameter D 2.10 mm
- Cable length 2 m
- Housing material: Stainless steel
- Sheath material: PUR
- EN 60068-2-27, shock: Half sine, 30 gn, 11 ms
- EN 60068-2-6, vibration:55 Hz, amplitude 1 mm, 3x30 min.
- Protection class IP67
- Ambient temperature: -25 to 70 °C
- Pollution level 3
- Number of conductors: 3
- Conductor cross-section: 0,073 mm²
- Product type
Inductive sensor
- Type
BES026U
- Min. operating voltage
10.0 V
- Max. operating voltage
30.0 V
- Operating voltage
10.0 - 30.0 V
- Outputs
NPN
- Cable length
2.00 m
- Switching distance (max.)
1.2 mm
- Switching frequency
3000 Hz
- Model
Inductive
- Connector
M8
- Installation type
shielded
- Enclosure material
Stainless steel
- Contact type
1 maker
IP67
- Min. temperature
-25 °C
- Max. temperature
70 °C
- Length
10.00 mm
- (Ø)
8 mm
- Dim
(Ø x L) 8 mm x 10.00 mm
- Nominal voltage
24 V
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3417031 BALLUFF Inductive sensor Inductive BES026U BES026U shielded NPN (Ø x L) 8 mm x 10.00 mm
User & Safety Instructions
User & Safety Instructions 3417031 BALLUFF Inductive sensor Inductive BES026U BES026U shielded NPN (Ø x L) 8 mm x 10.00 mm
Description
Our standard inductive sensors are Ideal for object detection in the metal field. They are short circuit proof and operate without contact, i.e. they are wear-free and are resistant to contamination. The sensors are available in designs from Ø 3 mm to 80 × 80 mm square size. Particularly economical solutions enable you to use the robust and reliable inductive global sensors. We can also deliver the wide range of these over 500 preferred versions in high quantities worldwide at short notice. Dimensions=Ø 8 x 10 mm, design=M8X1, installed=flush, range=1.5 mm, switched output=NPN NO contact (NO), Switching frequency=3000 Hz, housing material=stainless steel, active surface, material=PBT, connection=cable, 2.00 m, PUR, operating voltage Ub=10...30 VDC, ambient temperature=-25...70 °C, protection class=IP67, approval/conformity=CecULusEACWEEE
