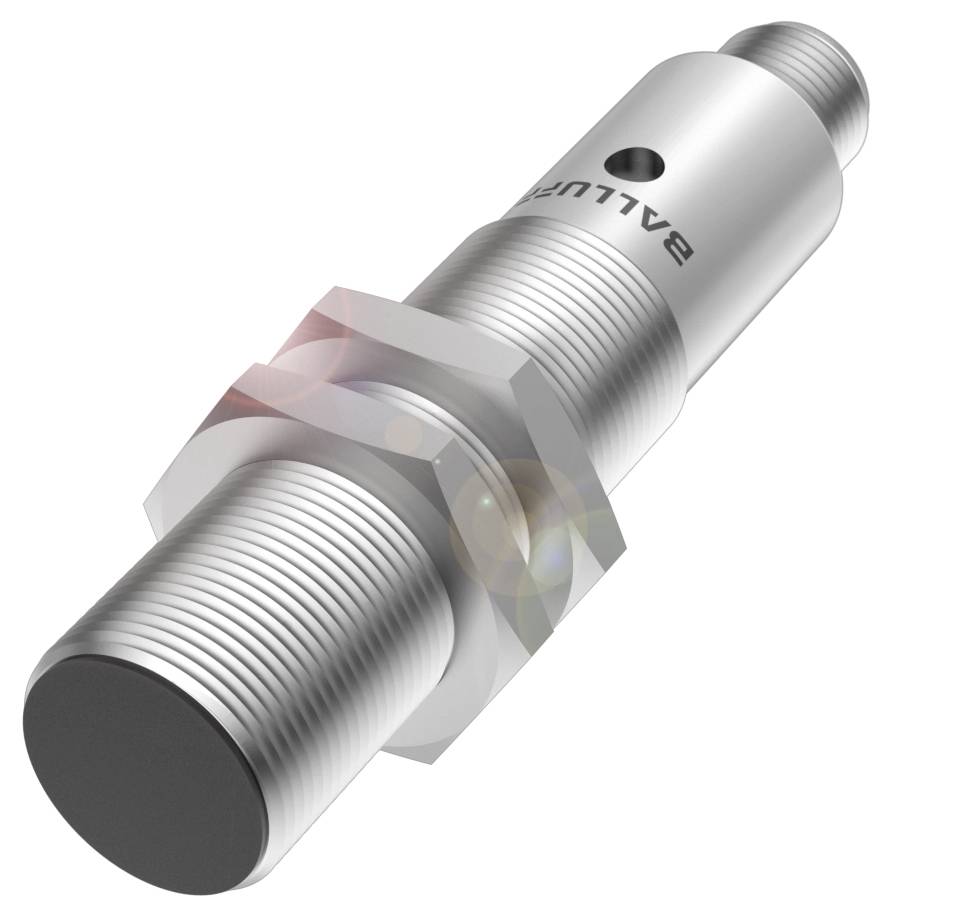

BALLUFF Inductive sensor Inductive BES02EU BES02EU M18 x 1 shielded PNP (Ø x H) 18 mm x 83 m Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Inductive sensor
Max. operating voltage
30.0 V
Contact type
1 maker
Switching distance (max.)
4 mm
Datasheet (PDF)
Highlights & Details
BES02EU Cylindrical design
- Dimensions: Ø 18 x 83 mm
- Design M18x1
- Flush mounting
- Range: 5 mm
- Switching output: PNP NO
Technical specifications
- Main features:Dimensions: Ø 18 x 83 mm
- Active surface, material: PA 12
- Connection: Connector, M12x1 connector, 4-pin
- Design M18x1
- Operating voltage Ub 10...30 VDC
- Flush mounting
- Housing material: Stainless steel
- Range: 5 mm
- Switching output: PNP NO
- Switching frequency 900 Hz
- Protection class: IP68
- Ambient temperature -40...85 °C
- Additional features:
- Dimensions: Ø 18 x 83 mm
- Operating voltage display: No.
- Function display: Yes
- Output resistance Ra: 33.0 kOhm + D
- Rated operating voltage Ue DC 24 V
- Rated operating current Ie 200 mA
- Rated insulation voltage UI 250 V AC
- Rated short-circuit current 100 A.
- Standby delay TV max.: 30 ms
- Operating voltage Ub 10...30 VDC
- Usage category: DC-13
- Minimum operating current Im: 0 mA
- Load capacity max. at Ue 0.8 µF
- Idle current IO max., dammed.: 12 mA
- Idle current IO max., unattenuated: 4 mA
- Residual current l max. 10 µA
- Residual ripple max. (% of Ue): 15%
- Switching frequency 900 Hz
- Protection class: II
- Static voltage drop: 1.5 V
- Connection: M12x1 4-pin connector, A-coded
- Short-circuit protection: Yes
- Reverse polarity protection: Yes
- Exchange possibility protected: Yes
- Guaranteed switching distance of Sa: 4 mm
- Hysteresis H max. (% of Sr): 15.0%
- Rated switching distance Sn: 5 mm
- Real switching distance Sr:5 mm
- Real switching distance Sr, tolerance: ±10 %
- Temperature drift max. (% of Sr): 10%
- Repeatability max. (% of Sr): 5.0%
- MTTF (40 °C) 720 a
- Active surface, material: PA 12
- Housing material Mechanical characteristics: Stainless steel
- Tightening torque 45 Nm
- Size M18x1
- Mounting length 50.00 mm
- Flush mounting: Flush mounting
- Switching output: PNP NO
- Packaging type
Piece
- Product type
Inductive sensor
- Type
BES02EU
- Min. operating voltage
10.0 V
- Max. operating voltage
30.0 V
- Operating voltage
10.0 - 30.0 V
- Contact type
1 maker
- Switching distance (max.)
4 mm
- Outputs
PNP
- Enclosure material
Stainless steel
- Model
Inductive
- Material properties
rust-proof
- Installation type
shielded
- Size
M18 x 1
- Connector
M18
- Min. temperature
-40 °C
- Max. temperature
85 °C
IP68
- Length
83.00 mm
- Height
83 m
- (Ø)
18 mm
- Dim
(Ø x H) 18 mm x 83 m
- Content
1 pc(s)
- Nominal voltage
24 V
- Switching frequency
900 Hz
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3416864 BALLUFF Inductive sensor Inductive BES02EU BES02EU M18 x 1 shielded PNP (Ø x H) 18 mm x 83 m Piece
User & Safety Instructions
User & Safety Instructions 3416864 BALLUFF Inductive sensor Inductive BES02EU BES02EU M18 x 1 shielded PNP (Ø x H) 18 mm x 83 m Piece
Description
Our standard inductive sensors are Ideal for object detection in the metal field. They are short circuit proof and operate without contact, i.e. they are wear-free and are resistant to contamination. The sensors are available in designs from Ø 3 mm to 80 × 80 mm square size. Particularly economical solutions enable you to use the robust and reliable inductive global sensors. We can also deliver the wide range of these over 500 preferred versions in high quantities worldwide at short notice. Dimensions=Ø 18 x 83 mm, design=M18x1, installed=flush, range=5 mm, switched output=PNP NO (NO), Switching frequency=900 Hz, casing material=stainless steel, active surface, material=PA 12, connection=connector, M12x1 plug, 4-pin, operating voltage Ub=10...30 VDC, ambient temperature=-40...85 °C, protection class=IP68, approval/conformity=CecULusEACWEEE
