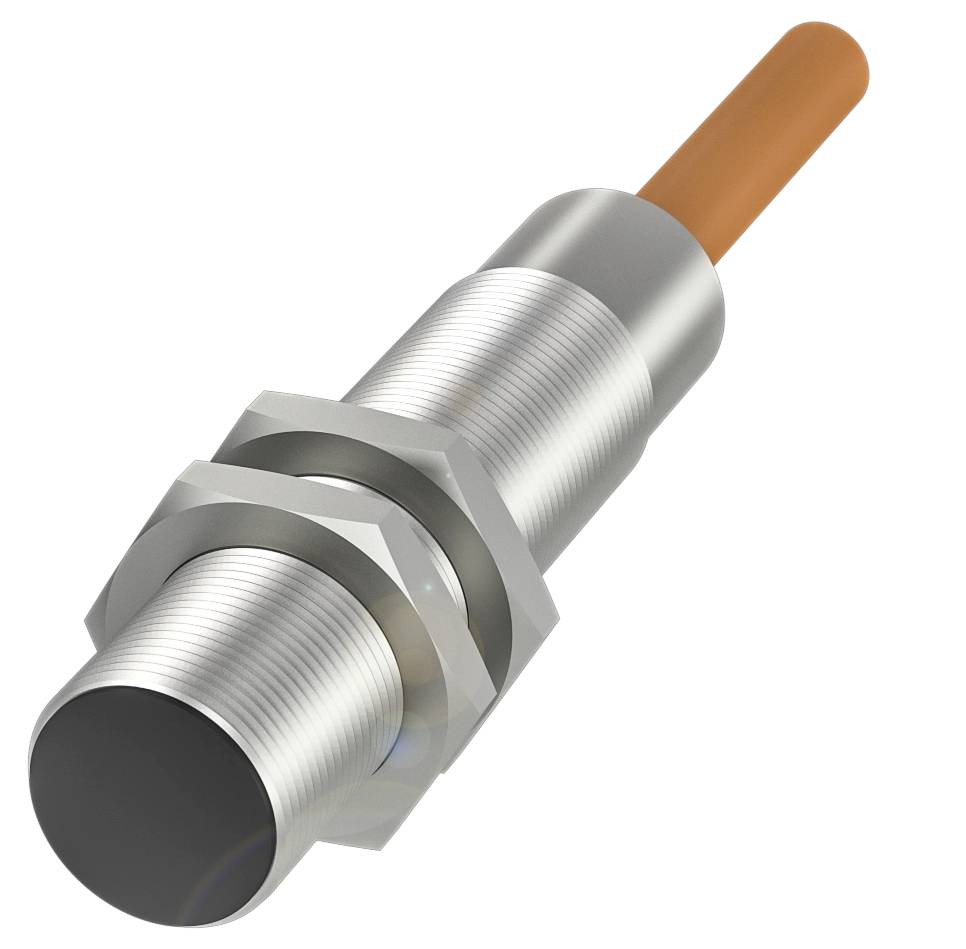

Image similar
BALLUFF Inductive sensor Inductive BES02H4 BES02H4 M18 x 1 shielded PNP (Ø x H) 18 mm x 75.5 m
EAN:
Part number:
Item no:
Product type
Inductive sensor
Max. operating voltage
30.0 V
Switching distance (max.)
4 mm
Outputs
PNP
Model
Inductive
Datasheet (PDF)
Highlights & Details
Balluff BES02H4 Cylindrical design for temperature resistant applications
- Dimensions: Ø 18 x 75.5 mm
- Design M18x1
- Flush mounting
- Range: 5 mm
- Switching output PNP NO/NC
Technical specifications
- Main features:Dimensions: Ø 18 x 75.5 mm
- Active surface, material: PBT
- Connection: Cable, 5.00 m, silicone
- Design M18x1
- Operating voltage Ub 10...30 VDC
- Flush mounting
- Housing material: Nickel-plated brass
- Range: 5 mm
- Switching output PNP NO/NC
- Switching frequency 500 Hz
- Protection class: IP60
- Ambient temperature: -25 to 120 °C
- Additional features:
- Dimensions: Ø 18 x 75.5 mm
- Operating voltage display: No.
- Function display: No.
- Output resistance Ra: 10.0 kOhm + D/10.0 kOhm + D
- Rated operating voltage Ue DC 24 V
- Rated operating current Ie 400 mA
- Rated insulation voltage UI 75 V DC
- Rated short-circuit current 100 A.
- Standby delay TV max.: 10 ms
- Operating voltage Ub 10...30 VDC
- Usage category: DC-13
- Minimum operating current Im: 0 mA
- Load capacity max. at Ue 1 µF
- Idle current IO max., dammed.: 20 mA
- Idle current IO max., unattenuated: 20 mA
- Residual current l max. 100 µA
- Residual ripple max. (% of Ue): 15%
- Switching frequency 500 Hz
- Static voltage drop: 1.5 V
- Short-circuit protection: No.
- Reverse polarity protection: Yes
- Option to switch, protected: No.
- Guaranteed switching distance of Sa: 4 mm
- Hysteresis H max. (% of Sr): 15.0%
- Rated switching distance Sn: 5 mm
- Real switching distance Sr:5 mm
- Real switching distance Sr, tolerance: ±10 %
- Temperature drift max. (% of Sr): 10%
- Repeatability max. (% of Sr): 5.0%
- Active surface, material: PBT
- Tightening torque 25 Nm
- Size M18x1
- Mounting length 60.00 mm
- Flush mounting: Flush mounting
- Switching output PNP NO/NC
- Connection type: Cable, 5.00 m, silicone
- Cable diameter D 7.80 mm
- Cable length 5 m
- Housing material: Nickel-plated brass
- Jacket material: Silicone
- Number of conductors: 4
- Conductor cross-section: 0.75 mm²
- Deviation from basic type: Ta … 120 °C.
- Product type
Inductive sensor
- Type
BES02H4
- Min. operating voltage
10.0 V
- Max. operating voltage
30.0 V
- Operating voltage
10.0 - 30.0 V
- Switching distance (max.)
4 mm
- Outputs
PNP
- Enclosure material
Brass
- Model
Inductive
- Material properties
nickel plated
- Installation type
shielded
- Size
M18 x 1
- Connector
M18
- Cable length
5.00 m
- Min. temperature
-25 °C
- Max. temperature
120 °C
IP60
- Length
75.50 mm
- Height
75.5 m
- (Ø)
18 mm
- Dim
(Ø x H) 18 mm x 75.5 m
- Content
1 pc(s)
- Nominal voltage
24 V
- Switching frequency
500 Hz
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3416901 BALLUFF Inductive sensor Inductive BES02H4 BES02H4 M18 x 1 shielded PNP (Ø x H) 18 mm x 75.5 m
User & Safety Instructions
User & Safety Instructions 3416901 BALLUFF Inductive sensor Inductive BES02H4 BES02H4 M18 x 1 shielded PNP (Ø x H) 18 mm x 75.5 m
Description
Our temperature-resistant inductive sensors BES handle ultra-high temperature ranges up to 230 °C. Depending on the version, the cable construction is also designed for increased temperatures in addition to the housing. Your electronics are fully integrated or can be easily connected with suitable accessories.With different designs, you can easily integrate our ultra high temperature inductive sensors in a variety of situations, thus optimally solving space restrictions. Some variants are also available as high-pressure sensors. This considerably extends the range of applications. Dimensions = Ø 18 x 75.5 mm, design = M18x1, installation = flush, range = 5 mm, switching output = PNP NO/NC (NO/NC), switching frequency = 500 Hz, housing material = brass, nickel-plated, active surface, material = PBT, Connection = cable, 5.00 m, silicone, operating voltage Ub = 10...30 VDC, ambient temperature = -25...120 °C, protection class = IP60, certification/conformity = CE, UKCA, WEEE
