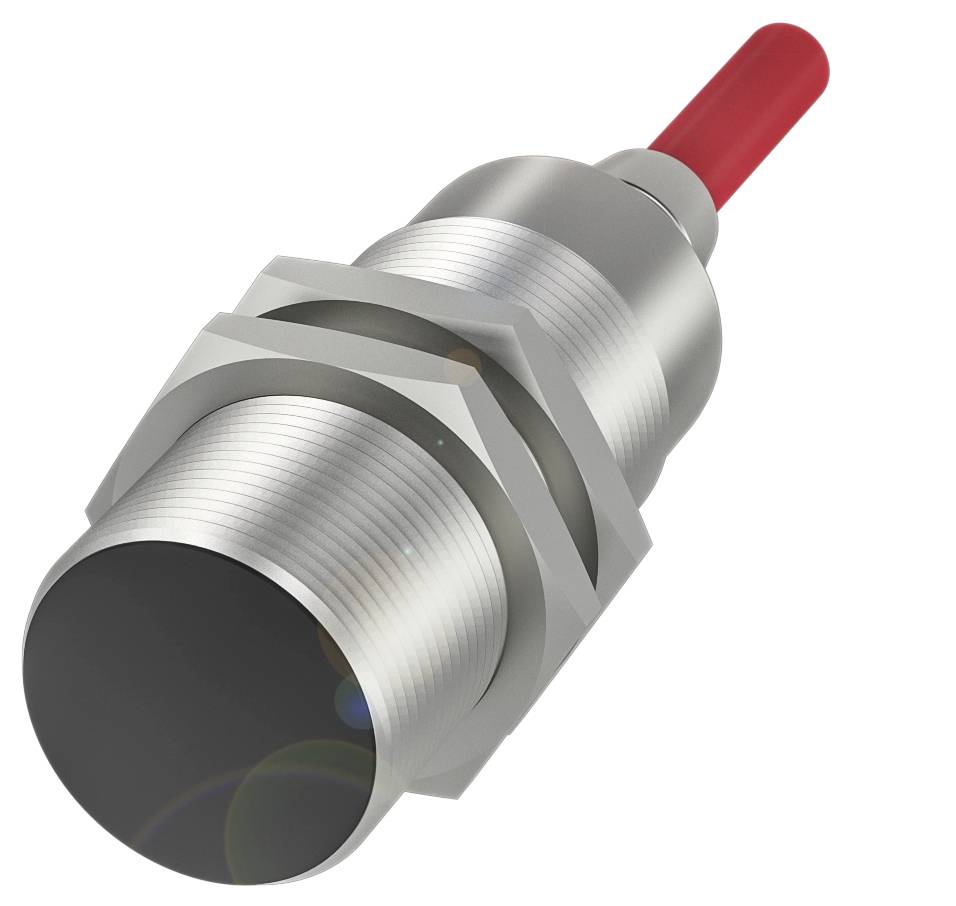

BALLUFF Inductive sensor Inductive BES02HC BES02HC M30 shielded NPN (Ø x H) 30 mm x 87 m
EAN:
Part number:
Item no:
Product type
Inductive sensor
Max. operating voltage
30.0 V
Outputs
NPN
Switching distance (max.)
8 mm
Model
Inductive
Datasheet (PDF)
Highlights & Details
Balluff BES02HC Cylindrical design for temperature resistant applications
- Dimensions: Ø 30 x 87 mm
- Type M30x1.5
- Flush mounting
- Range: 10 mm
- NPN NO/NC switched output
Technical specifications
- Main features:Dimensions: Ø 30 x 87 mm
- Active surface, material: PBT
- Connection: Cable, 9.00 m, silicone
- Type M30x1.5
- Operating voltage Ub 10...30 VDC
- Flush mounting
- Housing material: Nickel-plated brass
- Range: 10 mm
- NPN NO/NC switched output
- Switching frequency 200 Hz
- Protection class IP67
- Ambient temperature: -25 to 120 °C
- Additional features:
- Dimensions: Ø 30 x 87 mm
- Operating voltage display: No.
- Function display: No.
- Output resistance Ra: 4.7 kOhm + D/4.7 kOhm + D
- Rated operating voltage Ue DC 24 V
- Rated operating current Ie 400 mA
- Rated insulation voltage UI 75 V DC
- Rated short-circuit current 100 A.
- Standby delay TV max.: 10 ms
- Operating voltage Ub 10...30 VDC
- Usage category: DC-13
- Minimum operating current Im: 0 mA
- Load capacity max. at Ue 0.15 µF
- Idle current IO max., dammed.: 20 mA
- Idle current IO max., unattenuated: 20 mA
- Residual current l max. 80 µA
- Residual ripple max. (% of Ue): 15%
- Switching frequency 200 Hz
- Static voltage drop: 1.5 V
- Short-circuit protection: No.
- Reverse polarity protection: Yes
- Exchange possibility protected: Yes
- Guaranteed switching distance of Sa: 8 mm
- Hysteresis H max. (% of Sr): 15.0%
- Rated switching distance Sn: 10 mm
- Real switching distance Sr:10 mm
- Real switching distance Sr, tolerance: ±10 %
- Temperature drift max. (% of Sr): 10%
- Repeatability max. (% of Sr): 5.0%
- MTTF (40 °C) 400 a
- Active surface, material: PBT
- Tightening torque 70 Nm
- Size M30x1.5
- Mounting length 55.00 mm
- Flush mounting: Flush mounting
- NPN NO/NC switched output
- Connection type: Cable, 9.00 m, silicone
- Cable diameter D 8.00 mm
- Cable length 9 m
- Housing material: Nickel-plated brass
- Jacket material: Silicone
- EN 60068-2-27, shock: Half sine, 30 gn, 11 ms
- EN 60068-2-6, vibration:55 Hz, amplitude 1 mm, 3x30 min.
- IP67, IP60 at cable outlet
- Ambient temperature: -25 to 120 °C
- Pollution level 3
- Number of conductors: 4
- Conductor cross-section: 0.75 mm²
- Deviation from basic type: Ta, cable
- Product type
Inductive sensor
- Type
BES02HC
- Min. operating voltage
10.0 V
- Max. operating voltage
30.0 V
- Operating voltage
10.0 - 30.0 V
- Outputs
NPN
- Cable length
9.00 m
- Switching distance (max.)
8 mm
- Switching frequency
200 Hz
- Model
Inductive
- Connector
Cable
- Installation type
shielded
- Size
M30
- Material properties
nickel plated
- Enclosure material
Brass
- Contact type
Antivalent
IP67
- Min. temperature
-25 °C
- Max. temperature
120 °C
- Length
87.00 mm
- Height
87 m
- (Ø)
30 mm
- Dim
(Ø x H) 30 mm x 87 m
- Nominal voltage
24 V
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3416928 BALLUFF Inductive sensor Inductive BES02HC BES02HC M30 shielded NPN (Ø x H) 30 mm x 87 m
User & Safety Instructions
User & Safety Instructions 3416928 BALLUFF Inductive sensor Inductive BES02HC BES02HC M30 shielded NPN (Ø x H) 30 mm x 87 m
Description
Our temperature-resistant inductive sensors BES handle ultra-high temperature ranges up to 230 °C. Depending on the version, the cable construction is also designed for increased temperatures in addition to the housing. Your electronics are fully integrated or can be easily connected with suitable accessories.With different designs, you can easily integrate our ultra high temperature inductive sensors in a variety of situations, thus optimally solving space restrictions. Some variants are also available as high-pressure sensors. This considerably extends the range of applications. Dimensions = Ø 30 x 87 mm, design = M30x 1.5, installation = flush, range = 10 mm, switch output = NPN NO/NC (NO/NC), switching frequency = 200 Hz, housing material = brass, nickel-plated, active surface, material = PBT, Connection = cable, 2.00 m, silicone, operating voltage Ub = 10...30 VDC, ambient temperature = -25...120 °C, protection class = IP67, certification/conformity = CE, UKCA, WEEE
