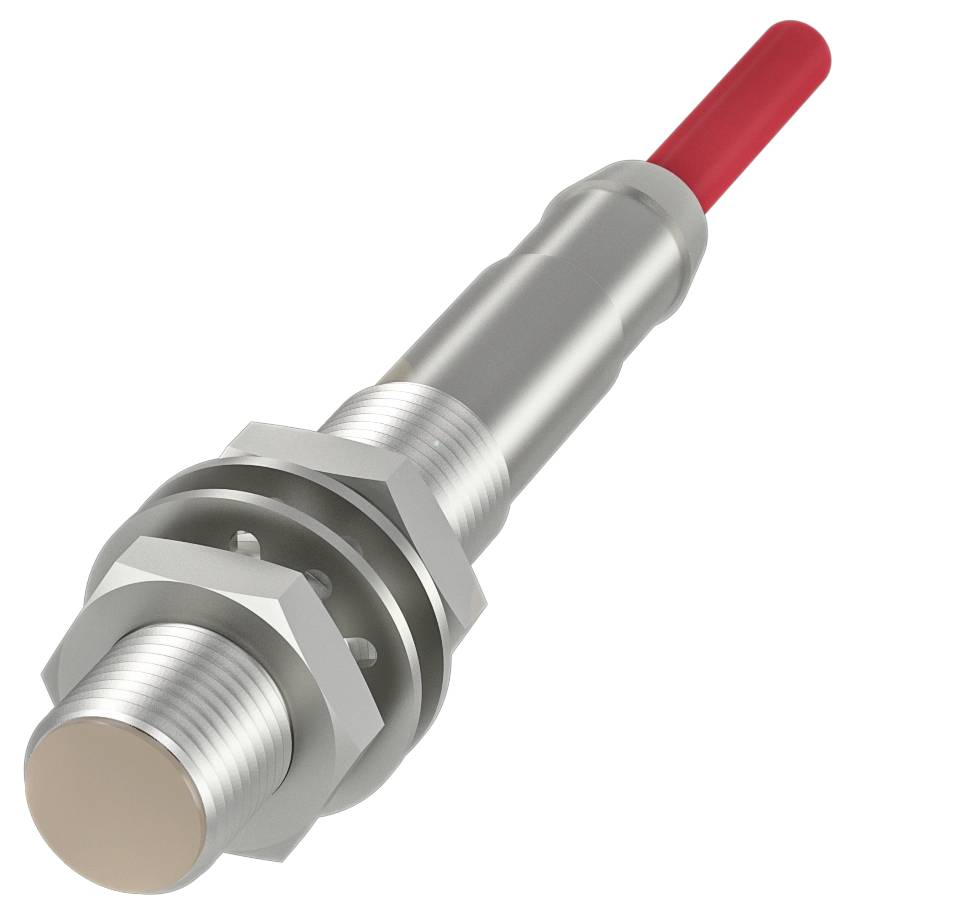

BALLUFF Inductive sensor Inductive BES02HW BES02HW M12 shielded PNP (Ø x L) 12 mm x 75.00 mm
EAN:
Part number:
Item no:
Product type
Inductive sensor
Max. operating voltage
30.0 V
Outputs
PNP
Switching distance (max.)
1.6 mm
Model
Inductive
Datasheet (PDF)
Highlights & Details
Balluff BES02HW Cylindrical design for temperature resistant applications
- Dimensions: Ø 12 x 75 mm
- Design M12x1
- Flush mounting
- Range: 2 mm
- Switching output: PNP NO
Technical specifications
- Main features:Dimensions: Ø 12 x 75 mm
- Active surface, material: PEEK
- Connection: Cable, 5.00 m, silicone
- Design M12x1
- Operating voltage Ub 10...30 VDC
- Flush mounting
- Housing material: Nickel-plated brass
- Range: 2 mm
- Switching output: PNP NO
- Switching frequency 1000 Hz
- Protection class: IP68
- Ambient temperature: -25 to 120 °C
- Additional features:
- Dimensions: Ø 12 x 75 mm
- Operating voltage display: No.
- Function display: No.
- Output resistance Ra: 2.2 kOhm + D
- Rated operating voltage Ue DC 24 V
- Rated operating current Ie 200 mA
- Rated insulation voltage UI 75 V DC
- Rated short-circuit current 100 A.
- Standby delay TV max.: 10 ms
- Operating voltage Ub 10...30 VDC
- Usage category: DC-13
- Minimum operating current Im: 0 mA
- Load capacity max. at Ue 1 µF
- Idle current IO max., dammed.: 25 mA
- Idle current IO max., unattenuated: 12 mA
- Residual current l max. 80 µA
- Residual ripple max. (% of Ue): 15%
- Switching frequency 1000 Hz
- Static voltage drop: 1.8 V
- Short-circuit protection: No.
- Reverse polarity protection: Yes
- Option to switch, protected: No.
- Guaranteed switching distance of Sa: 1.6 mm
- Hysteresis H max. (% of Sr): 15.0%
- Rated switching distance Sn: 2 mm
- Real switching distance Sr:2 mm
- Real switching distance Sr, tolerance: ±10 %
- Temperature drift max. (% of Sr): 10%
- Repeatability max. (% of Sr): 5.0%
- MTTF (40 °C) 595 a
- Active surface, material: PEEK
- Tightening torque 10 Nm
- Size M12x1
- Mounting length 40.50 mm
- Flush mounting: Flush mounting
- Switching output: PNP NO
- Connection type: Cable, 5.00 m, silicone
- Cable diameter D 6.70 mm
- Cable length 5 m
- Housing material: Nickel-plated brass
- Jacket material: Silicone
- EN 60068-2-27, shock: Half sine, 30 gn, 11 ms
- EN 60068-2-6, vibration:55 Hz, amplitude 1 mm, 3x30 min.
- Protection class IP68, IP60 at cable outlet
- Ambient temperature: -25 to 120 °C
- Pollution level 3
- Number of conductors: 3
- Conductor cross-section: 0.50 mm²
- Deviation from basic type: KA, active Fl. PAI, pressure, Ta
- Product type
Inductive sensor
- Type
BES02HW
- Min. operating voltage
10.0 V
- Max. operating voltage
30.0 V
- Operating voltage
10.0 - 30.0 V
- Outputs
PNP
- Cable length
5.00 m
- Switching distance (max.)
1.6 mm
- Switching frequency
1000 Hz
- Model
Inductive
- Connector
M12
- Installation type
shielded
- Size
M12
- Material properties
nickel plated
- Enclosure material
Brass
IP68
- Min. temperature
-25 °C
- Max. temperature
120 °C
- Length
75.00 mm
- (Ø)
12 mm
- Dim
(Ø x L) 12 mm x 75.00 mm
- Nominal voltage
24 V
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3417005 BALLUFF Inductive sensor Inductive BES02HW BES02HW M12 shielded PNP (Ø x L) 12 mm x 75.00 mm
User & Safety Instructions
User & Safety Instructions 3417005 BALLUFF Inductive sensor Inductive BES02HW BES02HW M12 shielded PNP (Ø x L) 12 mm x 75.00 mm
Description
Our temperature-resistant sensors are designed for temperatures up to 230 °C: Both the housing and the cable construction are optimized for increased temperatures. The electronics are completely integrated Some variants are also available as high pressure sensors, WAS makes the use even more flexible. Inductive sensor, Ø 12 x 75 mm, cable, NO, nominal switching distance Sn=2 mm, flush, Housing material=brass, active surface, material=PEEK
