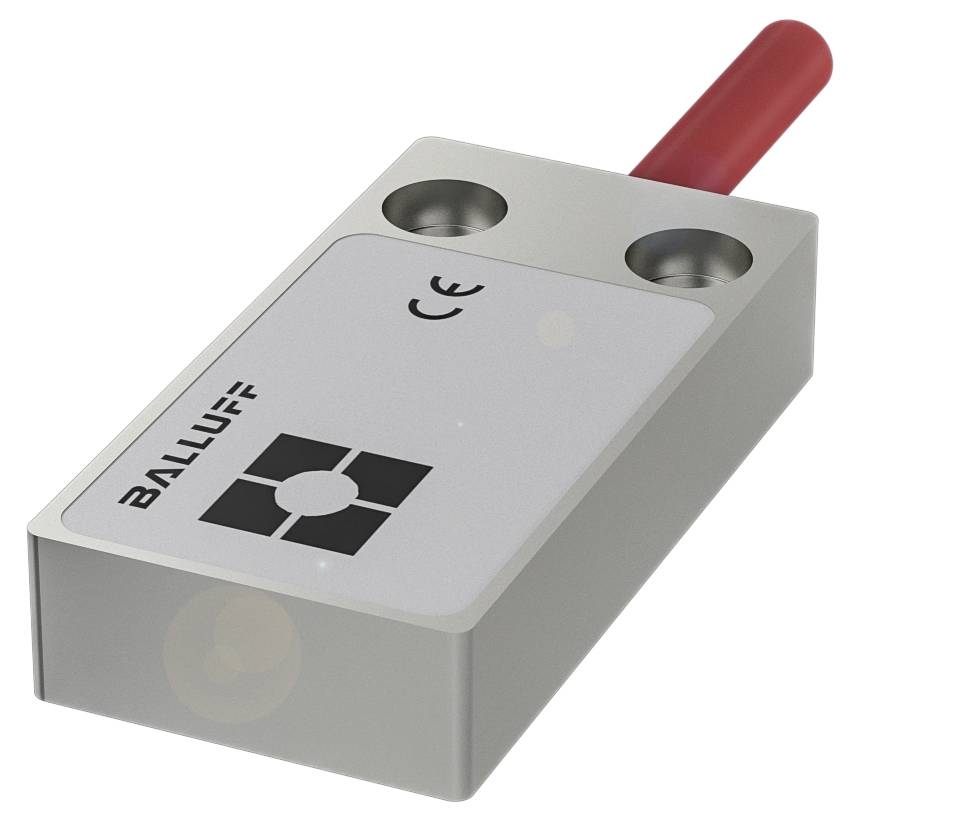

BALLUFF Inductive sensor Inductive BES02J1 BES02J1 shielded PNP (Ø x H) 3 m x 25.00 mm
EAN:
Part number:
Item no:
Product type
Inductive sensor
Max. operating voltage
26.4 V
Contact type
1 maker
Switching distance (max.)
4 mm
Outputs
PNP
Datasheet (PDF)
Highlights & Details
Balluff BES02J1 Inductive Proximity Switches
- Dimensions 50 x 25 x 10 mm
- Design:50x25-10
- Flush mounting
- Range: 5 mm
- Switching output: PNP NO
Technical specifications
- Main features:Dimension 50 x 25 x 10 mm
- Active surface, material: PBT
- Connection: Cable, 5.00 m, silicone
- Design:50x25-10
- Operating voltage Ub 21.6...26.4 VDC
- Flush mounting
- Aluminium casing material
- Range: 5 mm
- Switching output: PNP NO
- Switching frequency 500 Hz
- Protection class IP65, IP60 at the cable outlet
- Ambient temperature: -25 to 100 °C
- Additional features:
- Dimensions 50 x 25 x 10 mm
- Operating voltage display: No.
- Function display: No.
- Output resistance Ra: 4.7 kOhm + D
- Rated operating voltage Ue DC 24 V
- Rated operating current Ie 25 mA
- Rated insulation voltage UI 75 V DC
- Rated short-circuit current 100 A.
- Standby delay TV max.: 10 ms
- Operating voltage Ub 21.6...26.4 VDC
- Usage category: DC-13
- Minimum operating current Im: 0 mA
- Load capacity max. at Ue 0.15 µF
- Idle current IO max., dammed.: 25 mA
- Idle current IO max., unattenuated: 8 mA
- Residual current l max. 80 µA
- Residual ripple max. (% of Ue): 15%
- Switching frequency 500 Hz
- Static voltage drop: 1.5 V
- Short-circuit protection: Yes
- Reverse polarity protection: Yes
- Exchange possibility protected: Yes
- Guaranteed switching distance of Sa: 4 mm
- Hysteresis H max. (% of Sr): 15.0%
- Rated switching distance Sn: 5 mm
- Real switching distance Sr:5 mm
- Real switching distance Sr, tolerance: ±10 %
- Temperature drift max. (% of Sr): 10%
- Repeatability max. (% of Sr): 5.0%
- MTTF (40 °C) 930 a
- Active surface, material: PBT
- Size 50x25x10
- Flush mounting: Flush mounting
- Switching output: PNP NO
- Connection type: Cable, 5.00 m, silicone
- Cable diameter D 7.00 mm
- Cable length 5 m
- Aluminium casing material
- Jacket material: Silicone
- EN 60068-2-27, shock: Half sine, 30 gn, 11 ms
- EN 60068-2-6, vibration:55 Hz, amplitude 1 mm, 3x30 min.
- Protection class IP65, IP60 at the cable outlet
- Ambient temperature: -25 to 100 °C
- Pollution level 3
- Number of conductors: 3
- Conductor cross-section: 0.75 mm²
- Deviation from basic type: Ta
- Product type
Inductive sensor
- Type
BES02J1
- Min. operating voltage
21.6 V
- Max. operating voltage
26.4 V
- Operating voltage
21.6 - 26.4 V
- Contact type
1 maker
- Switching distance (max.)
4 mm
- Outputs
PNP
- Enclosure material
Aluminium
- Model
Inductive
- Installation type
shielded
- Connector
Cable
- Cable length
5.00 m
- Min. temperature
-25 °C
- Max. temperature
100 °C
IP65
- Length
10.00 mm
- Width
50.00 mm
- Height
25.00 mm
- (Ø)
3 m
- Dim
(Ø x H) 3 m x 25.00 mm
- Content
1 pc(s)
- Nominal voltage
24 V
- Switching frequency
500 Hz
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3417003 BALLUFF Inductive sensor Inductive BES02J1 BES02J1 shielded PNP (Ø x H) 3 m x 25.00 mm
User & Safety Instructions
User & Safety Instructions 3417003 BALLUFF Inductive sensor Inductive BES02J1 BES02J1 shielded PNP (Ø x H) 3 m x 25.00 mm
Description
Our standard inductive sensors are Ideal for object detection in the metal field. They are short circuit proof and operate without contact, i.e. they are wear-free and are resistant to contamination. The sensors are available in designs from Ø 3 mm to 80 × 80 mm square size. Particularly economical solutions enable you to use the robust and reliable inductive global sensors. We can also deliver the wide range of these over 500 preferred versions in high quantities worldwide at short notice. Inductive sensor, 50 x 25 x 10 mm, cable, NO, nominal switching distance Sn=5 mm, flush, Housing material=aluminum, active surface, material=PBT
