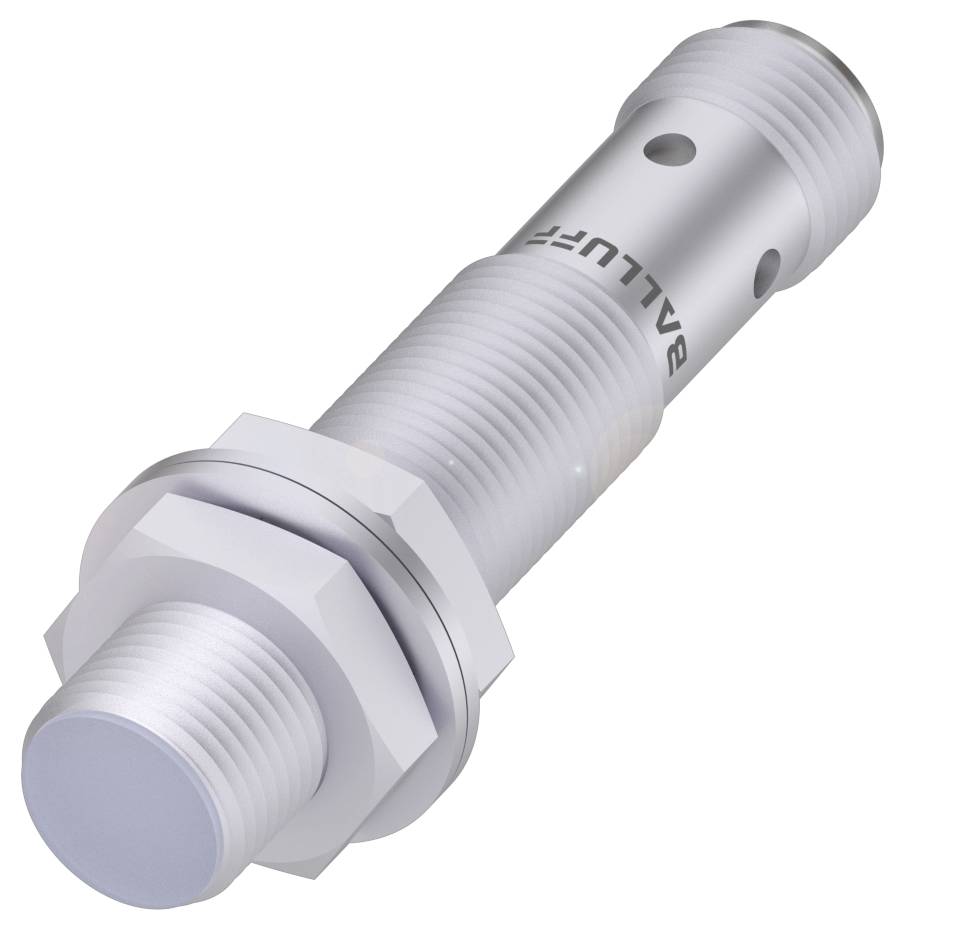

BALLUFF Inductive sensor Inductive BES02J4 BES02J4 M12 shielded PNP (Ø x L) 12 mm x 61.00 mm
EAN:
Part number:
Item no:
Product type
Inductive sensor
Max. operating voltage
30.0 V
Contact type
1 PNP
Switching distance (max.)
1.6 mm
Outputs
PNP
Datasheet (PDF)
Highlights & Details
Balluff BES02J4 Cylindrical design for magnetic field-resistant applications
- Dimensions: Ø 12 x 61 mm
- Design M12x1
- Flush mounting
- Range: 2 mm
- Switching output PNP NO/NC
Technical specifications
- Main features:Dimensions: Ø 12 x 61 mm
- Active surface, material: PTFE
- Connection: Connector, M12x1 connector, 4-pin
- Design M12x1
- Operating voltage Ub 10...30 VDC
- Flush mounting
- Housing material: Stainless steel, coated, PTFE
- Magnetic field-proof: Magnetic field (AC/DC)
- Range: 2 mm
- Switching output PNP NO/NC
- Switching frequency 1000 Hz
- Protection class IP67
- Ambient temperature -20...100 °C
- Additional features:
- Dimensions: Ø 12 x 61 mm
- Operating voltage display: No.
- Function display: Yes
- Output resistance Ra: 2.2 kOhm + D + LED/4.7 kOhm + D
- Rated operating voltage Ue DC 24 V
- Rated operating current Ie 200 mA
- Rated insulation voltage UI 75 V DC
- Rated short-circuit current 100 A.
- Standby delay TV max.: 60 ms
- Operating voltage Ub 10...30 VDC
- Usage category: DC-13
- Minimum operating current Im: 0 mA
- Load capacity max. at Ue 1 µF
- Idle current IO max., dammed.: 15 mA
- Idle current IO max., unattenuated: 32 mA
- Residual current l max. 80 µA
- Residual ripple max. (% of Ue): 15%
- Switching frequency 1000 Hz
- Static voltage drop: 2.5 V
- Connection: M12x1 4-pin connector, A-coded
- Short-circuit protection: Yes
- Reverse polarity protection: Yes
- Exchange possibility protected: Yes
- Guaranteed switching distance of Sa: 1.6 mm
- Hysteresis H max. (% of Sr): 15.0%
- Rated switching distance Sn: 2 mm
- Real switching distance Sr:2 mm
- Real switching distance Sr, tolerance: ±10 %
- Temperature drift max. (% of Sr): 10%
- Repeatability max. (% of Sr): 5.0%
- MTTF (40 °C) 1015 a
- Active surface, material: PTFE
- Tightening torque 8 Nm
- Size M12x1
- Mounting length 40.00 mm
- Flush mounting: Flush mounting
- Switching output PNP NO/NC
- Housing material: Stainless steel, coated, PTFE
- Magnetic field strength, interference field: 100 kA/m
- Deviation from basic type: Ta -20…+100 °C.
- Product type
Inductive sensor
- Type
BES02J4
- Min. operating voltage
10.0 V
- Max. operating voltage
30.0 V
- Operating voltage
10.0 - 30.0 V
- Contact type
1 PNP
- Switching distance (max.)
1.6 mm
- Outputs
PNP
- Enclosure material
Stainless steel
- Model
Inductive
- Installation type
shielded
- Size
M12
- Connector
M12
- Min. temperature
-20 °C
- Max. temperature
100 °C
IP67
- Length
61.00 mm
- (Ø)
12 mm
- Dim
(Ø x L) 12 mm x 61.00 mm
- Content
1 pc(s)
- Nominal voltage
24 V
- Switching frequency
1000 Hz
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3416158 BALLUFF Inductive sensor Inductive BES02J4 BES02J4 M12 shielded PNP (Ø x L) 12 mm x 61.00 mm
User & Safety Instructions
User & Safety Instructions 3416158 BALLUFF Inductive sensor Inductive BES02J4 BES02J4 M12 shielded PNP (Ø x L) 12 mm x 61.00 mm
Description
Increase the availability of your equipment while reducing maintenance and storage costs. Balluff's welding-resistant inductive sensors detect metallic objects, such as steel, aluminum or brass, with an identical switching distance. With its ceramic coating they are also resistant to metal splashes, slags and combustion residues as well as to magnetic fields, which occur with electrical welding currents up to 25 kA. Even abrasive media and cleaning agents cannot harm them. Perfect for use in welding, induction hardening systems and under similar harsh industrial environments. Dimensions = Ø 12 x 61 mm, design = M12x1, installation = flush, range = 2 mm, switching output = PNP NO/NC (NO/NC), switching frequency = 1000 Hz, housing material = stainless steel, coated, PTFE, active surface, Material = PTFE, connection = plug connector, M12x1 plug, 4-pin, operating voltage Ub = 10...30 VDC, ambient temperature = -20...100 °C, magnetic field = magnetic field proof (AC/DC), protection class = IP67, approval/conformity = CE, UKCA, WEEE
