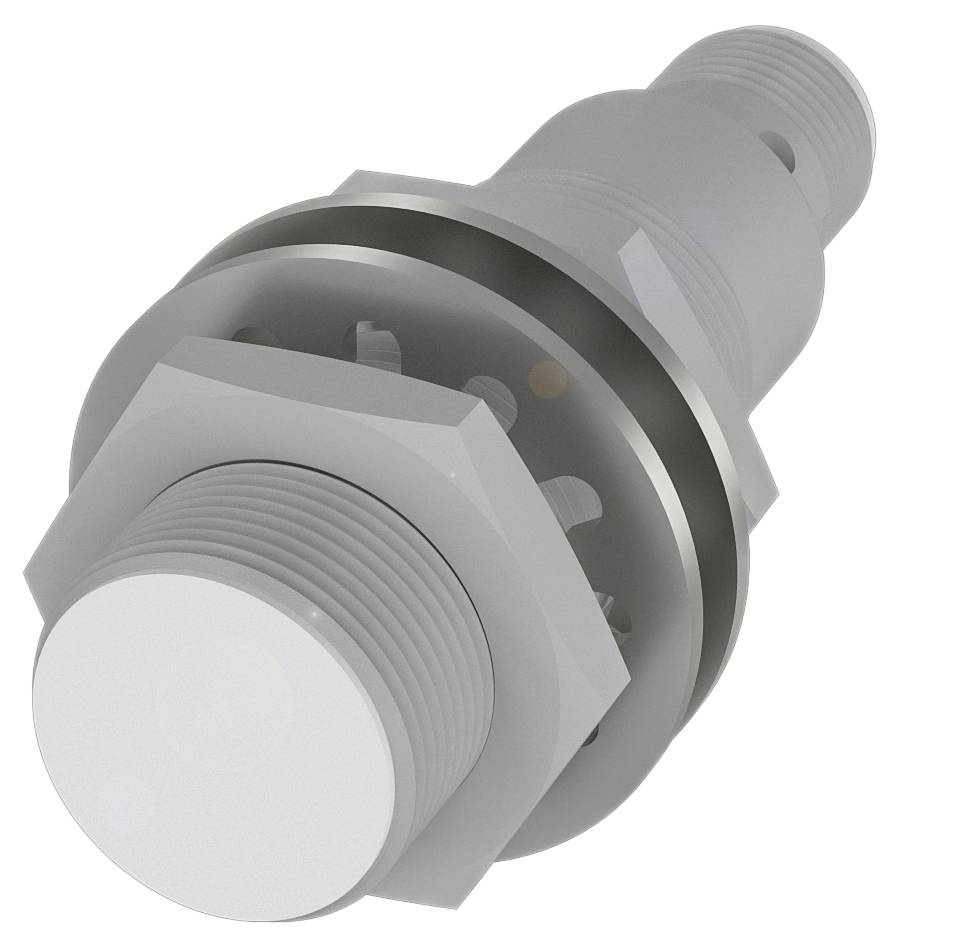

BALLUFF Inductive sensor Inductive BES02J9 BES02J9 M18 x 1 shielded PNP (Ø x H) 18 mm x 65 m Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Inductive sensor
Max. operating voltage
30.0 V
Contact type
1 maker
Switching distance (max.)
4 mm
Datasheet (PDF)
Highlights & Details
Balluff BES02J9 Cylindrical design for magnetic field-resistant applications
- Dimensions: Ø 18 x 65 mm
- Design M18x1
- Flush mounting
- Range: 5 mm
- Switching output: PNP NO
Technical specifications
- Main features:Dimensions: Ø 18 x 65 mm
- Active surface, material: PTFE
- Connection: Connector, M12x1 connector, 4-pin
- Design M18x1
- Operating voltage Ub 10...30 VDC
- Flush mounting
- Housing material: Brass, coated, PTFE
- Magnetic field-proof: Magnetic field (AC/DC)
- Range: 5 mm
- Switching output: PNP NO
- Switching frequency 500 Hz
- Protection class IP67
- Ambient temperature: -25 to 70 °C
- Additional features:
- Dimensions: Ø 18 x 65 mm
- Operating voltage display: No.
- Function display: Yes
- Output resistance Ra: 33.0 kOhm + D
- Rated operating voltage Ue DC 24 V
- Rated operating current Ie 200 mA
- Rated insulation voltage UI 250 V AC
- Rated short-circuit current 100 A.
- Standby delay TV max.: 20 ms
- Operating voltage Ub 10...30 VDC
- Usage category: DC-13
- Minimum operating current Im: 0 mA
- Load capacity max. at Ue 1 µF
- Idle current IO max., dammed.: 10 mA
- Idle current IO max., unattenuated: 2 mA
- Residual current l max. 80 µA
- Residual ripple max. (% of Ue): 10%
- Switching frequency 500 Hz
- Protection class: II
- Static voltage drop: 1.5 V
- Connection: M12x1 4-pin connector, A-coded
- Short-circuit protection: Yes
- Reverse polarity protection: Yes
- Exchange possibility protected: Yes
- Guaranteed switching distance of Sa: 4 mm
- Hysteresis H max. (% of Sr): 15.0%
- Rated switching distance Sn: 5 mm
- Real switching distance Sr:5 mm
- Real switching distance Sr, tolerance: ±10 %
- Temperature drift max. (% of Sr): 10%
- Repeatability max. (% of Sr): 5.0%
- MTTF (40 °C) 775 a
- Active surface, material: PTFE
- Housing material Mechanical characteristics: Brass, coated, PTFE
- Tightening torque 12 Nm
- Size M18x1
- Mounting length 40.00 mm
- Flush mounting: Flush mounting
- Switching output: PNP NO
- Magnetic field strength, interference field: 100 kA/m
- Packaging type
Piece
- Product type
Inductive sensor
- Type
BES02J9
- Min. operating voltage
10.0 V
- Max. operating voltage
30.0 V
- Operating voltage
10.0 - 30.0 V
- Contact type
1 maker
- Switching distance (max.)
4 mm
- Outputs
PNP
- Enclosure material
Brass
- Model
Inductive
- Material properties
teflon-coated
- Installation type
shielded
- Size
M18 x 1
- Connector
M18
- Features
Magnet shielded enclosure
- Min. temperature
-25 °C
- Max. temperature
70 °C
IP67
- Length
65.00 mm
- Height
65 m
- (Ø)
18 mm
- Dim
(Ø x H) 18 mm x 65 m
- Content
1 pc(s)
- Nominal voltage
24 V
- Switching frequency
500 Hz
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3416550 BALLUFF Inductive sensor Inductive BES02J9 BES02J9 M18 x 1 shielded PNP (Ø x H) 18 mm x 65 m Piece
User & Safety Instructions
User & Safety Instructions 3416550 BALLUFF Inductive sensor Inductive BES02J9 BES02J9 M18 x 1 shielded PNP (Ø x H) 18 mm x 65 m Piece
Description
Our magnetic field-resistant inductive sensors BES Ideal are used in the field of strong electromagnetic fields, such as welding plants and induction hardening plants. They are resistant to magnetic fields generated by electrical welding currents of up to 25 kA. With its additional ceramic coating they convince by resistance against metal splashes, slag as well as combustion residues. And perform highest precision work in every area of application. Their extreme ruggedness reduces maintenance costs and thus increases plant availability. Dimensions = Ø 18 x 65 mm, design = M18x1, installation = flush, range = 5 mm, switching output = PNP NO, switching frequency = 500 Hz, housing material = brass, coated, PTFE, active surface, Material = PTFE, connection = plug connector, M12x1 plug, 4-pin, operating voltage Ub = 10...30 VDC, ambient temperature = -25...70 °C, magnetic field = magnetic field proof (AC/DC), protection class = IP67, approval/conformity = cULus, CE, UKCA, WEEE
