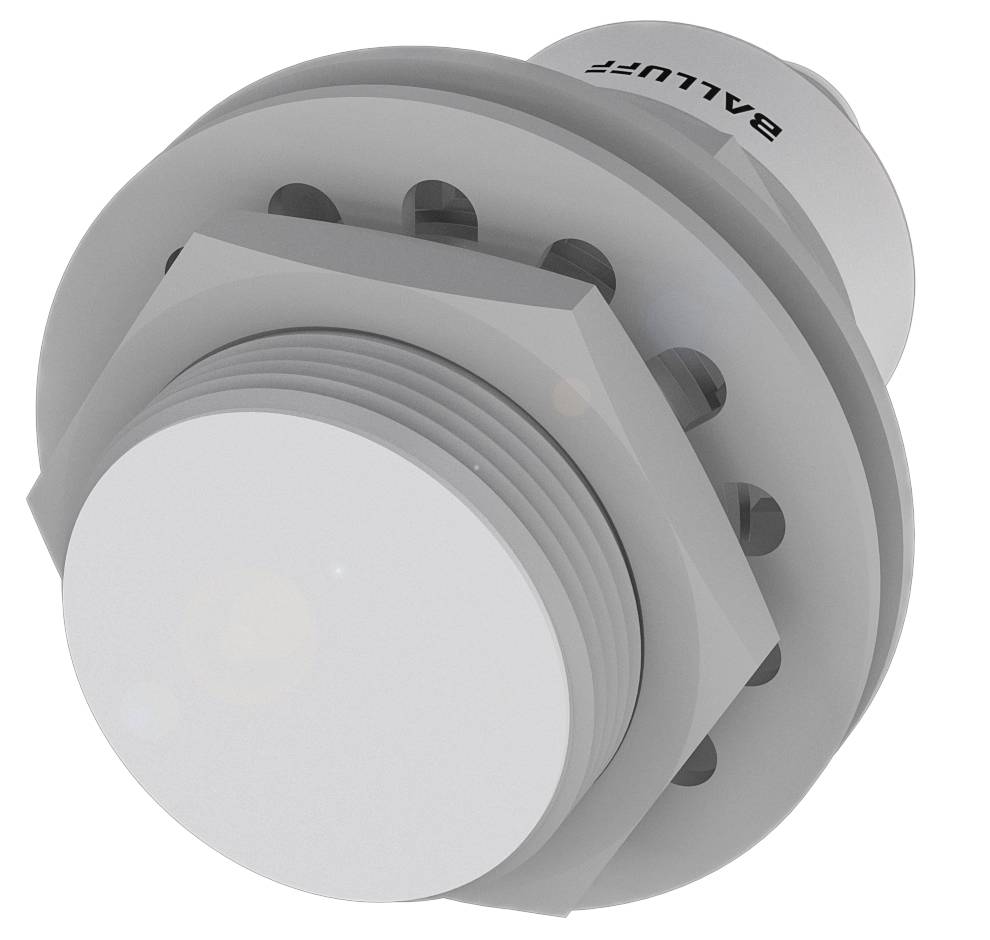

BALLUFF Inductive sensor Inductive BES02JJ BES02JJ M30 shielded PNP (Ø x H) 30 mm x 65 m
EAN:
Part number:
Item no:
Product type
Inductive sensor
Max. operating voltage
30.0 V
Contact type
1 maker
Switching distance (max.)
8.1 mm
Outputs
PNP
Datasheet (PDF)
Highlights & Details
Balluff BES02JJ magnetic field-resistant inductive sensors
- Dimensions: Ø 30 x 65 mm
- Type M30x1.5
- Flush mounting
- Range: 10 mm
- Switching output: PNP NO
Technical specifications
- Main features:Dimensions: Ø 30 x 65 mm
- Active surface, material: PTFE
- Connection: Connector, M12x1 connector, 4-pin
- Type M30x1.5
- Operating voltage Ub 10...30 VDC
- Flush mounting
- Housing material: Brass, coated, PTFE
- Magnetic field-proof: Magnetic field (AC/DC)
- Range: 10 mm
- Switching output: PNP NO
- Switching frequency 100 Hz
- Protection class IP67
- Ambient temperature: -25 to 70 °C
- Additional features:
- Dimensions: Ø 30 x 65 mm
- Operating voltage display: No.
- Function display: Yes
- Output resistance Ra: 33.0 kOhm + D
- Rated operating voltage Ue DC 24 V
- Rated operating current Ie 200 mA
- Rated insulation voltage UI 250 V AC
- Rated short-circuit current 100 A.
- Standby delay TV max.: 10 ms
- Operating voltage Ub 10...30 VDC
- Usage category: DC-13
- Minimum operating current Im: 0 mA
- Load capacity max. at Ue 1 µF
- Idle current IO max., dammed.: 8 mA
- Idle current IO max., unattenuated: 1 mA
- Residual current l max. 80 µA
- Residual ripple max. (% of Ue): 15%
- Switching frequency 100 Hz
- Protection class: II
- Static voltage drop: 1.5 V
- Connection: M12x1 4-pin connector, A-coded
- Short-circuit protection: Yes
- Reverse polarity protection: Yes
- Exchange possibility protected: Yes
- Guaranteed switching distance of Sa: 8.1 mm
- Hysteresis H max. (% of Sr): 15.0%
- Rated switching distance Sn: 10 mm
- Real switching distance Sr:10 mm
- Real switching distance Sr, tolerance: ±10 %
- Temperature drift max. (% of Sr): 10%
- Repeatability max. (% of Sr): 5.0%
- MTTF (40 °C) 775 a
- Active surface, material: PTFE
- Housing material Mechanical characteristics: Brass, coated, PTFE
- Tightening torque 30 Nm
- Size M30x1.5
- Mounting length 40.00 mm
- Flush mounting: Flush mounting
- Switching output: PNP NO
- Magnetic field strength, interference field: 100 kA/m
- Product type
Inductive sensor
- Type
BES02JJ
- Min. operating voltage
10.0 V
- Max. operating voltage
30.0 V
- Operating voltage
10.0 - 30.0 V
- Contact type
1 maker
- Switching distance (max.)
8.1 mm
- Outputs
PNP
- Enclosure material
Brass
- Model
Inductive
- Installation type
shielded
- Size
M30
- Connector
M12 (4-pin)
- Min. temperature
-25 °C
- Max. temperature
70 °C
IP67
- Length
65.00 mm
- Height
65 m
- (Ø)
30 mm
- Dim
(Ø x H) 30 mm x 65 m
- Content
1 pc(s)
- Nominal voltage
24 V
- Switching frequency
100 Hz
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3416989 BALLUFF Inductive sensor Inductive BES02JJ BES02JJ M30 shielded PNP (Ø x H) 30 mm x 65 m
User & Safety Instructions
User & Safety Instructions 3416989 BALLUFF Inductive sensor Inductive BES02JJ BES02JJ M30 shielded PNP (Ø x H) 30 mm x 65 m
Description
Our magnetic field-resistant inductive sensors are Ideal for use in areas of strong electromagnetic fields such as welding systems and induction hardening systems. They are insensitive to magnetic fields that occur with electrical welding currents of up to 25 kA. Dimensions = Ø 30 x 65 mm, design = M301.5, flush-mount = flush-mount, range = 10 mm, switch output = PNP NO (NO), Switching frequency=100 Hz, casing material=brass, surface protection=coated, PTFE, active surface, Material=PTFE, connection=plug connector, M12x1 plug, 4-pin, operating voltage Ub=10...30 VDC, Ambient temperature=-25...70 °C, magnetic field proof=magnetic field proof (AC/DC), protection class=IP67, approval/conformity=cULusCEEACWEEE
