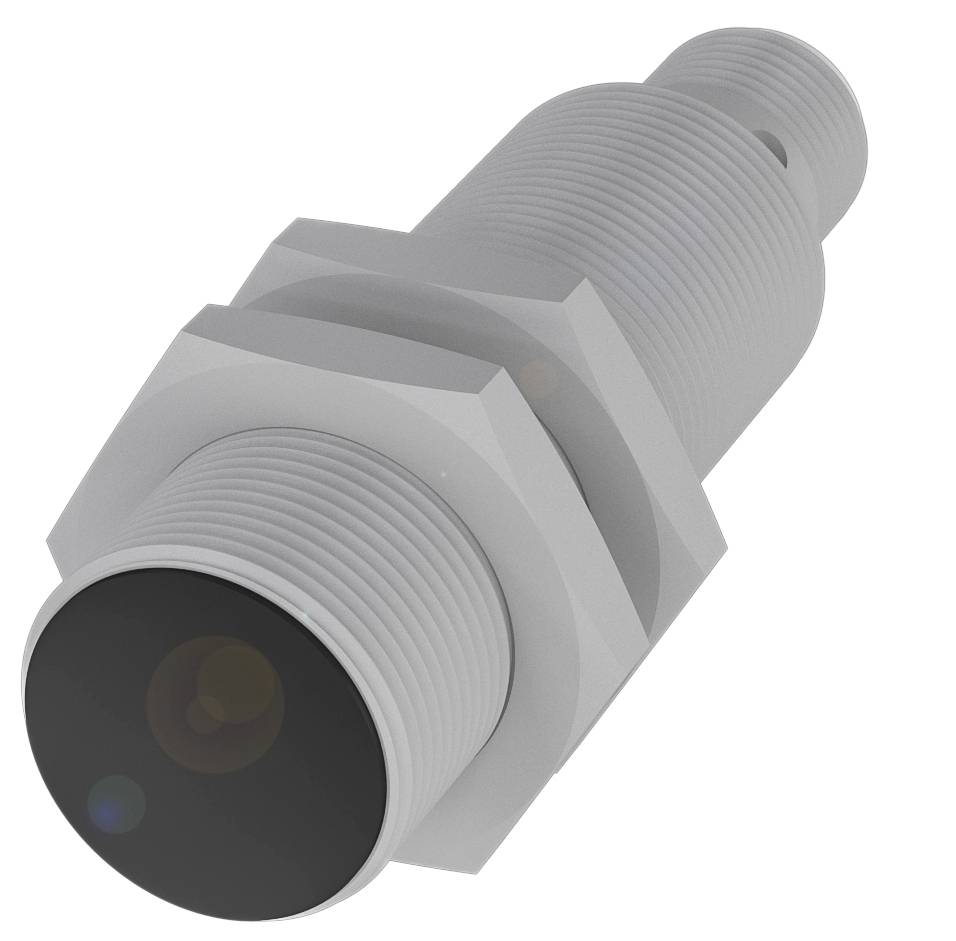

Image similar
BALLUFF Inductive sensor Inductive BES02KC BES02KC M18 x 1 shielded PNP (Ø x L) 18 mm x 65.00 mm Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Inductive sensor
Max. operating voltage
30.0 V
Outputs
PNP
Switching distance (max.)
5.6 mm
Datasheet (PDF)
Highlights & Details
Balluff BES02KC Cylindrical design for magnetic field-resistant applications
- Dimensions: Ø 18 x 65 mm
- Design M18x1
- Flush mounting
- Range: 7 mm
- Switching output: PNP NO
Technical specifications
- Main features:Dimensions: Ø 18 x 65 mm
- Active surface, material: LCP/PTFE
- Connection: Connector, M12x1 connector, 4-pin
- Design M18x1
- Operating voltage Ub 10...30 VDC
- Flush mounting
- Housing material: Brass, coated, PTFE
- Magnetic field-proof: Magnetic field (AC/DC)
- Range: 7 mm
- Switching output: PNP NO
- Switching frequency 50 Hz
- Protection class IP67
- Ambient temperature 5...60 °C
- Additional properties: Sweat-resistant
- Additional features:
- Dimensions: Ø 18 x 65 mm
- Operating voltage display: No.
- Function display: Yes
- Output resistance Ra: 33.0 kOhm + D
- Rated operating voltage Ue DC 24 V
- Rated operating current Ie 200 mA
- Rated insulation voltage UI 250 V AC
- Rated short-circuit current 100 A.
- Standby delay TV max.: 15 ms
- Operating voltage Ub 10...30 VDC
- Usage category: DC-13
- Minimum operating current Im: 0 mA
- Load capacity max. at Ue 0.5 µF
- Idle current IO max., dammed.: 9 mA
- Idle current IO max., unattenuated: 6 mA
- Residual current l max. 20 µA
- Residual ripple max. (% of Ue): 10%
- Switching frequency 50 Hz
- Protection class: II
- Static voltage drop: 2.5 V
- Connection: M12x1 4-pin connector, A-coded
- Short-circuit protection: Yes
- Reverse polarity protection: Yes
- Exchange possibility protected: Yes
- Guaranteed switching distance of Sa: 5.6 mm
- Hysteresis H max. (% of Sr): 20.0%
- Rated switching distance Sn: 7 mm
- Real switching distance Sr:7 mm
- Real switching distance Sr, tolerance: ±10 %
- Temperature drift max. (% of Sr): 15%
- Repeatability max. (% of Sr): 5.0%
- Active surface, material: LCP/PTFE
- Tightening torque 12 Nm
- Size M18x1
- Switching output: PNP NO
- Switching distance indicator: ■■
- Housing material: Brass, coated, PTFE
- EN 60068-2-27, shock: Half sine, 30 gn, 11 ms
- EN 60068-2-6, vibration:55 Hz, amplitude 1 mm, 3x30 min.
- Protection class IP67
- Ambient temperature 5...60 °C
- Pollution level 3
- Additional properties: Sweat-resistant
- Magnetic field strength, interference field: 100 kA/m
- Mounted interface: Flush mounting
- Magnetic field-proof: Magnetic field (AC/DC)
- Packaging type
Piece
- Product type
Inductive sensor
- Type
BES02KC
- Min. operating voltage
10.0 V
- Max. operating voltage
30.0 V
- Operating voltage
10.0 - 30.0 V
- Outputs
PNP
- Switching distance (max.)
5.6 mm
- Switching frequency
50 Hz
- Model
Inductive
- Connector
M18
- Installation type
shielded
- Size
M18 x 1
- Enclosure material
Brass
- Contact type
1 maker
IP67
- Min. temperature
5 °C
- Max. temperature
60 °C
- Length
65.00 mm
- (Ø)
18 mm
- Dim
(Ø x L) 18 mm x 65.00 mm
- Nominal voltage
24 V
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3417519 BALLUFF Inductive sensor Inductive BES02KC BES02KC M18 x 1 shielded PNP (Ø x L) 18 mm x 65.00 mm Piece
User & Safety Instructions
User & Safety Instructions 3417519 BALLUFF Inductive sensor Inductive BES02KC BES02KC M18 x 1 shielded PNP (Ø x L) 18 mm x 65.00 mm Piece
Description
Increase the availability of your equipment while reducing maintenance and storage costs. Balluff's welding-resistant inductive sensors detect metallic objects, such as steel, aluminum or brass, with an identical switching distance. With its ceramic coating they are also resistant to metal splashes, slags and combustion residues as well as to magnetic fields, which occur with electrical welding currents up to 25 kA. Even abrasive media and cleaning agents cannot harm them. Perfect for use in welding, induction hardening systems and under similar harsh industrial environments. Dimensions = Ø 18 x 65 mm, design = M18x1, installation = flush, range = 7 mm, switching output = PNP NO, switching frequency = 50 Hz, housing material = brass, coated, PTFE, active surface, Material = LCP/PTFE, connection = plug-in connector, M12x1 plug, 4-pin, operating voltage Ub = 10...30 VDC, ambient temperature = 5...60 °C, magnetic field = magnetic field proof (AC/DC), protection class = IP67, approval/conformity = CE, UKCA, cULus, WEEE, additional properties = sweat-resistant
