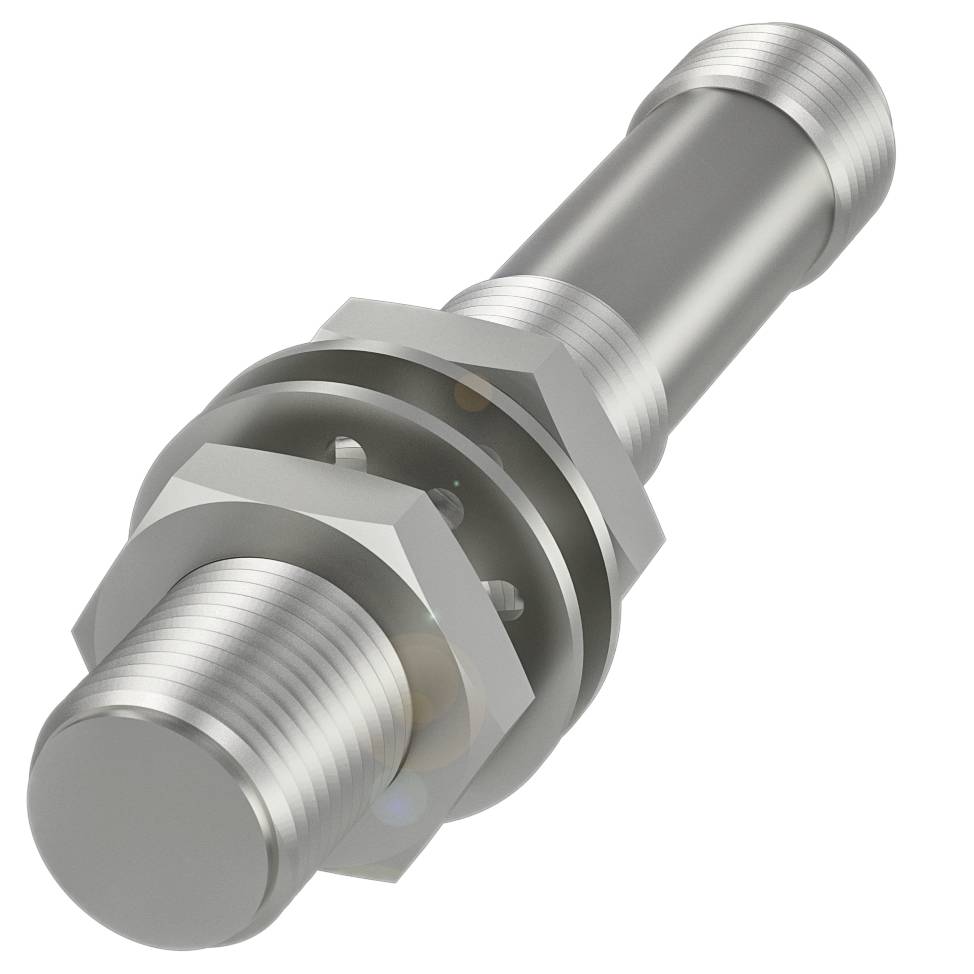

BALLUFF Inductive sensor Inductive BES02M7 BES02M7 M12 shielded PNP (Ø x L) 12 mm x 70 mm
EAN:
Part number:
Item no:
Product type
Inductive sensor
Max. operating voltage
30 V
Contact type
1 maker
Switching distance (max.)
2 mm
Outputs
PNP
Datasheet (PDF)
Highlights & Details
Balluff BES02M7 Inductive Proximity Switches
- Dimensions: Ø 12 x 70 mm
- Design M12x1
- Flush mounting
- Range: 2 mm
- Switching output: PNP NO
Technical specifications
- Main features:Dimensions: Ø 12 x 70 mm
- Connection M12x1, 4-pin
- Design M12x1
- Operating voltage Ub 20...30 VDC
- Flush mounting
- Housing material: Nickel-plated brass
- Range: 2 mm
- Switching output: PNP NO
- Switching frequency 5 Hz
- Ambient temperature: -25 to 70 °C
- Additional features:
- Dimensions: Ø 12 x 70 mm
- Rated operating voltage Ue DC 24 V
- Operating voltage Ub 20...30 VDC
- Usage category: DC-13
- Idle current IO max., dammed.: 25 mA
- Idle current IO max., unattenuated: 10 mA
- Residual ripple max. (% of Ue): 10%
- Switching frequency 5 Hz
- Connection M12x1, 4-pin
- Short-circuit protection: Yes
- Reverse polarity protection: Yes
- Hysteresis H max. (% of Sr): 15%
- Rated switching distance Sn: 2 mm
- Real switching distance Sr:2 mm
- Real switching distance Sr, tolerance: ±10 %
- Temperature drift max. (% of Sr): 10%
- Repeatability max. (% of Sr): 5%
- Size M12x1
- Flush mounting: Flush mounting
- Switching output: PNP NO
- Housing material: Nickel-plated brass
- Ambient temperature: -25 to 70 °C
- Electrical design: 3-/4-wire
- Diagnostic function: Yes
- Connection (power supply IN): M12x1
- Protection class according to DIN 40050 IP67
- Product type
Inductive sensor
- Type
BES02M7
- Min. operating voltage
20 V
- Max. operating voltage
30 V
- Operating voltage
20 - 30 V
- Contact type
1 maker
- Switching distance (max.)
2 mm
- Outputs
PNP
- Enclosure material
Brass
- Model
Inductive
- Material properties
nickel plated
- Installation type
shielded
- Size
M12
- Connector
M12
- Min. temperature
-25 °C
- Max. temperature
70 °C
- Length
70 mm
- (Ø)
12 mm
- Dim
(Ø x L) 12 mm x 70 mm
- Content
1 pc(s)
- Nominal voltage
24 V
- Switching frequency
5 Hz
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3416156 BALLUFF Inductive sensor Inductive BES02M7 BES02M7 M12 shielded PNP (Ø x L) 12 mm x 70 mm
User & Safety Instructions
User & Safety Instructions 3416156 BALLUFF Inductive sensor Inductive BES02M7 BES02M7 M12 shielded PNP (Ø x L) 12 mm x 70 mm
Description
Our inductive standard BES sensors for the detection of electrically conductive metallic objects are robust and reliable. With a wide range of over 500 series, we offer the right inductive sensor for every application. The technology used worldwide has an optimum price-performance ratio and is available in a short time even for high quantities. Dimensions = Ø 12 x 70 mm, design = M12x1, installation = flush, range = 2 mm, switching output = PNP NO, switching frequency = 5 Hz, housing material = brass, nickel plated, connection = M12x1, 4-pole, Operating voltage Ub = 20...30 VDC, ambient temperature = -25...70 °C, approval/conformity = CE, UKCA, cULus, WEEE
